51 44 ... Removing and installing front roofliner trim
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required
NOTE:
For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63)
- 00 9 341
Necessary preliminary tasks:
- Remove complete ceiling light.

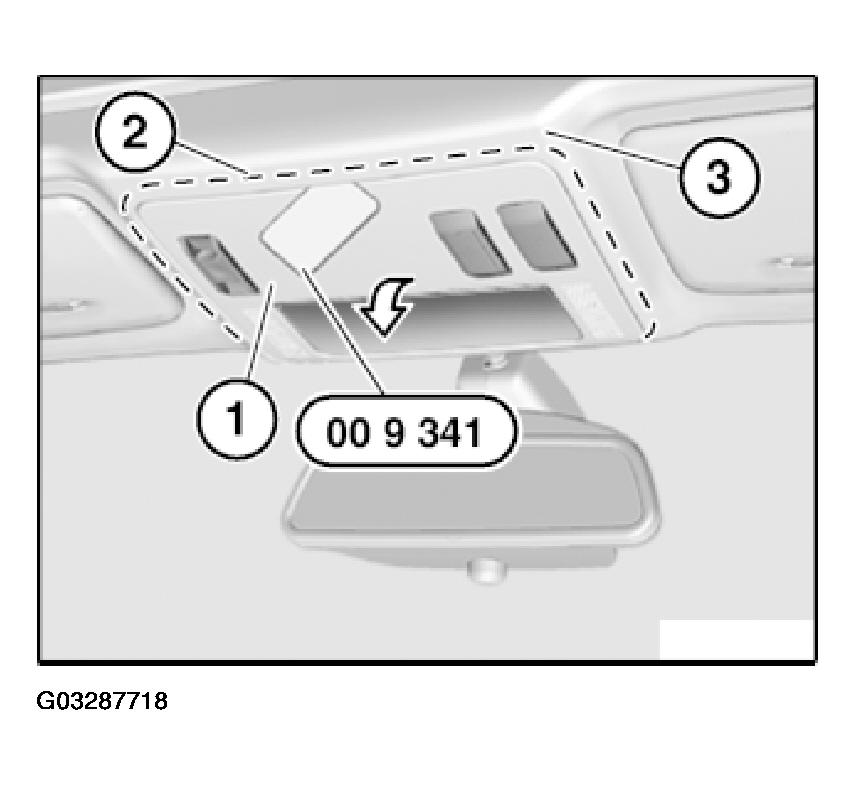

Unclip front roofliner trim (1) with special tool 00 9 341 in area (2).
Feed front roofliner trim (1) in direction of arrow out of moulded roofliner (3).
Unlock associated plug connections and disconnect.
Remove front roofliner trim (1).
Installation:

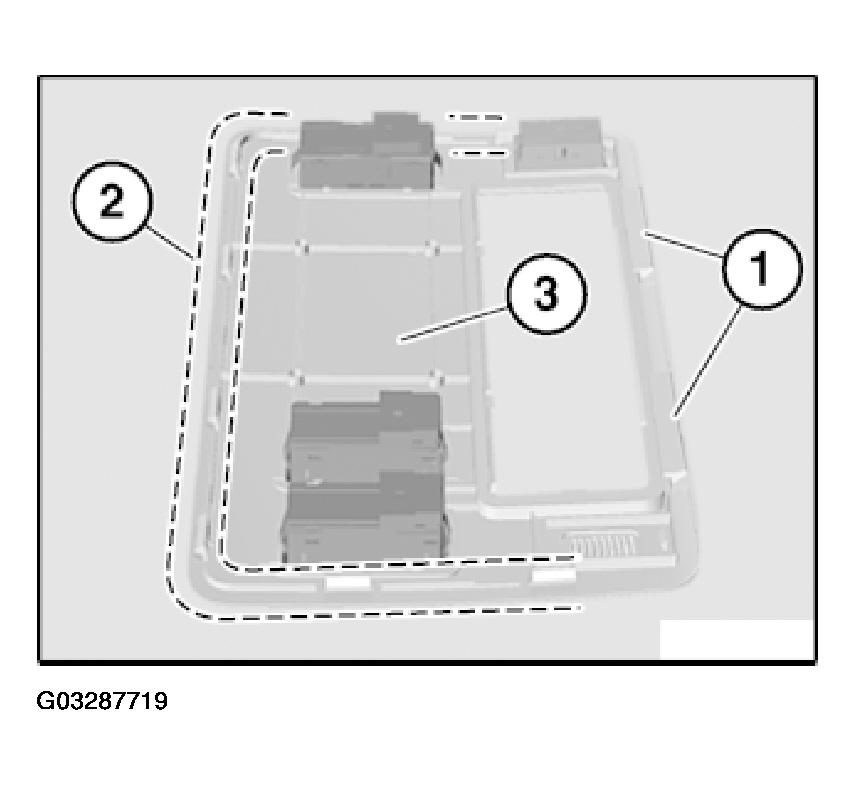

Guides (1) and catches in area (2) must not be damaged.
Make sure front roofliner trim (3) is correctly seated.
