63 99 315 Replacing bulb(s) for left or right rear light (rear turn indicator light)

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights), refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

Remove socket housing for rear light, refer to 63 21 055 REPLACING A SOCKET HOUSING FOR LEFT OR RIGHT REAR LIGHT (ON SIDE PANEL) .

Remove bulb for rear light (1) in direction of arrow from bulb holder (2).

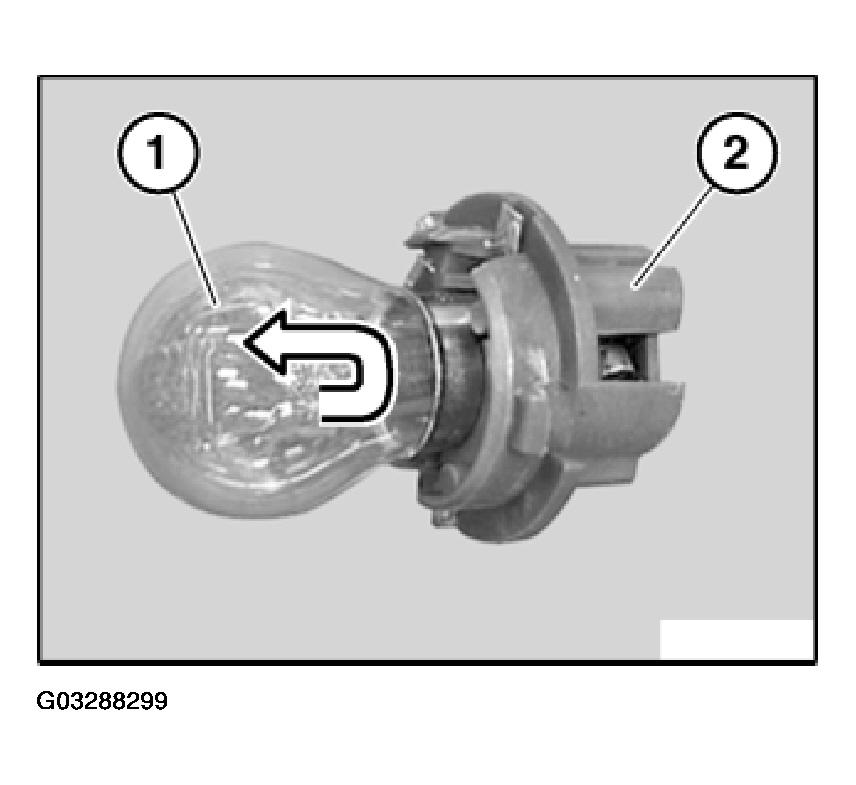

Fig 1: Removing Bulb For Rear Light From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note type of bulb.
