63 21 055 Replacing a socket housing for left or right rear light (on side panel)

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights), refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Fold back covers (1) in direction of arrow and remove.

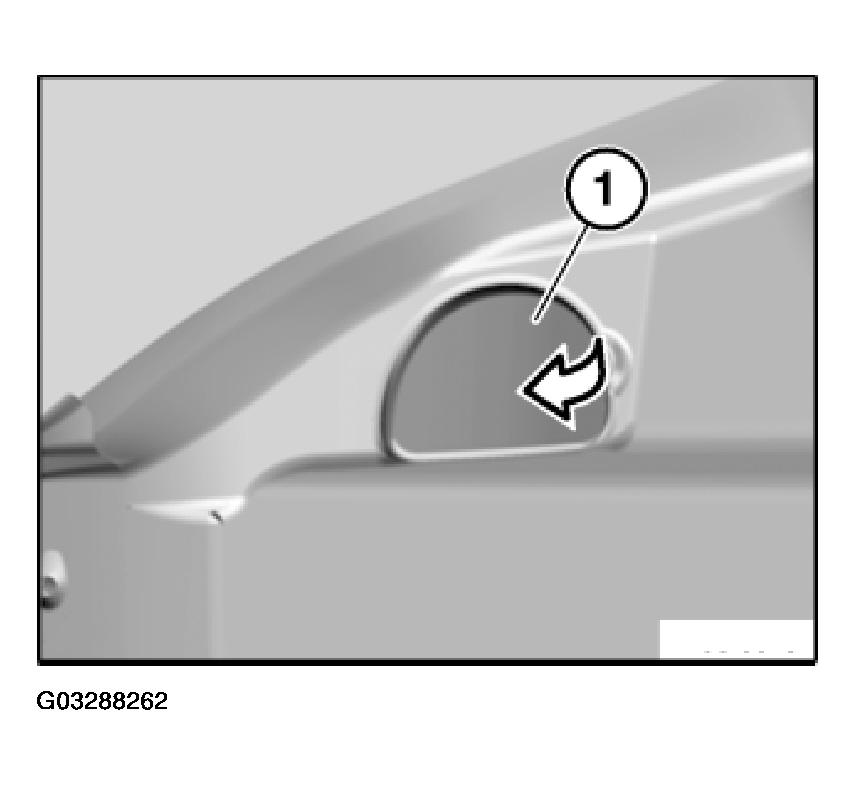

Fig 1: Folding Back Cover And Removing

Courtesy of BMW OF NORTH AMERICA, INC.

Turn socket housing for rear light (1) in direction of arrow and remove from rear light (2).

Cut associated two-core lead with sufficient residual length remaining in vehicle and remove socket housing for rear light (1), refer to 63 21 055 REPLACING A SOCKET HOUSING FOR LEFT OR RIGHT REAR LIGHT (ON SIDE PANEL) .

Installation:

Wiring is carried out with connectors.

If necessary, secure two-core lead against rattling.

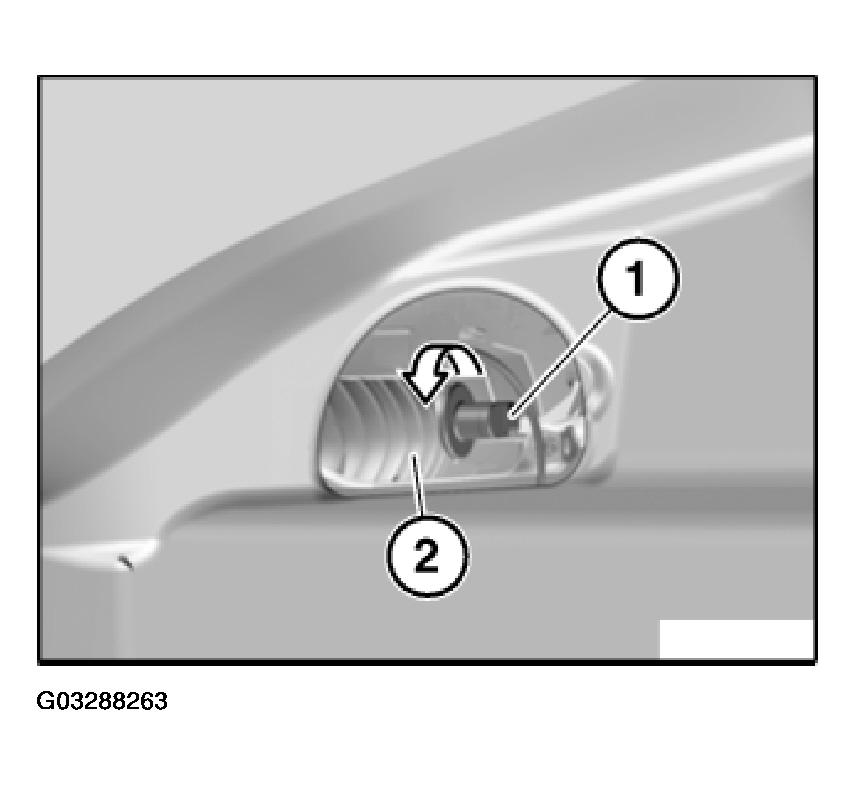

Fig 2: Turning Socket Housing For Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.
