63 99 076 Replacing lamp for left xenon headlight

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights), refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

Remove ignition unit for left xenon headlight, refer to 63 12 870 REPLACING IGNITION UNIT FOR LEFT XENON HEADLIGHT .

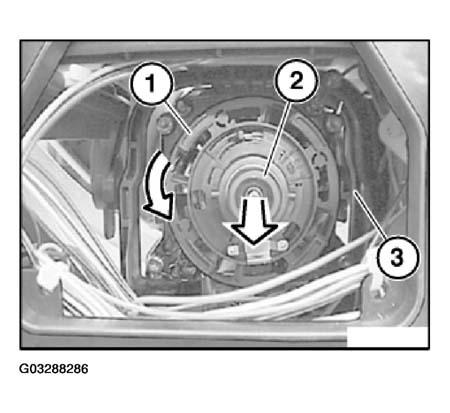

Unlock retaining ring (1) in counterclockwise direction and remove.

Remove bulb for xenon headlight (2) in direction of arrow from headlight (3).

Fig 1: Removing Bulb For Xenon Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert bulb for xenon headlight (2) exactly in headlight (3).

Note type of bulb.

Installation:

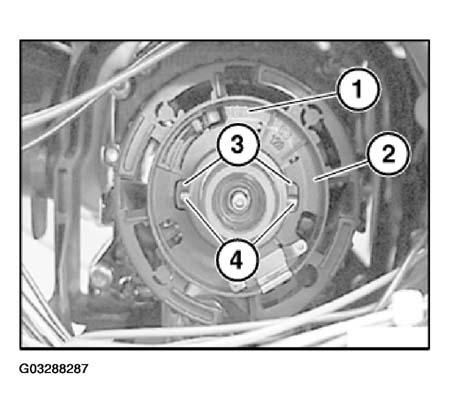

Observe "Top marking" (1).

Fit retaining ring (2) on headlight is such a way that apertures (3) slide over fixtures for ignition unit (4).

Fig 2: Fitting Retaining Ring On Headlight

Courtesy of BMW OF NORTH AMERICA, INC.
