63 12 870 Replacing ignition unit for left xenon headlight

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal. Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

Release screws (1).

Fold down cover (2) and remove front wheel arch trim (3).

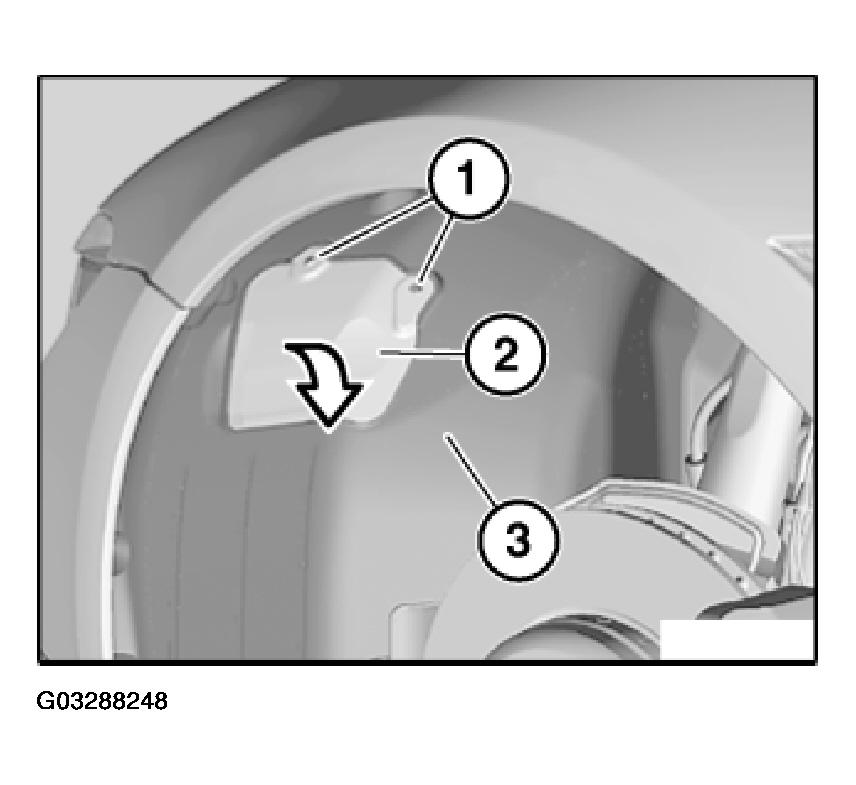

Fig 1: Removing Front Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catch (1) in direction of arrow and fold down cover (2).

Remove cover (2) from headlight (3) and feed out through opening in front wheel arch trim (4).

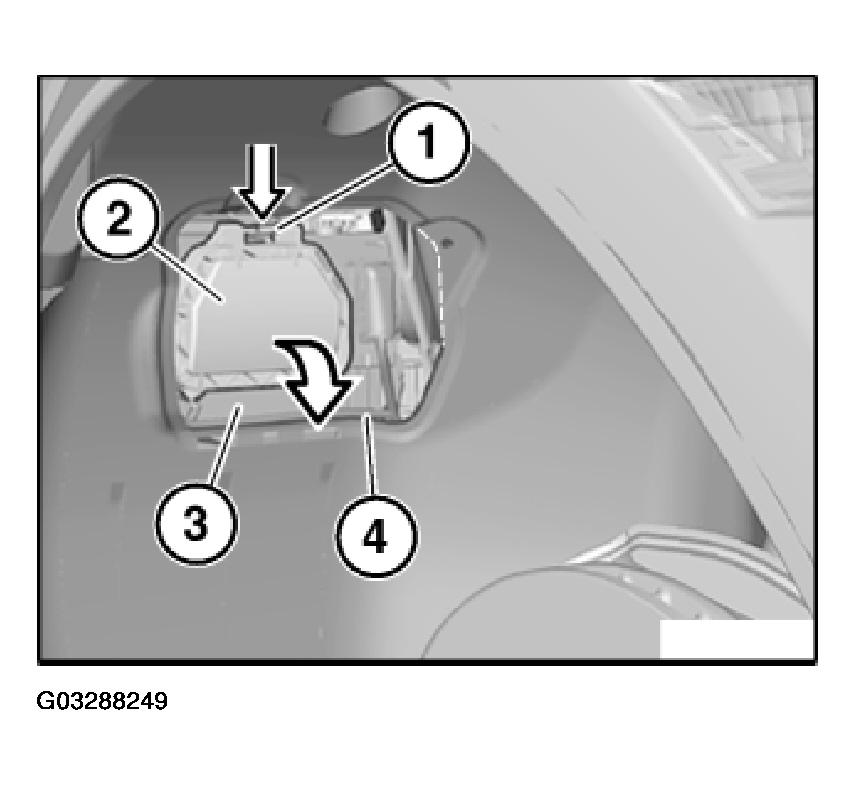

Fig 2: Removing Cover From Headlight And Feed Out Through Opening In Front Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Turn ignition unit for xenon headlight (1) approx. 30° counterclockwise and detach from headlight (3).

NOTE: Plug connection (2) is automatically released by turning ignition unit for xenon headlight (1).

Feed out ignition unit for xenon headlight (1) through opening in headlight (4) and remove.

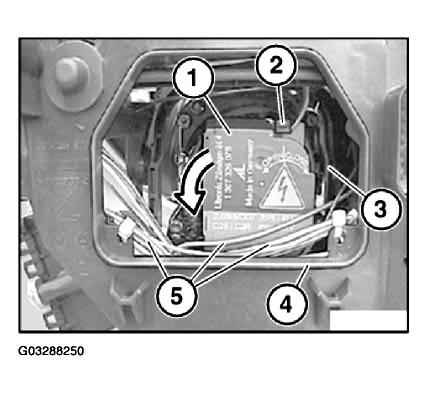

Fig 3: Feeding Out Ignition Unit For Xenon Headlight Through Opening In Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure electrical leads (5) are correctly routed.
