63 12 010 Removing and installing/replacing left headlight (xenon headlight)

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper trim, refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

WARNING: Follow instructions for handling light bulbs (exterior lights), refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Release screws (1) and screw (2).

Installation:

Adjust headlight to fit by way of 4 screw fastening points.

Pull headlight (3) forwards slightly.

NOTE: Direction indicator (4) remains fitted.

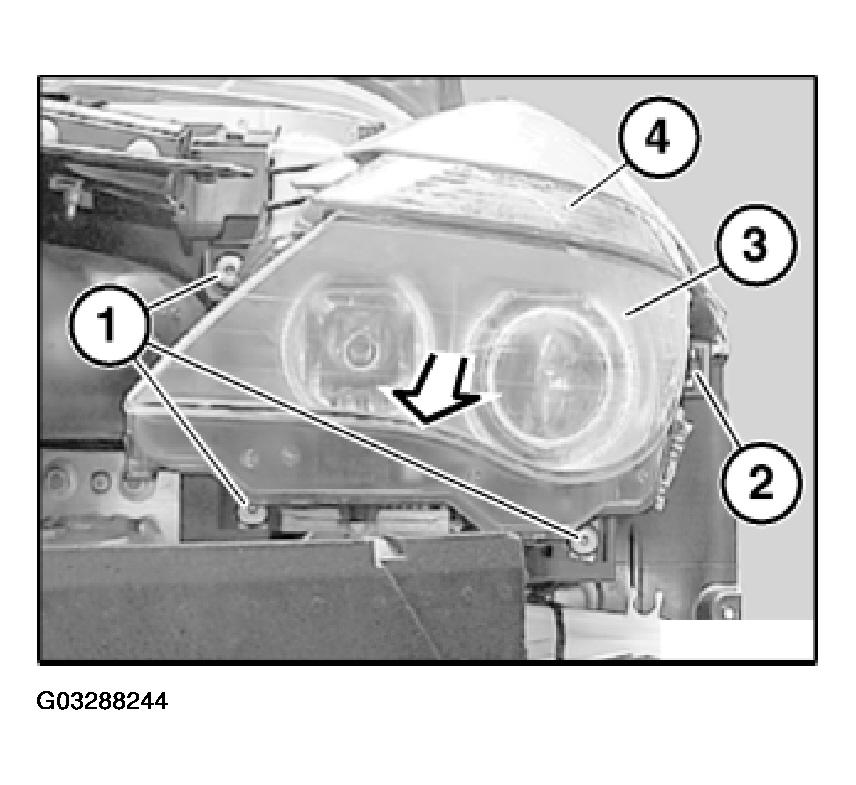

Fig 1: Pulling Headlight Forwards Slightly

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock associated plug connections and disconnect.

Remove headlamp (3).

Outer screw fastening point:

Adjust headlight (1) to fit by means of adjusting screw (2).
Tighten retaining screw (3) while simultaneously gripping nut (4).

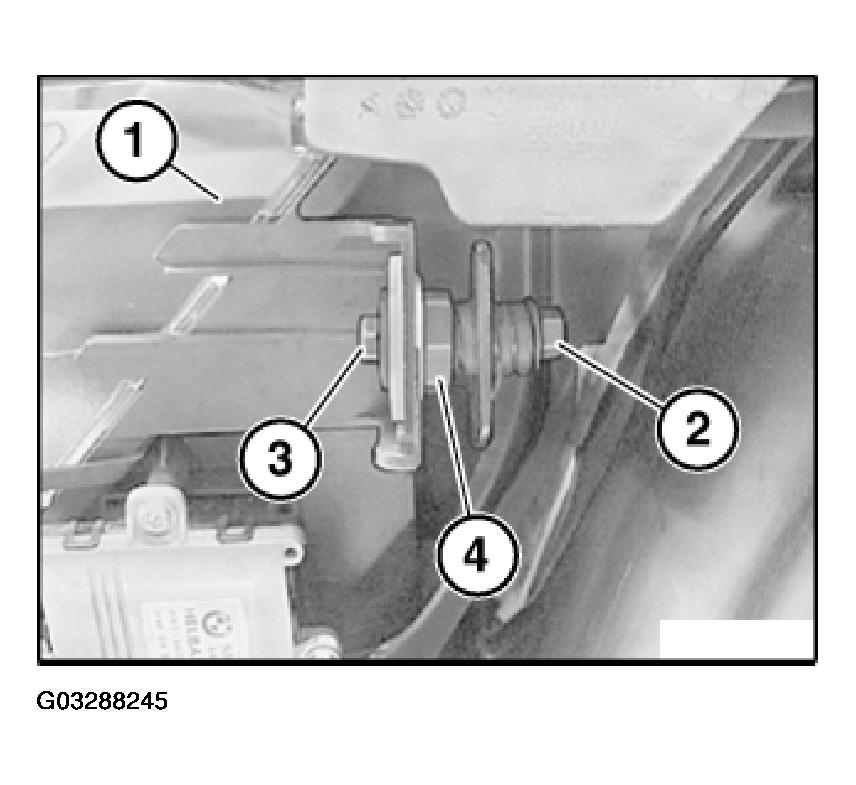

Fig 2: Adjusting Headlight To Fit By Means Of Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe gap dimensions.
Adjust headlights, refer to 63 10 004 ADJUSTING HEADLIGHTS .

Replacement:

Remove ignition unit and lamp for xenon headlight, refer to 63 99 076 REPLACING LAMP FOR LEFT XENON HEADLIGHT .
Remove control unit for xenon headlight, refer to 63 12 860 REPLACING CONTROL UNIT FOR LEFT XENON HEADLIGHT .
If necessary, remove drive unit for adaptive headlight, refer to 63 12 895 REPLACING DRIVE FOR LEFT ADAPTIVE HEADLIGHT .
