61 31 177 Removing and installing/replacing switch for slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front roofliner trim, refer to 51 44 ... REMOVING AND INSTALLING FRONT ROOFLINER TRIM .

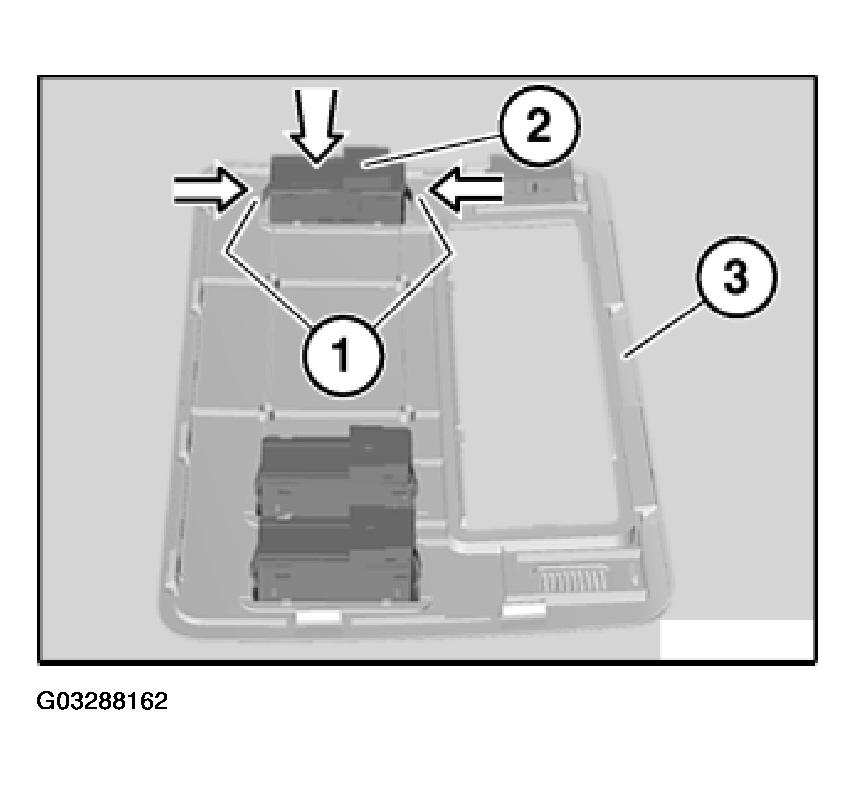

Press catches (1) and unclip switch for slide/tilt sunroof (2) in direction of arrow from front roofliner trim (3).

Fig 1: Pressing Catches And Unclipping Switch For Slide/Tilt Sunroof From Front Roofliner Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Initialize slide/tilt sunroof, refer to 54 0 ... NOTES ON PANORAMA GLASS ROOF (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) .
