61 31 069 Removing and installing/replacing indicator for front passenger airbag deactivation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

E60, E63: Remove front roofliner trim, refer to 51 44 ... REMOVING AND INSTALLING FRONT ROOFLINER TRIM .
E64: Remove front roofliner trim insert

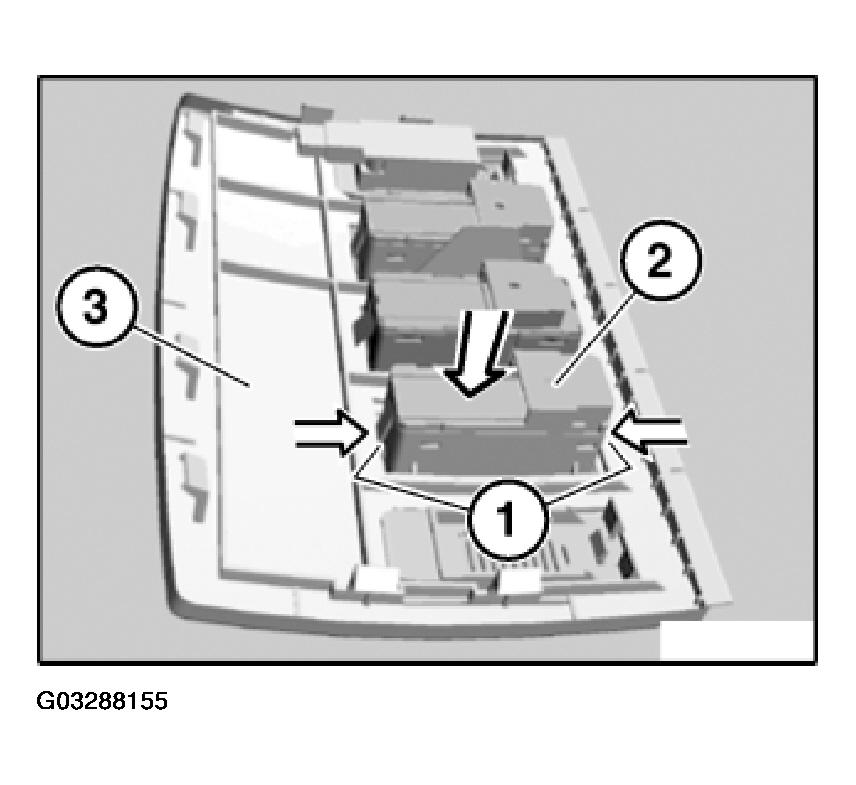

Press locks (1) and unclip indicator for front passenger airbag deactivation (2) in direction of arrow from front roofliner trim (3).

Fig 1: Pressing Locks And Unclipping Indicator For Front Passenger Airbag Deactivation From Front Roofliner Trim

Courtesy of BMW OF NORTH AMERICA, INC.
