61 31 011 Removing and installing/replacing volute spring cassette (from 09/2005)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Move wheels into straight-ahead position and do not alter this position during the repair work.

Necessary preliminary tasks:

Disconnect battery negative lead .
Remove airbag unit.
Remove steering wheel.32 33 001 REMOVING AND INSTALLING / REPLACING STEERING WHEEL
Remove front section of steering column trim.32 31 010 REMOVING AND INSTALLING/REPLACING FRONT SECTION OF STEERING COLUMN COVER
Remove lower section of steering column trim.32 31 020 REMOVING AND INSTALLING / REPLACING LOWER SECTION OF STEERING COLUMN TRIM
Remove cruise control switch .
Remove windshield wiper switch .

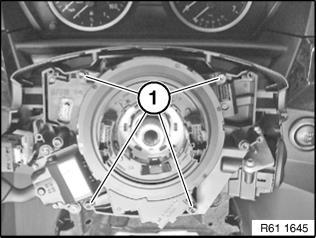

Release screws (1).

Fig 1: Release Screws (1)

Courtesy of BMW OF NORTH AMERICA, INC.

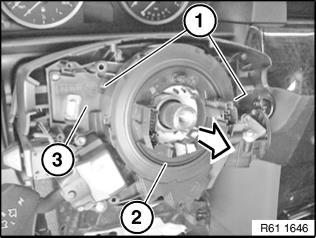

Unlock catches (1) and remove volute spring cassette (2) in direction of arrow from fixture for steering column switch (3).

Fig 2: Remove Volute Spring Cassette (2) In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

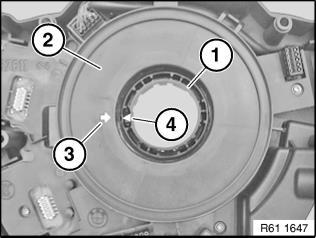

IMPORTANT: Important! Do not turn ring (1). Also turning ring (1) through 360° is not permitted! Secure ring (1) against unauthorized turning.

Installation: For purposes of clarity, fixture for steering column stalk (2) is shown removed. Marking (3) must line up with marking (4).

Fig 3: Marking (3) Must Line Up With Marking (4)

Courtesy of BMW OF NORTH AMERICA, INC.

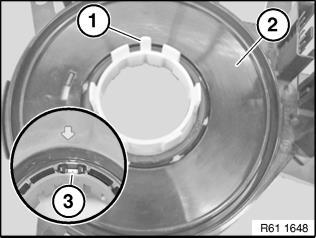

Installation: Drive pin (1) of volute spring (2) must line up correctly with opening (3) in inner ring of stalk.

Fig 4: Drive Pin (1) Of Volute Spring (2) Must Line Up Correctly With Opening (3) In Inner Ring Of Stalk

Courtesy of BMW OF NORTH AMERICA, INC.
