61 31 018 Removing and installing/replacing cruise control switch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release screws (1) and remove cruise control switch (2) towards rear.

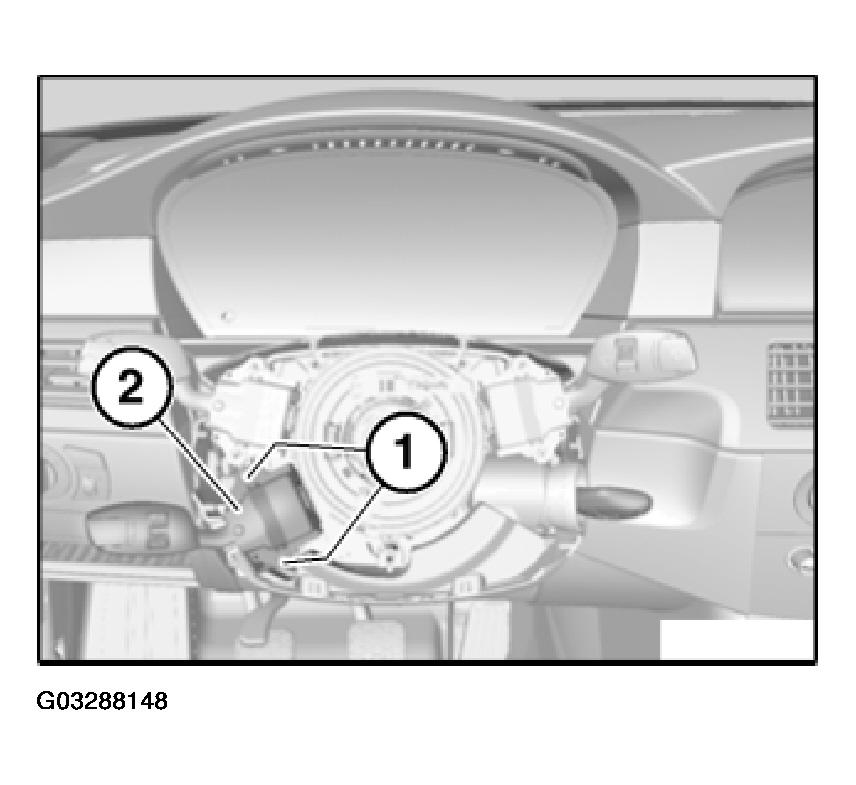

Fig 1: Releasing Screws And Removing Cruise Control Switch Towards Rear
G03288148Courtesy of BMW OF NORTH AMERICA, INC.
