61 31 006 Removing and installing (replacing) fixture for steering column stalk
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Move wheels into straight-ahead position and do not alter this position during the repair work.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
Necessary preliminary tasks:
- Remove top section of steering column casing, refer to 32 31 004 REMOVING AND INSTALLING / REPLACING UPPER SECTION OF STEERING COLUMN TRIM .
- If necessary, remove deformation element for steering column trim.
NOTE:
Comply with notes and instructions on handling optical wave guides, refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS .

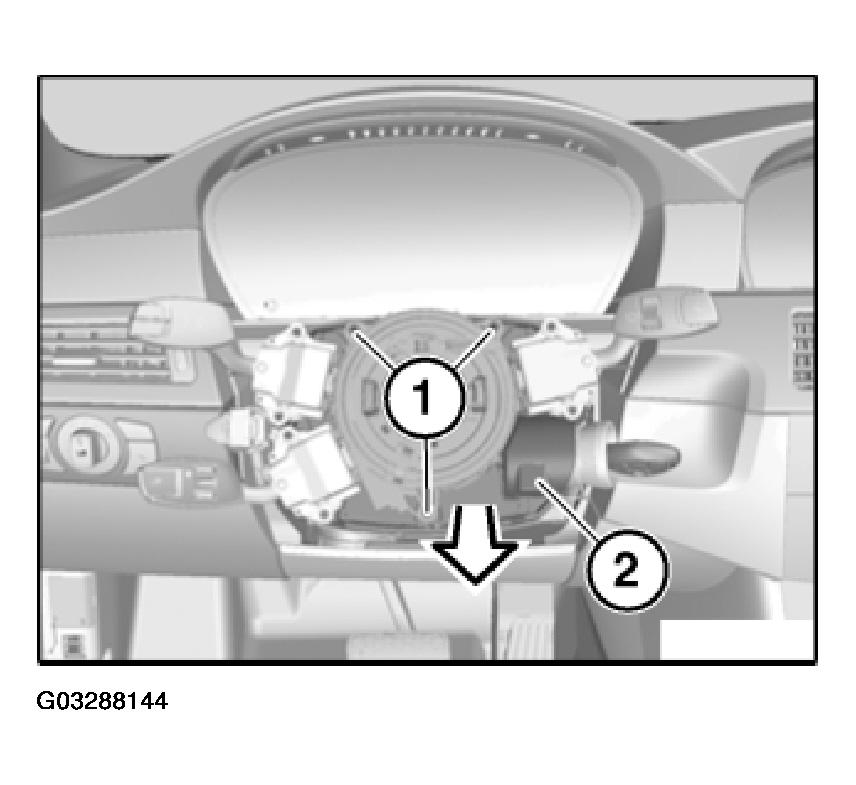

Release screws (1).
Pull back fixture for steering column switch (2) in direction of arrow.
Disconnect plug connections behind and remove fixture for steering column stalk (2).
Replacement:
- Remove turn indicator/headlight dipping switch, refer to 61 31 016 REMOVING AND INSTALLING/REPLACING TURN INDICATOR/HEADLIGHT DIPPING SWITCH .
- Remove windshield wiper switch, refer to 61 31 040 REMOVING AND INSTALLING/REPLACING SWITCH FOR WINDSHIELD WIPERS .
- If necessary, remove cruise control switch, refer to 61 31 018 REMOVING AND INSTALLING/REPLACING CRUISE CONTROL SWITCH .
Replacement:
- Carry out programming/coding, refer to DIAGNOSIS PROGRAMMING/CODING .
- Vehicles without active front steering:
- Carry out adjustment of steering angle sensor.
- Vehicles with active front steering:
- Carry out active front steering start-up/adjustment, refer to 32 10 005 ADJUSTMENT FOR ACTIVE FRONT STEERING .
