52 24 010 Removing and installing / replacing backrest

WARNING: This page is about a different car, the 2007 BMW M6, 2006 BMW M6, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear seat, refer to 52 24 005 REMOVING AND INSTALLING OR REPLACING REAR SEAT .
Remove head restraint, refer to 52 13 390 REMOVING AND INSTALLING / REPLACING FRONT HEADREST (NORMAL/ MANUAL) .
Remove armrest, refer to 52 24 030 REMOVING AND INSTALLING COMPLETE ARMREST FOR REAR SEAT BACKREST .

Release screws (1) on backrest.

Release screws (2) on seatbelt anchor fitting.

Tightening torque 31 N.m.

Unclip backrest forcefully forwards out of partition wall.

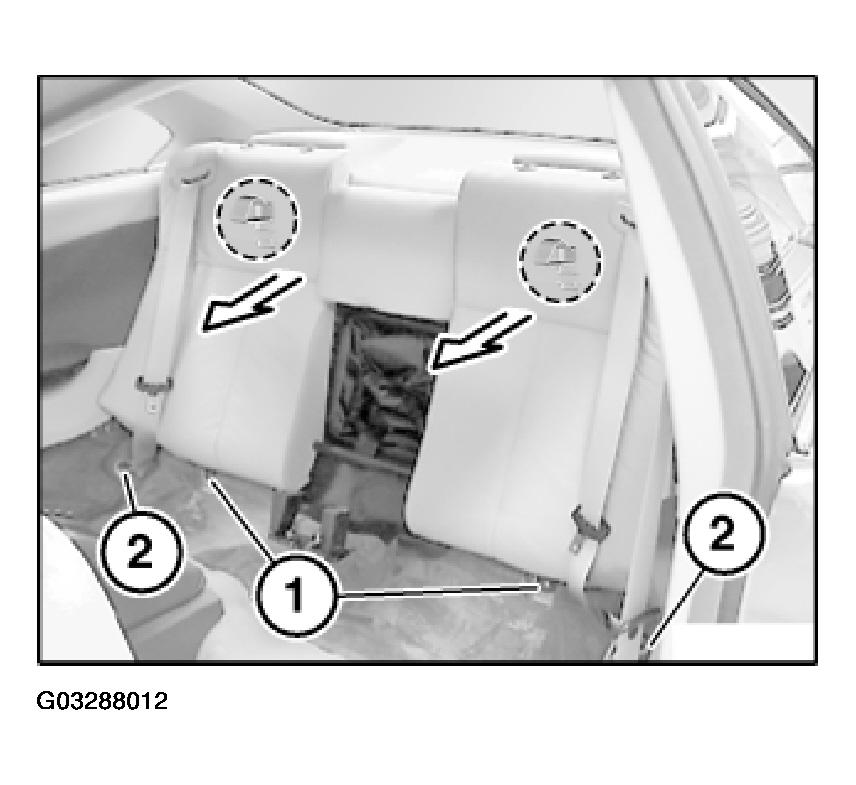

Fig 1: Unclipping Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure retainers are correctly seated in backrest.

NOTE: End of work when removing side trim panel and/or rear parcel shelf.

Unlock detent lugs (1) on back and remove seatbelt outlet trim (2).

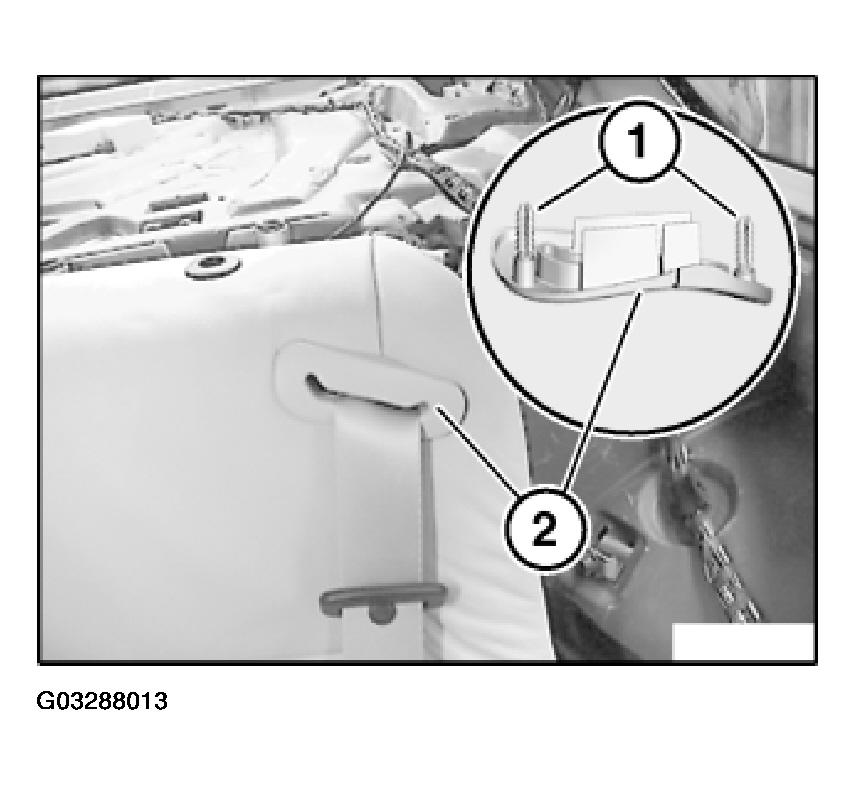

Fig 2: Removing Seatbelt Outlet Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace seatbelt outlet trims in event of faulty detent lugs.

Feed seat belt (1) out of

(2) Seatbelt outlet trim

(3) Backrest

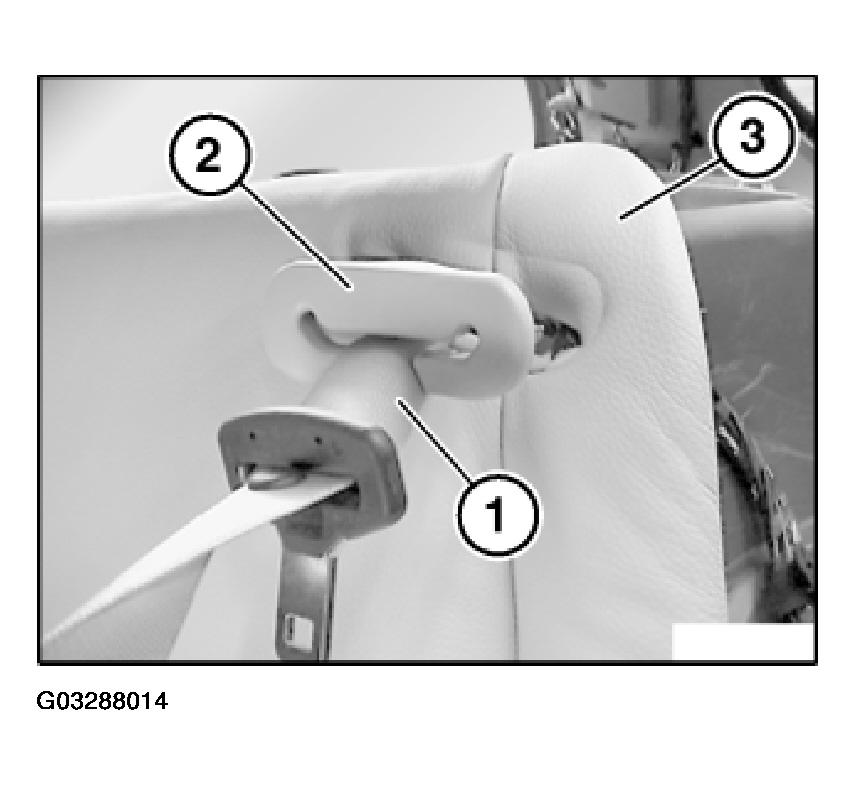

Fig 3: Identifying Seat Belt, Seat Belt Outer Trim And Backrest

Courtesy of BMW OF NORTH AMERICA, INC.
