52 24 ... Removing and installing / replacing ski bag with casing
WARNING: This page is about a different car, the 2007 BMW M6, 2006 BMW M6, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove ski bag cover, refer to 51 47 140 REMOVING AND INSTALLING/REPLACING PANEL FOR LUGGAGE COMPARTMENT PARTITION .
- Remove backrest, refer to 52 24 010 REMOVING AND INSTALLING / REPLACING BACKREST .

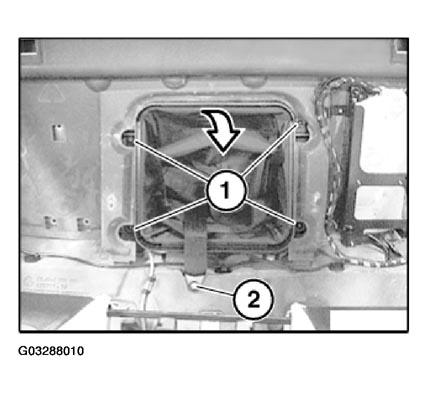

Release screws (1).
Tightening torque, refer to 52 24 6AZ in SEATS - TIGHTENING TORQUES - 645CI .
Release screw (2).
Tightening torque, refer to 52 24 7AZ in SEATS - TIGHTENING TORQUES - 645CI .
Remove casing towards front.
