52 13 ... Removing and installing/replacing trim for release handle on left or right front seat (normal/manual)

WARNING: This page is about a different car, the 2007 BMW M6, 2006 BMW M6, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Remove release handle on left or right front seat, refer to 52 14 033 REMOVING AND INSTALLING/REPLACING RELEASE HANDLE ON LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .

Unlock catches from outside by applying light pressure through trim slot and remove trim from side.

NOTE: On both sides on passenger seat.

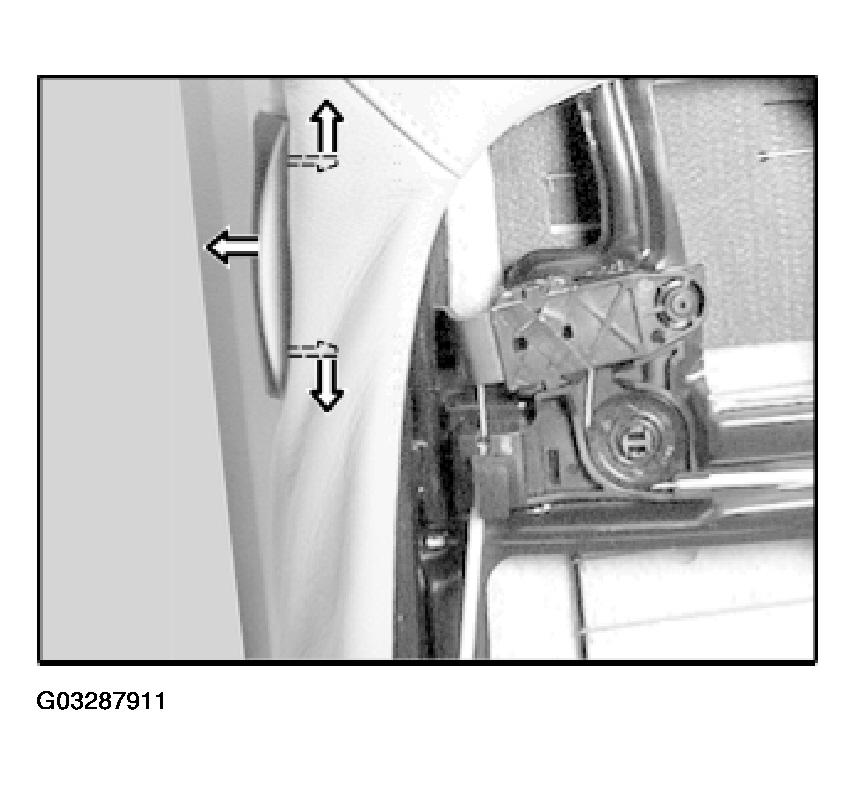

Fig 1: Unlocking Catches From Outside By Applying Light Pressure Through Trim Slot

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on trim must not be damaged.

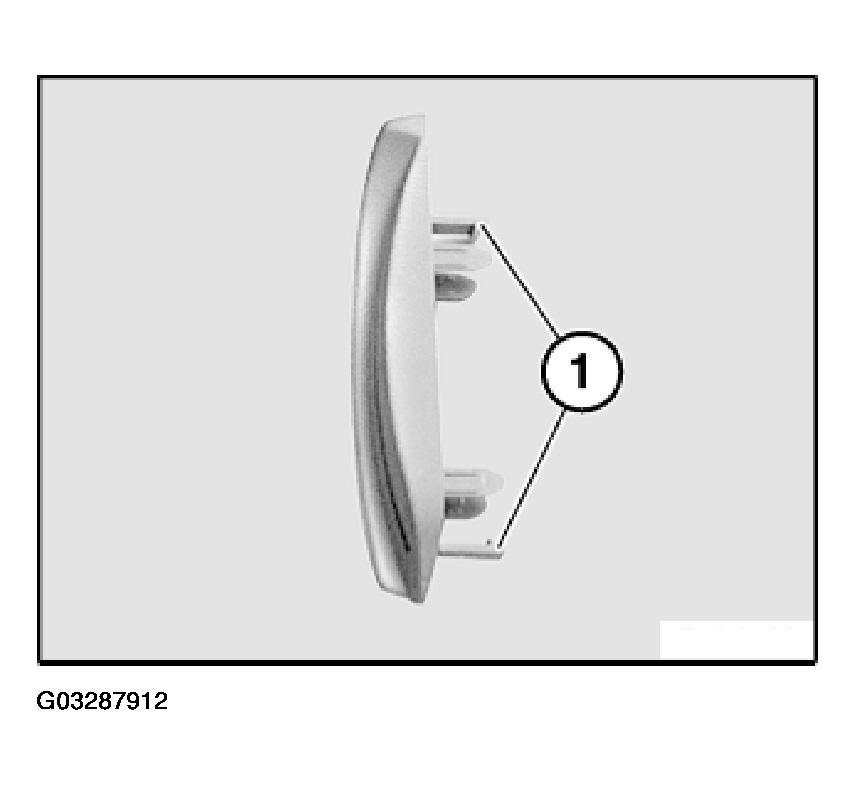

Fig 2: Identifying Catches On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
