51 12 801 Replacing bracket for rear bumper at left or right

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear bumper trim, refer to 51 12 157 REPLACING REAR BUMPER TRIM .

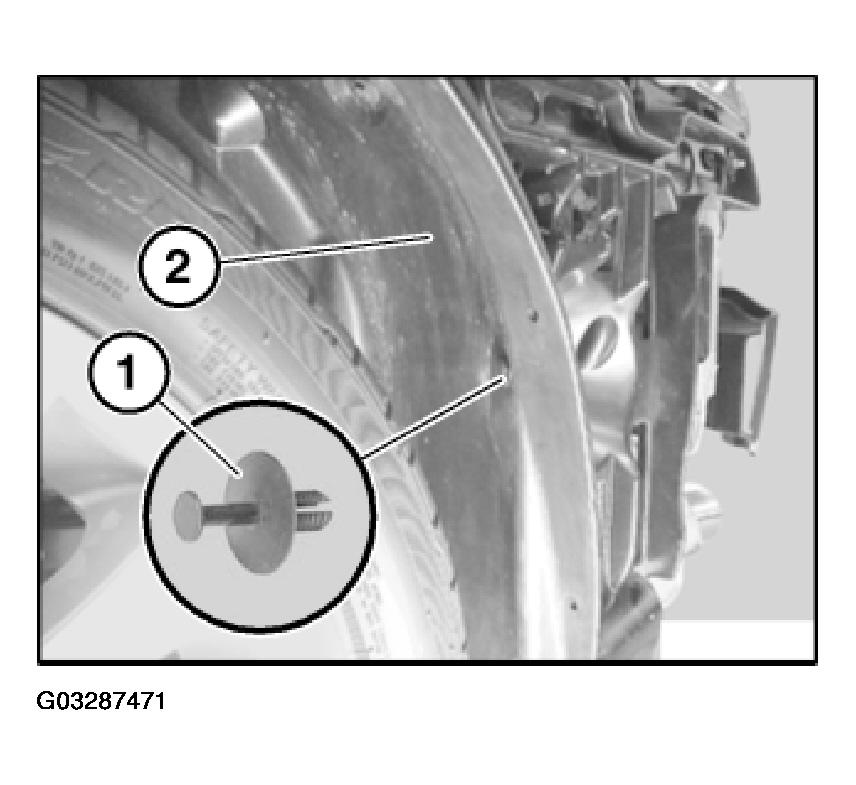

Release expander rivet (1) on wheel cover (2).

Fig 1: Releasing Expander Rivet On Wheel Cover

Courtesy of BMW OF NORTH AMERICA, INC.

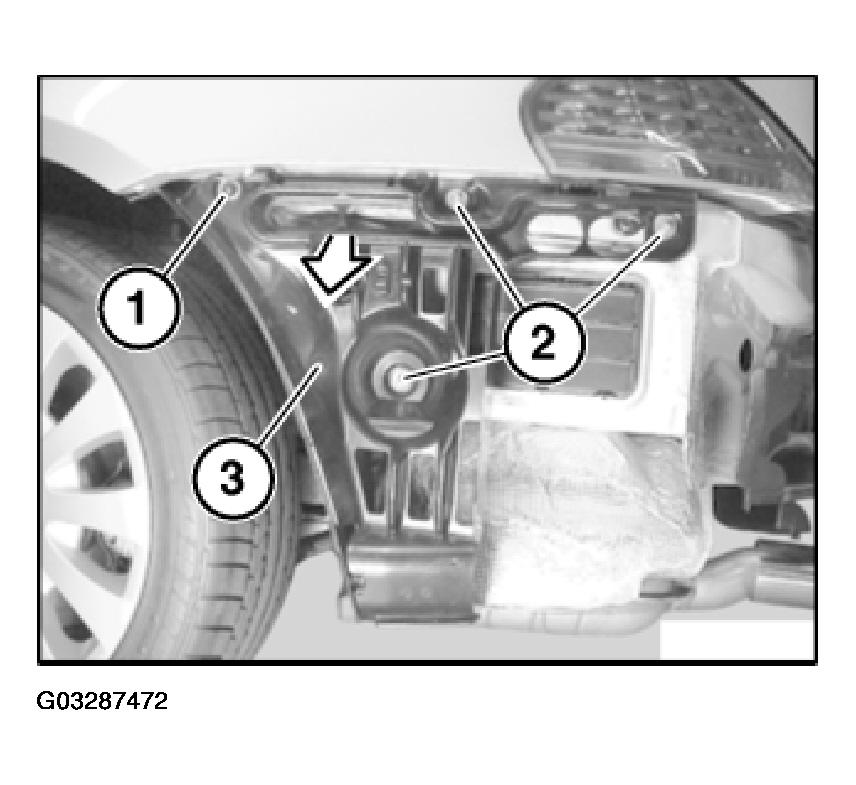

Release screw (1) and nut (2) and remove holder (3) in direction of arrow.

Fig 2: Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

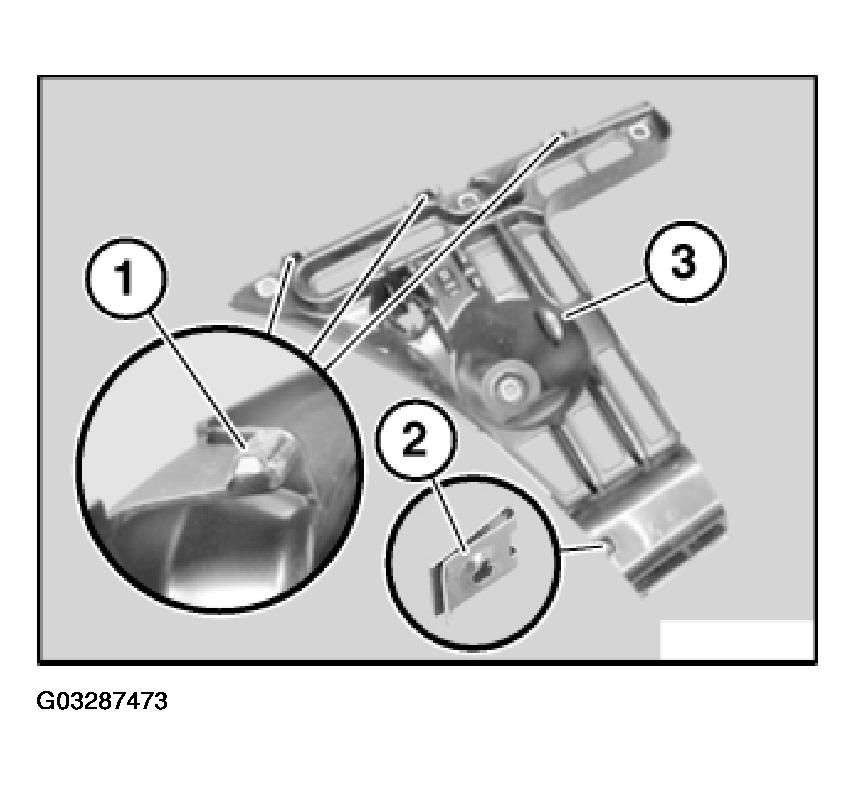

Catches (1) on holder (3) must not be damaged.

If necessary, replace faulty metal nut (2).

Fig 3: Identifying Catches On Holder

Courtesy of BMW OF NORTH AMERICA, INC.
