51 12 157 Replacing rear bumper trim
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear bumper trim, refer to 51 12 156 REMOVING AND INSTALLING REAR BUMPER TRIM .

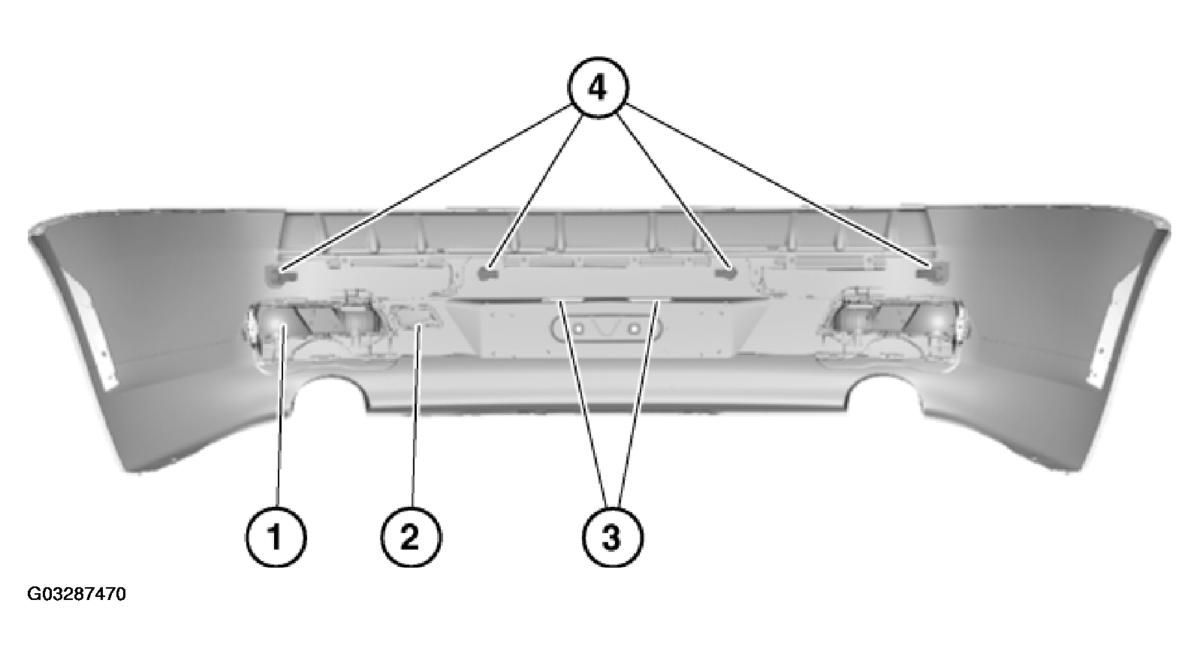

Remove rear light in bumper (1).
Remove cover cap (2) for tow lug.
Remove license plate light (3).
With optional PDC:
Remove all ultrasonic transducers (4).
