67 65 010 Removing and installing or replacing drive unit for roller sun blind

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PANEL FOR PARCEL SHELF .

IMPORTANT: Do not power up the drive unit if it is not completely connected to the roller sun blind.
If the roller sun blind is not completely rolled up, there is spring pressure on the drive linkage.

In this case, maintain the roller sun blind under pretension and carefully lever out the linkage. Now allow the roller sun blind to roll up slowly.

Remove locking clips (1) towards bottom.

Installation:

Replace locking clips (1).

Lever out drive linkage (2) on left and right.

Release screw (3) and remove complete drive linkage (4) towards top.

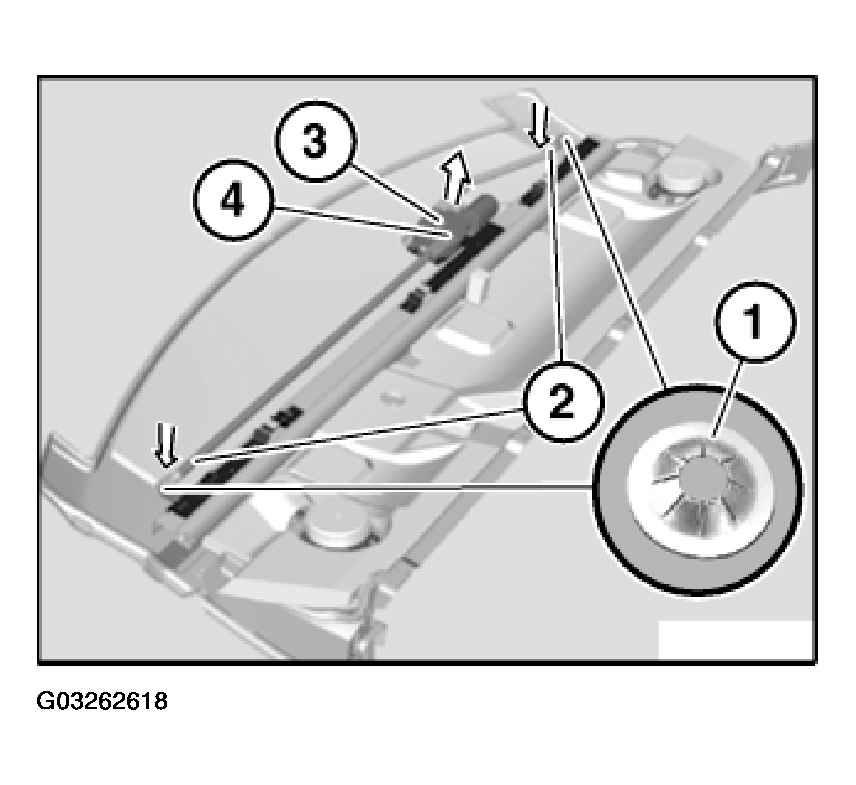

Fig 1: Removing Complete Drive Linkage Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure drive linkage (1) is correctly positioned on drive shaft (2).

Drive linkage (1) can only rest in one single position on the drive shaft (2).

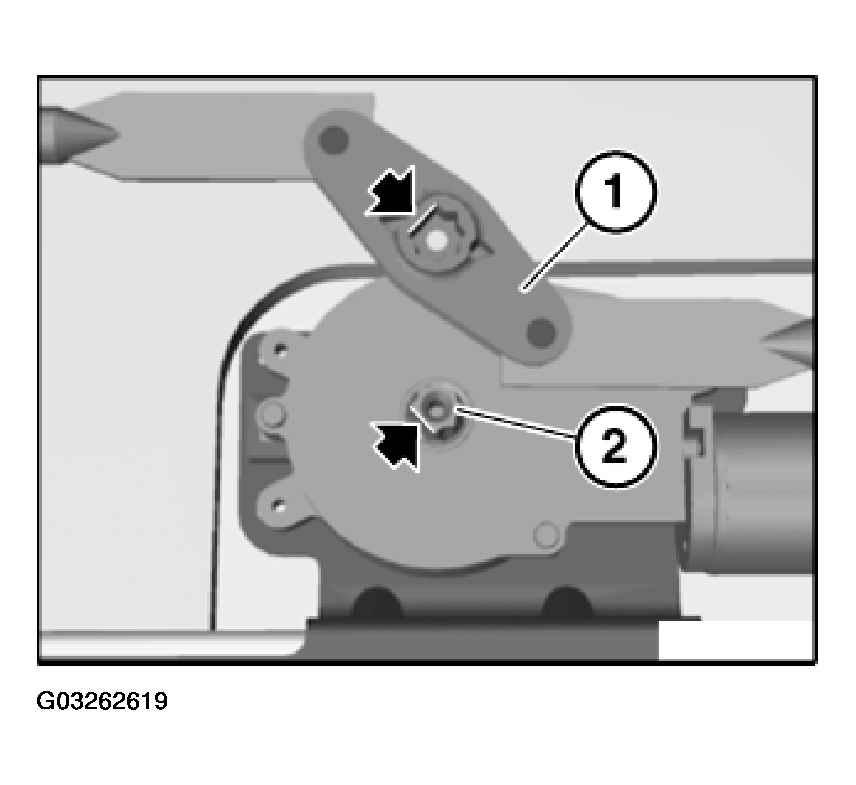

Fig 2: Identifying Drive Linkage

Courtesy of BMW OF NORTH AMERICA, INC.

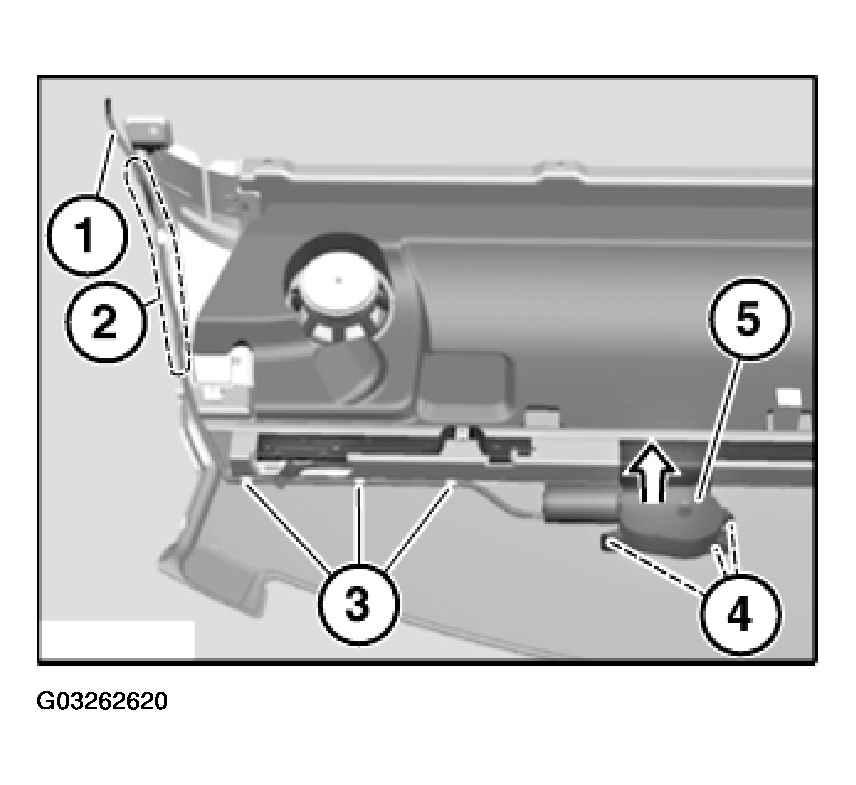

Unhook electric lead (1) in area (2) and unclip at points (3).

Release screws (4) and remove drive unit for roller sun blind (5) in direction of arrow.

Installation instructions:

Attach screws (4) loosely only. Attach drive linkage and tighten down screws (4).

Fig 3: Attaching Drive Linkage And Tightening Down Screws

Courtesy of BMW OF NORTH AMERICA, INC.
