66 54 005 Removing and installing control unit for night vision system
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection). See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
Necessary preliminary tasks: Disconnect battery negative lead. Remove trim for instrument panel on right. See 51 45 181 REMOVING AND INSTALLING/REPLACING BOTTOM RIGHT TRIM FOR INSTRUMENT PANEL .

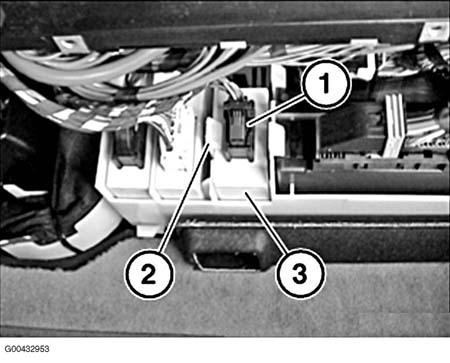

Disconnect plug connection (1). Press tab (2) to side and remove control unit (3) from module carrier.
