65 50 011 Removing and installing (replacing) video module for on-board monitor

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE LEAD .
Remove LUGGAGE COMPARTMENT TRIM ON LEFT SIDE PANEL .

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBERS .

Release screws (1).

Remove storage compartment (2) in direction of arrow from holder (3).

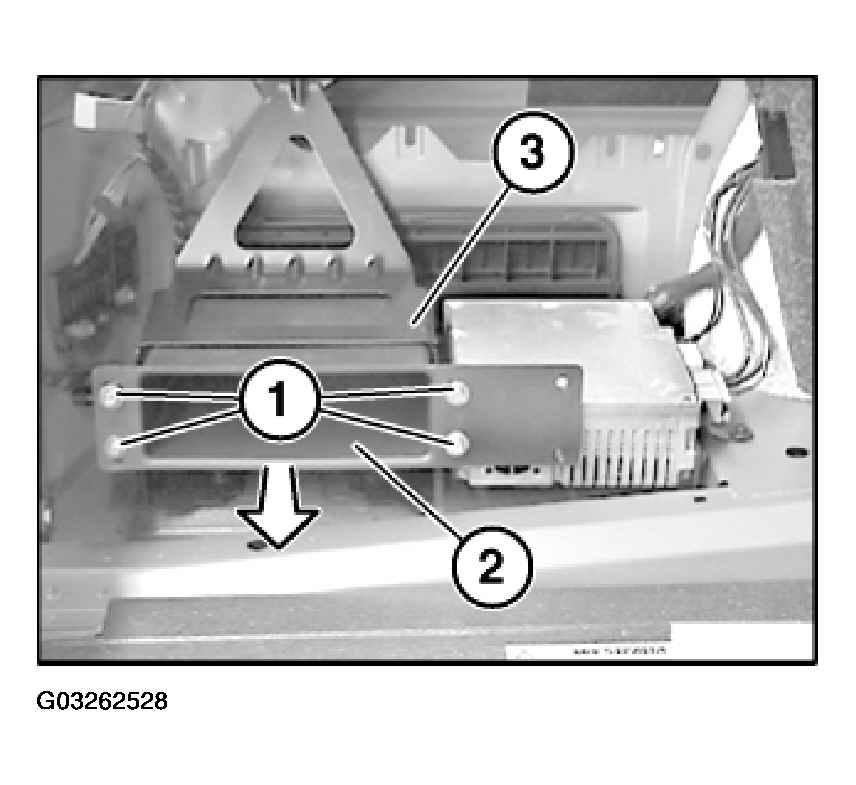

Fig 1: Removing Storage Compartment

G03262528

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Do not mix up antenna connectors (1).

Mark antenna plugs (1) and disconnect.

Unfasten plug connection (2) and disconnect.

Release screws (3).

Remove video module for on-board monitor (4) in direction of arrow.

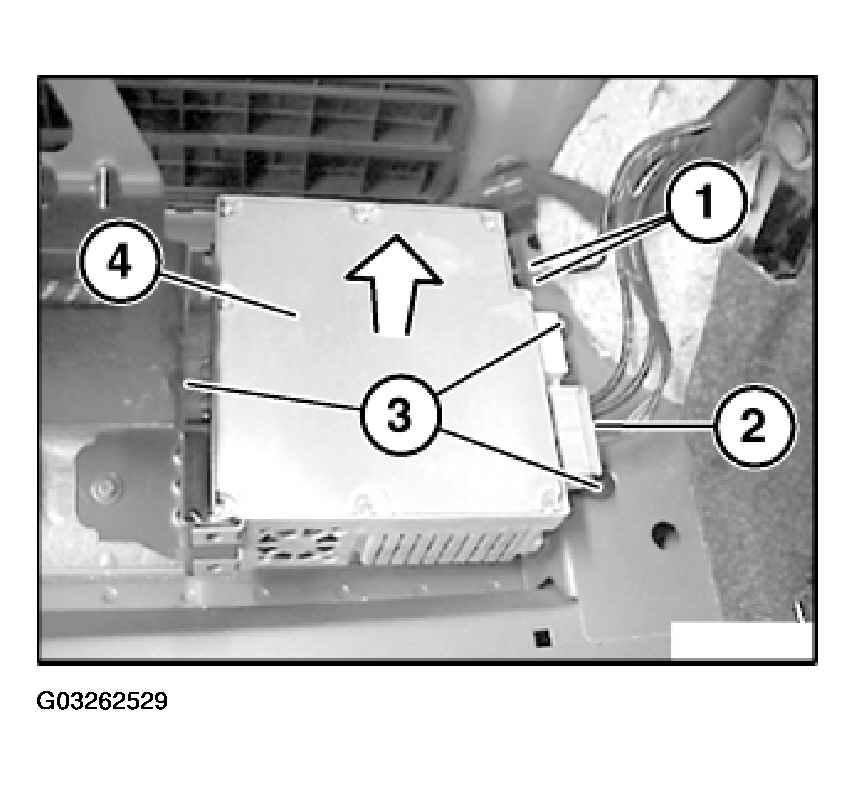

Fig 2: Removing Video Module For On-Board Monitor

G03262529

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1) and remove holder (2) from video module for on-board monitor (3).

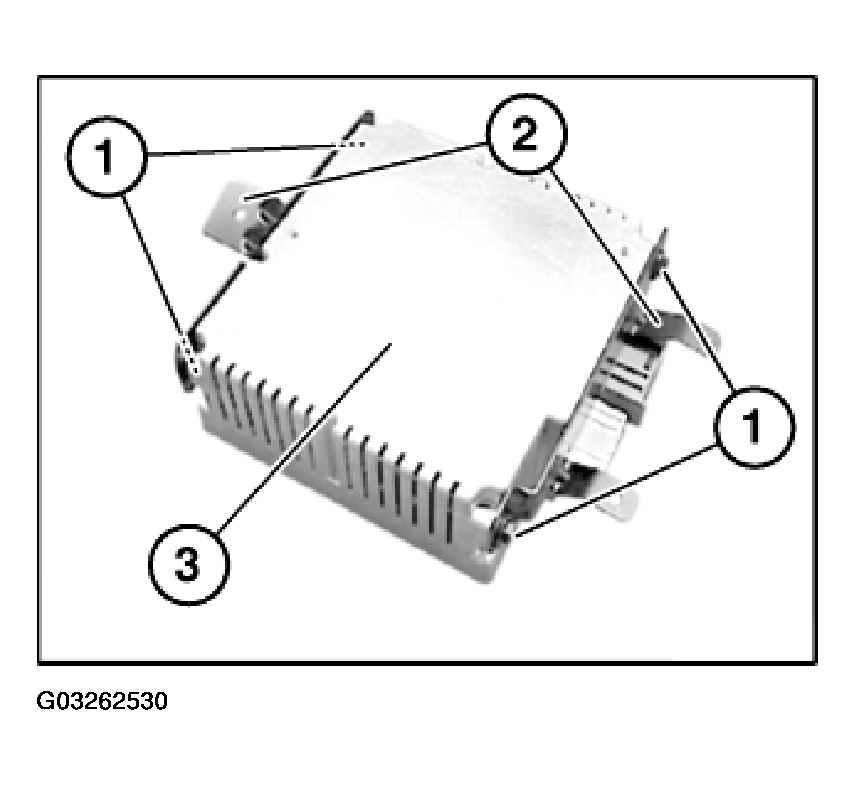

Fig 3: Removing Holder From Video Module For On-Board Monitor

G03262530

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING .
