51 47 210 Removing and installing/replacing trunk trim panel on left side panel
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL .

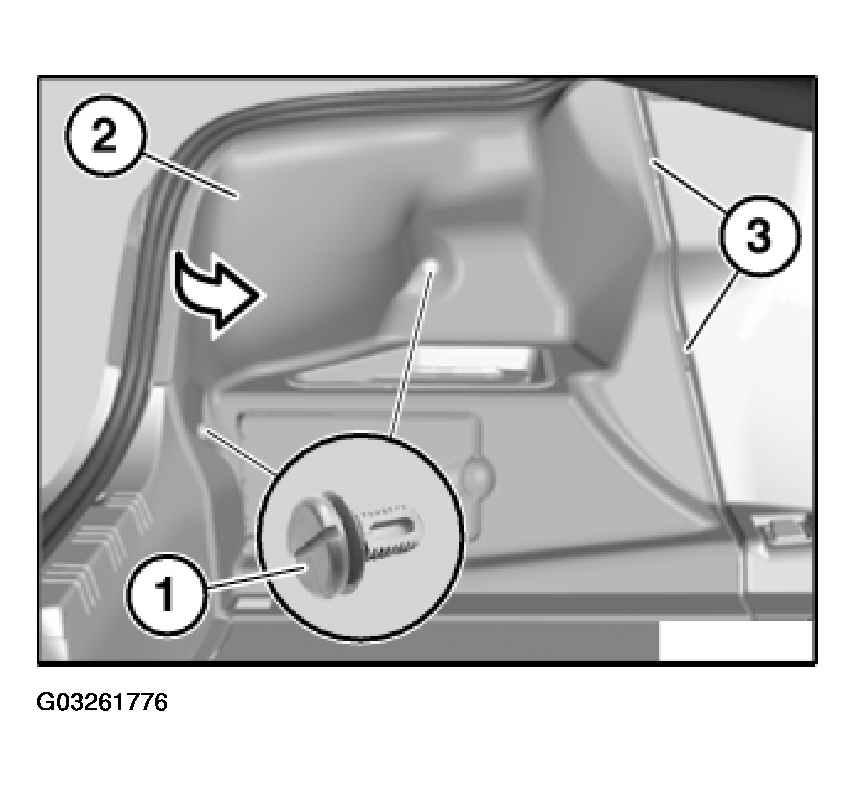

Open rotary clips (1) and remove.
Feed out luggage compartment trim on left side panel (2) in direction of arrow and remove.
Installation:
Correctly feed in guides (3) of luggage compartment trim on left side panel (2).
Replacement:

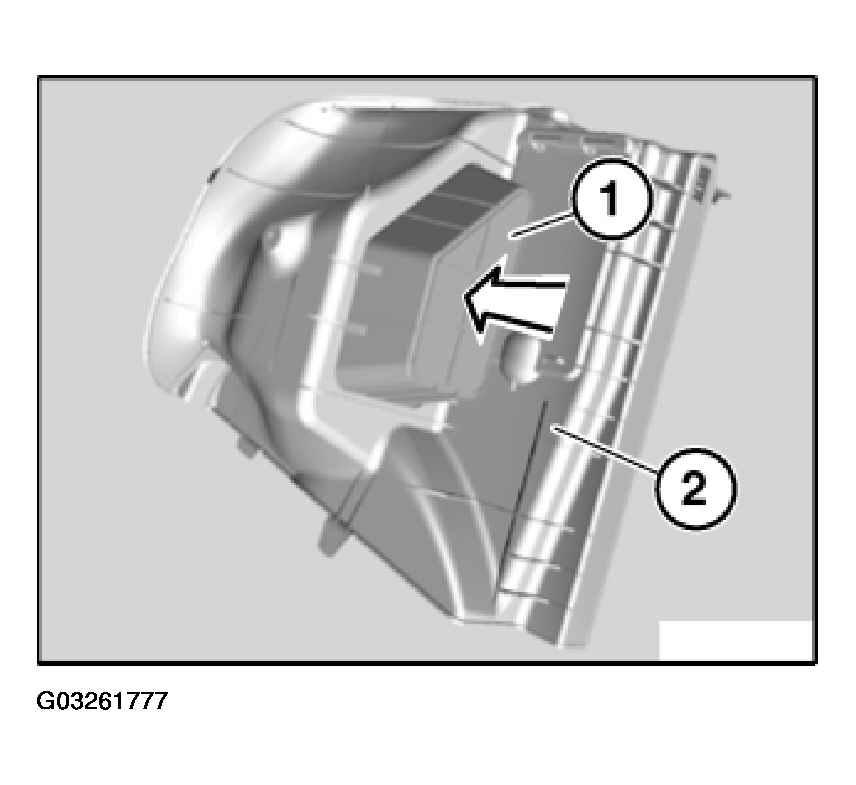

If necessary, unclip storage compartment (1) all round and remove in direction of arrow from luggage compartment trim on left side panel (2).
