65 11... Notes regarding the adjustment of the installation position on the CD changer
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Both suspension springs must be positioned correctly (horizontal/vertical) to ensure trouble-free function of the CD changer. Correct the setting as needed.
For purposes of clarity, the following graphics show the CD changer removed.
NOTE:
For purposes of clarity, the following graphics show the CD changer removed.
NOTE:
- Follow the following repair instructions when the magazine cannot be removed from the CD changer:
- Remove the CD CHANGER MAGAZINE

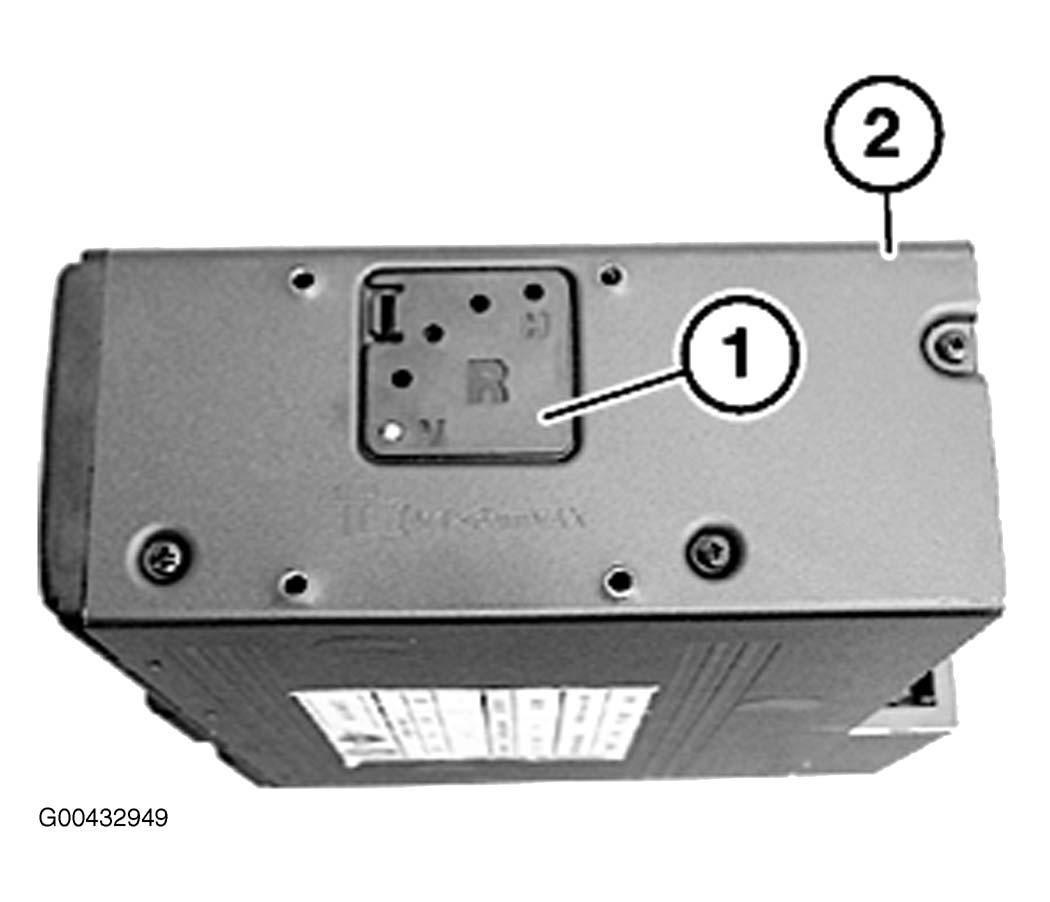

Remove holder (1) from CD changer (2).

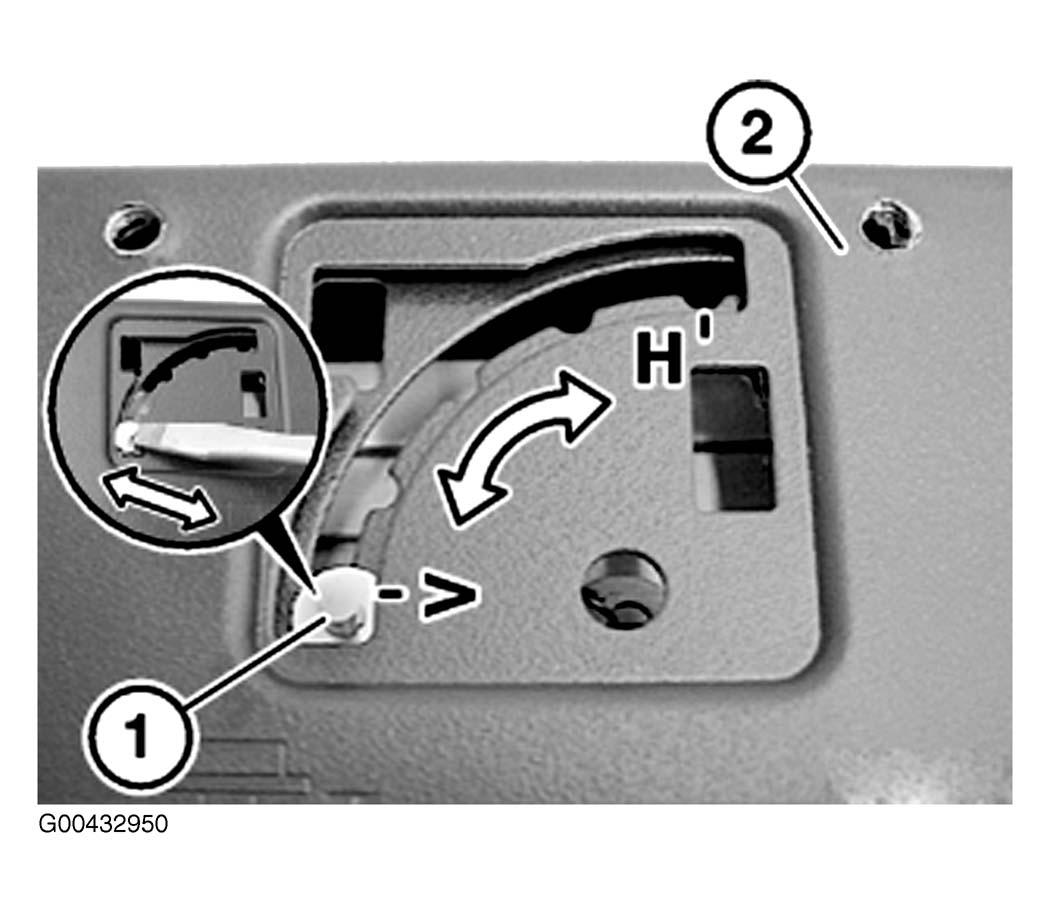

Move the installation position of the CD changer (2) to the required position by sliding the suspension spring (1) with a suitable tool.
