65 11... Removing and installing/replacing CD changer magazine
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Carry out the following work steps if the CD changer magazine is not automatically ejected.

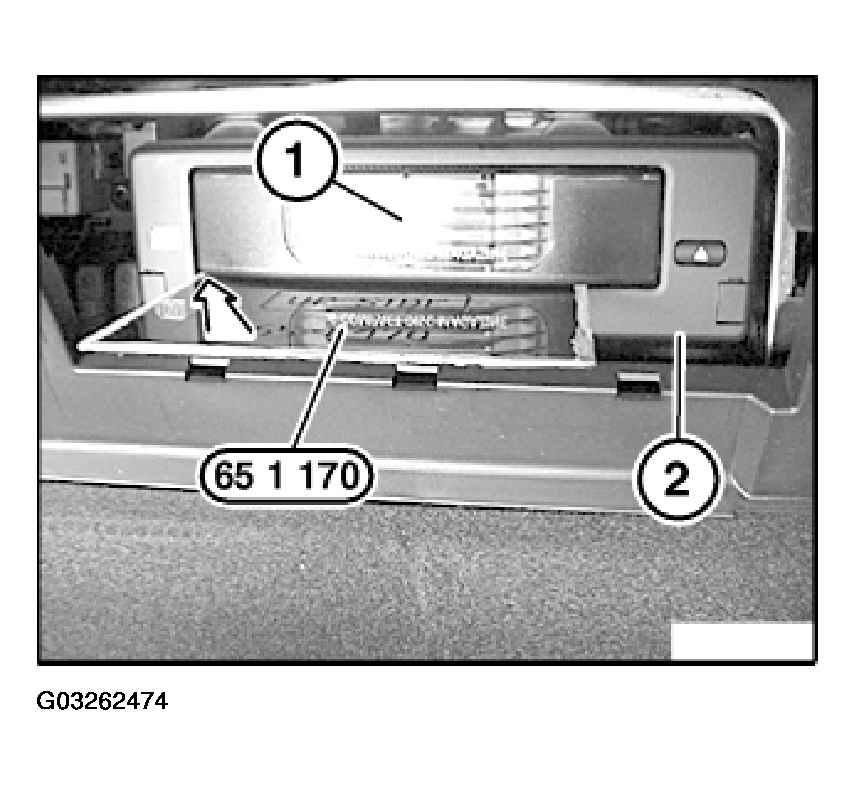

Insert special tool 65 1 170 on left under CD changer magazine (1) and carefully remove special tool with CD changer magazine (1) from CD changer (2).
Installation:
Check position of CDs in CD changer magazine.
NOTE:
A modified CD changer magazine is available from 10/2004 which eliminates incorrect loading.

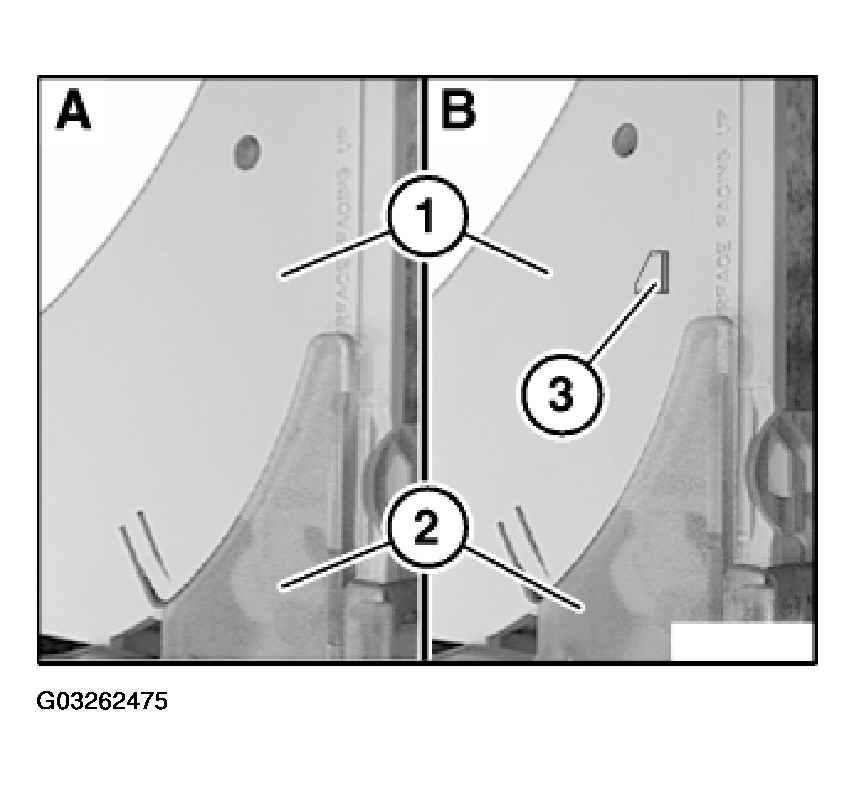

Checking CD changer magazine:
Pull CD slot (1) out of CD changer (2) and check top side at retaining lugs (3) on right/left.
(A): CD changer magazine before 10/04:
No retaining lugs on right/left.
Replace CD changer magazine.
(B): CD changer magazine from 10/04:
Retaining lugs (3) present on right/left.
