65 11 240 Removing and installing digital radio (IBOS)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBERS .

Necessary preliminary tasks: Disconnect negative battery cable. Remove LUGGAGE COMPARTMENT TRIM ON LEFT SIDE PANEL .

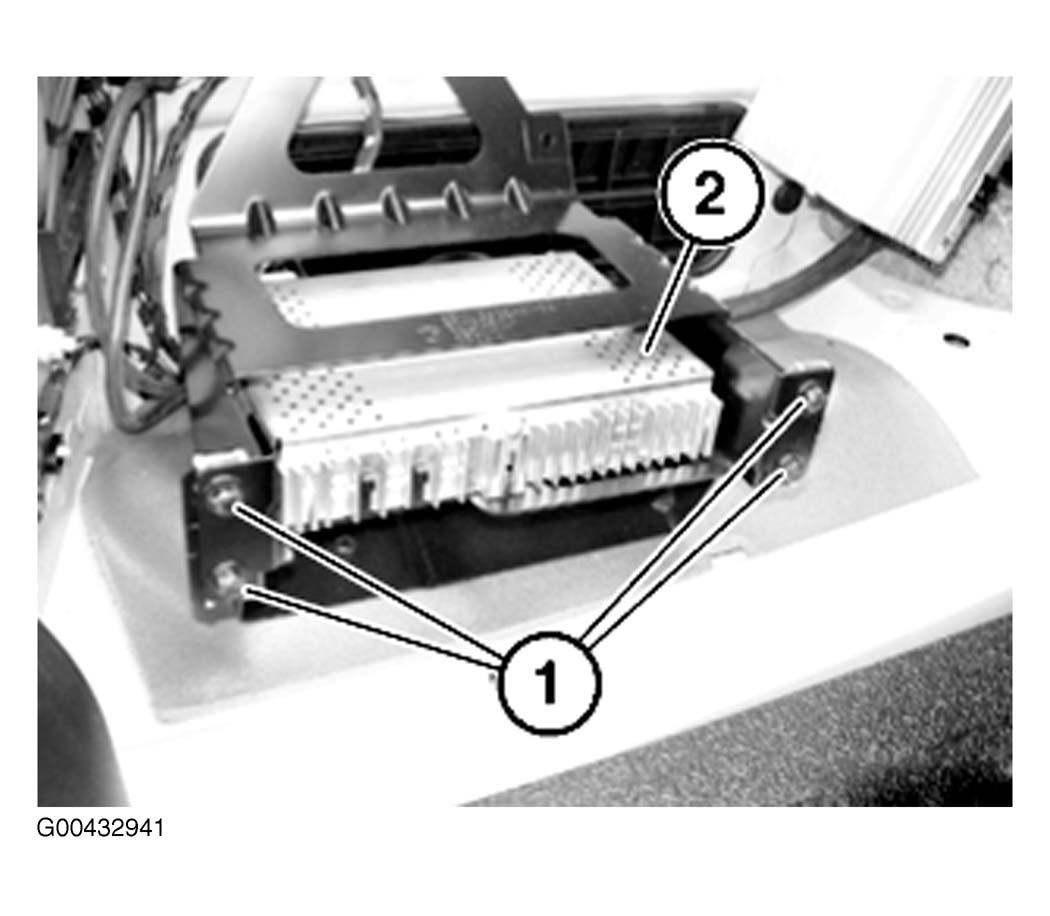

Release screws (1) and remove digital radio (2) from bracket.

Fig 1: Removing Radio From Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

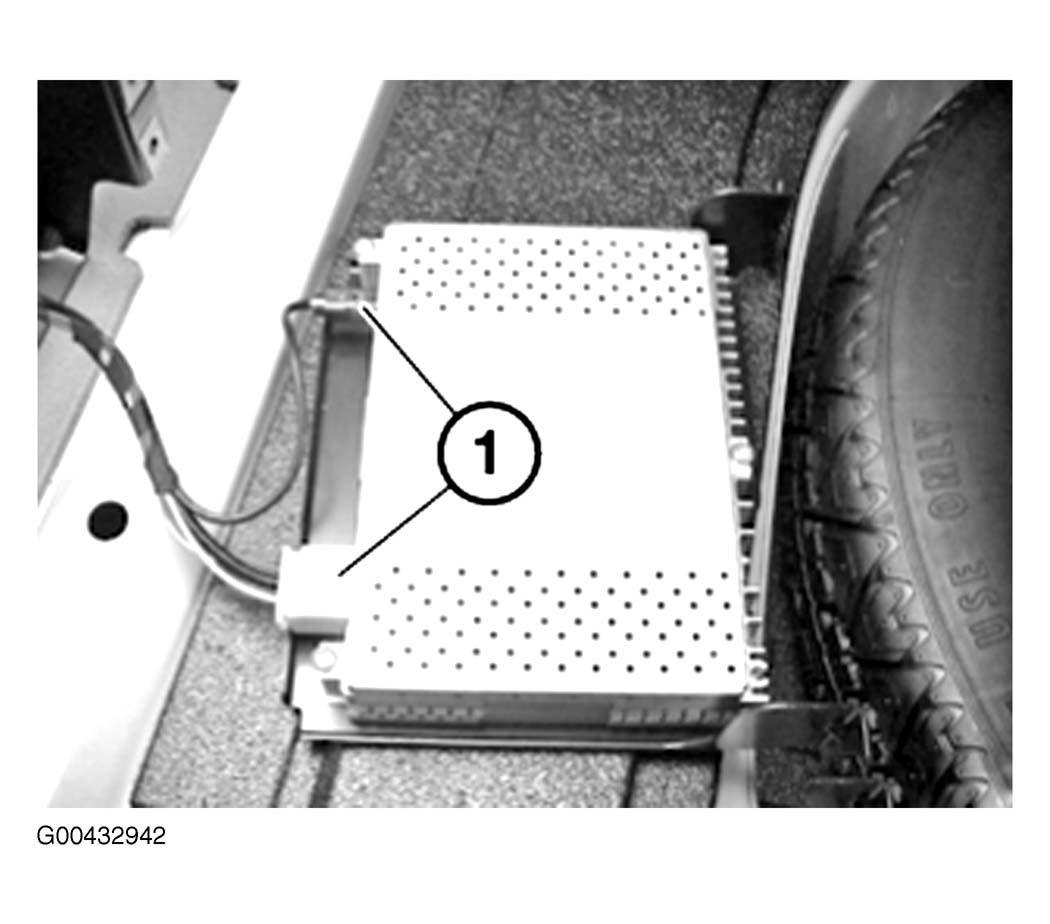

Disconnect plug connection (1).

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

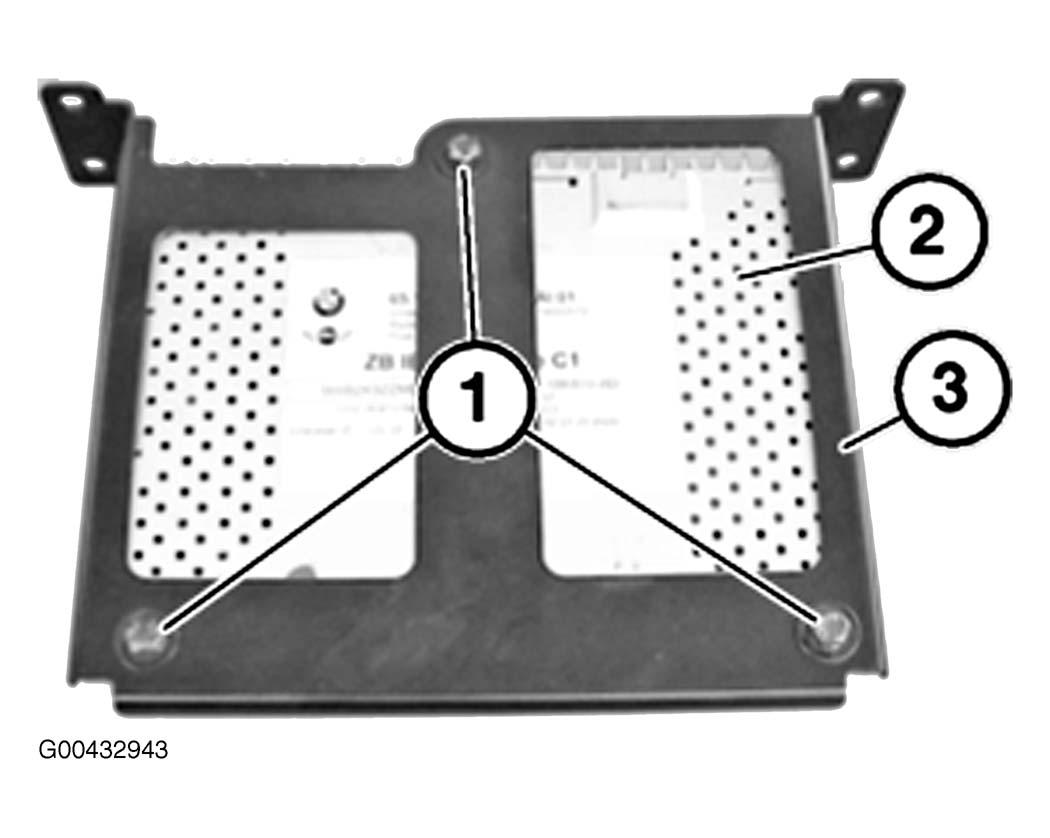

Replacement: Release screws (1) and remove digital radio (2) from bracket (3).

Fig 3: Removing Radio From Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
