65 11 075 Removing and installing/replacing DVD changer

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT TRIM ON SIDE PANEL ON RIGHT .
Disconnect BATTERY NEGATIVE LEAD .
Remove LUGGAGE COMPARTMENT TRIM ON LEFT SIDE PANEL .

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBERS .

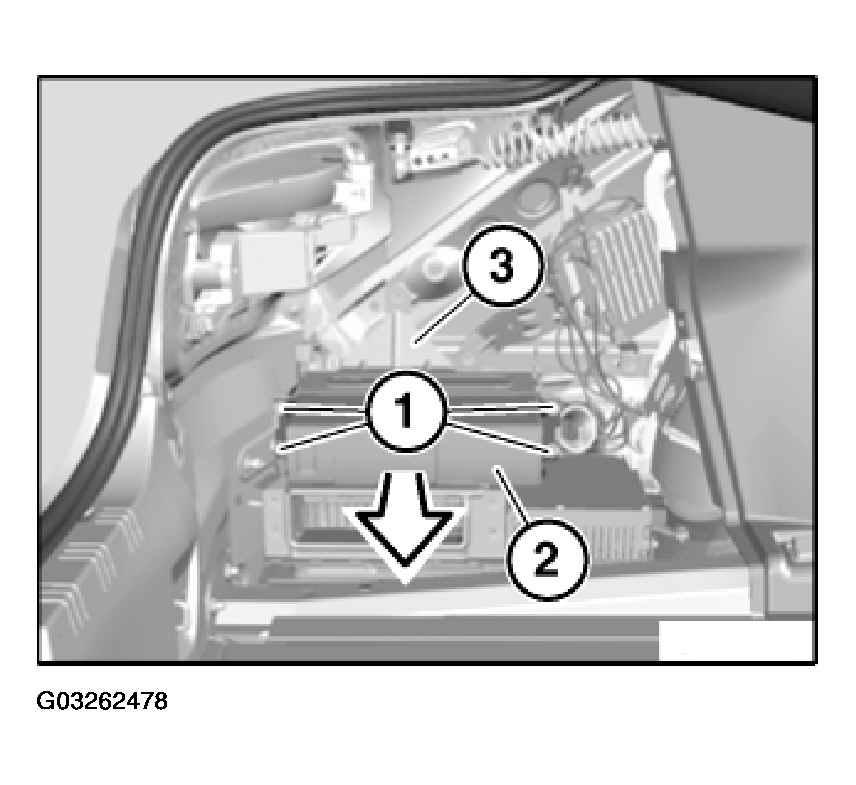

Release screws (1).

Pull DVD changer (2) out of fixture (3).

Unlock and disconnect associated plug connection, remove CD changer (2).

Fig 1: Pulling DVD Changer Out Of Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

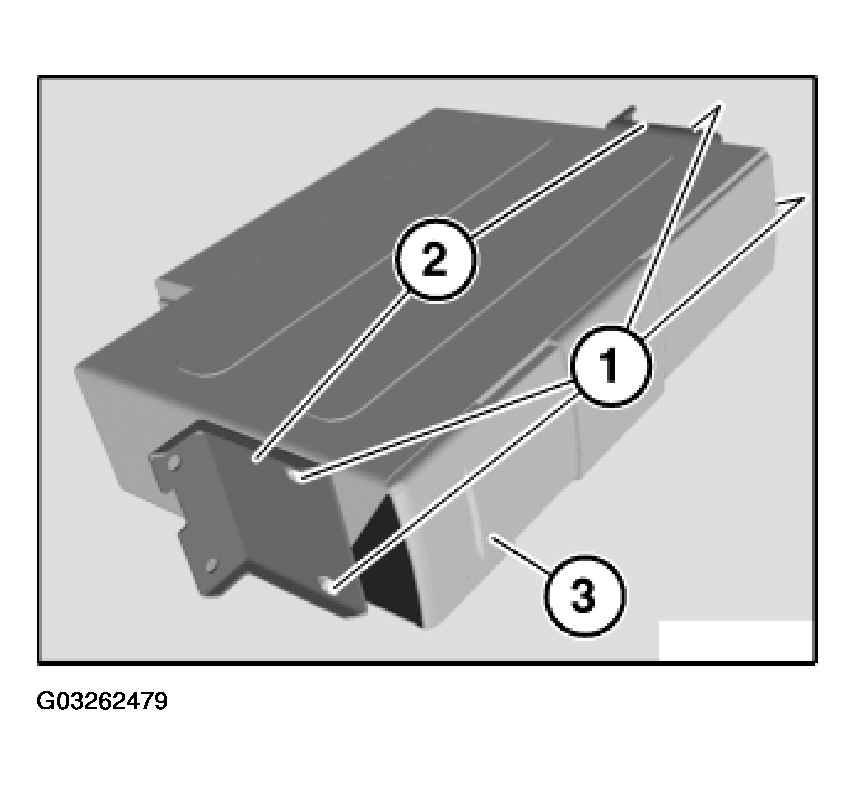

Release screws (1) and remove both holders (2) from DVD changer (3).

Installation:

If necessary, remove transportation lock.

Fig 2: Removing Both Holders From DVD Changer

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING .
