65 11 074 Replacing CD-changer trim

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Remove CD CHANGER

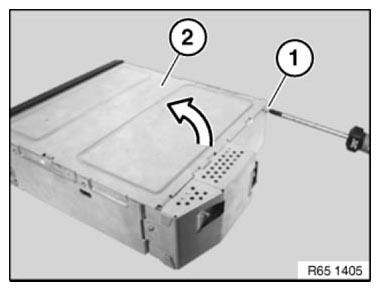

Release screw (1) of CD-changer cover (2).

Lift off lid (2) and flip upwards in direction of arrow.

Fig 1: Lifting Lid

G06897684

Courtesy of BMW OF NORTH AMERICA, INC.

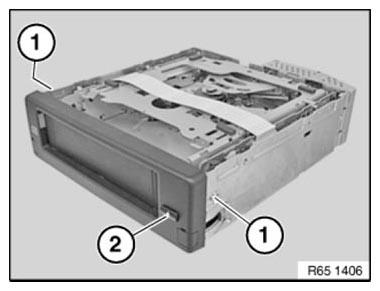

Release screws (1) on the trim (2).

Fig 2: Identifying Screws On Trim

G06897685

Courtesy of BMW OF NORTH AMERICA, INC.

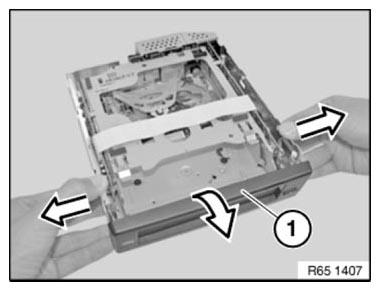

Bend the side walls of the CD-changer slightly in the directly of the arrow.

Pull out trim (1) in direction of arrow.

Fig 3: Pulling Trim

G06897686

Courtesy of BMW OF NORTH AMERICA, INC.

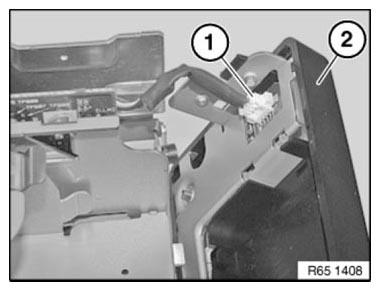

Detach plug (1) from trim (2).

Fig 4: Identifying Trim And Plug

G06897687

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim (1) from housing (2).

Installation:

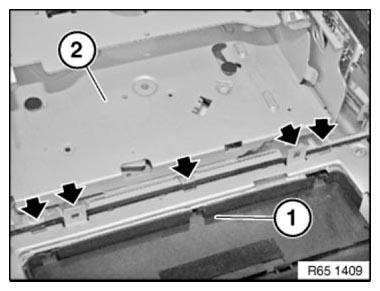

Position trim (1) on the latch mechanisms of the trim (2).

Fig 5: Locating Trim On Housing

G06897688

Courtesy of BMW OF NORTH AMERICA, INC.
