65 11 072 Removing and installing/replacing CD changer

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT TRIM ON SIDE PANEL ON RIGHT .
Disconnect BATTERY NEGATIVE LEAD .

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBERS .

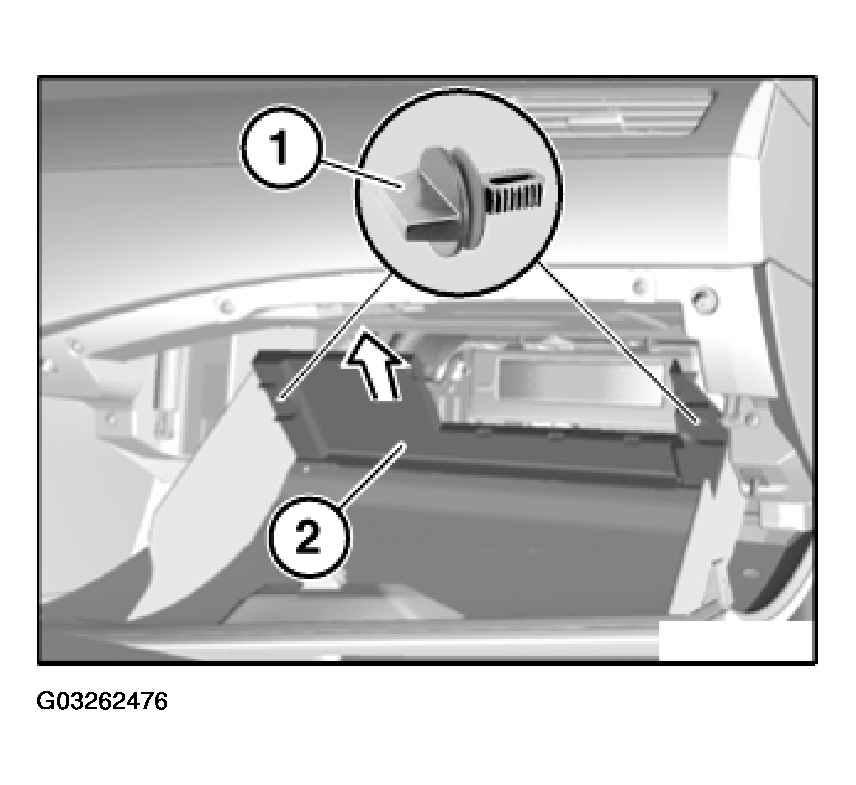

Open rotary clips (1) and remove.

Remove cover (2) in direction of arrow.

Fig 1: Removing Cover

G03262476

Courtesy of BMW OF NORTH AMERICA, INC.

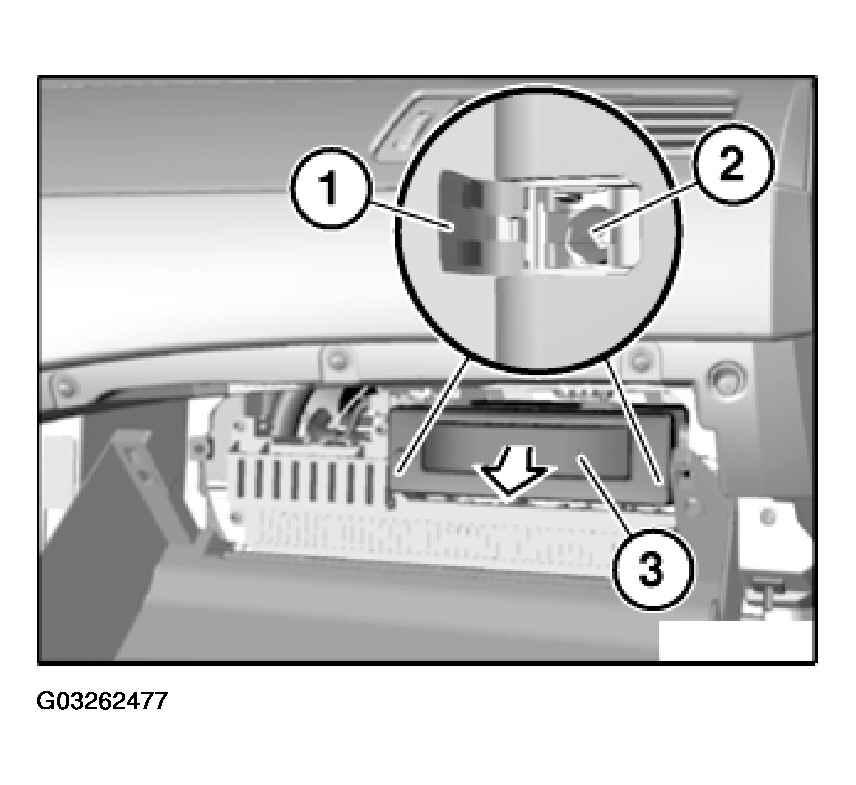

NOTE: Open glovebox.

Fold back covers (1) on CD changer (3).

Release screws (2).

Pull back CD changer (3) slightly.

Unlock and disconnect associated plug connection, remove CD changer (3).

Installation:

Tightening torque: 0.7 Nm

Observe tightening torque (risk of damage).

Fig 2: Removing CD Changer

G03262477

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When pushing CD changer in, lay associated wire harness carefully by hand. For this purpose, in advance:

Remove BOTTOM RIGHT TRIM PANEL FROM INSTRUMENT PANEL .

Replacement:

Carry out PROGRAMMING/CODING .
