65 12 230 Removing And Installing DAB Tuner

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

NOTE:

Comply with notes and instructions on HANDLING OPTICAL FIBERS .

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE LEAD .
Remove LUGGAGE COMPARTMENT TRIM on left side panel

Release screws (1).

Disconnect plug connections and remove bracket with DAB tuner (2).

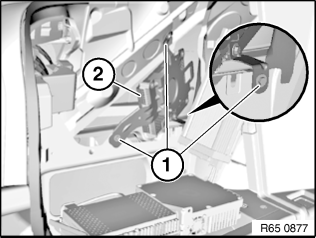

Fig 1: Identifying DAB Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1) and remove DAB tuner (2) from bracket (3).

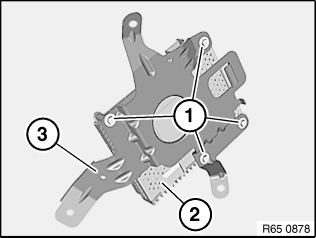

Fig 2: Identifying DAB Tuner, Bracket, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
