66 54 005 Removing and installing control unit for Night Vision System

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE LEAD .

Remove TRIM FOR INSTRUMENT PANEL ON RIGHT .

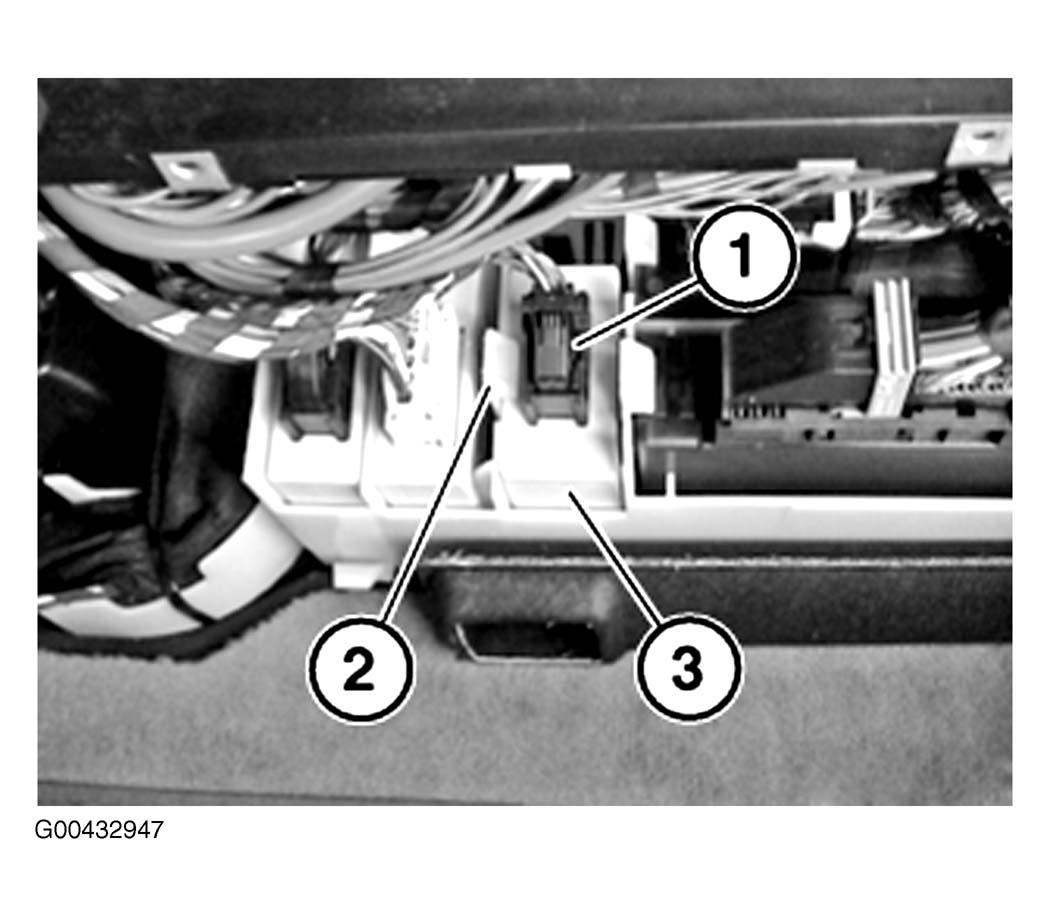

Disconnect plug connection (1). Press tab (2) to side and remove control unit (3) from module carrier.

Fig 1: Removing Control Unit From Module Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING .

NOTE:

New component contains a CD with deblocking code.

CD is requested during coding/programming by the SSS.
