65 83 590 Removing and installing/replacing gyro sensor drive for Car Communication Computer
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
Necessary preliminary tasks:
- Remove CAR COMMUNICATION COMPUTER .
If necessary, cut through warranty seal.

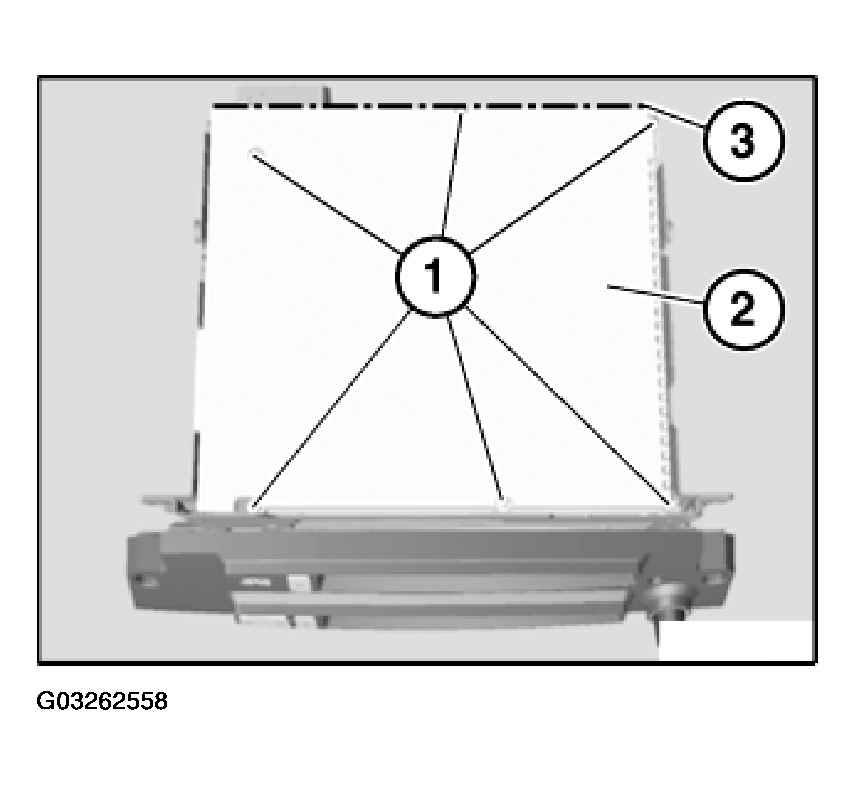

Release bolts (1).
Remove floor pan (2) towards bottom and set down.
IMPORTANT:
Contact spring strip (3) on floor pan (2) must not be bent: otherwise risk of short-circuiting!
When reinstalling floor pan (2), make sure individual springs of contact spring strip (3) are correctly seated.

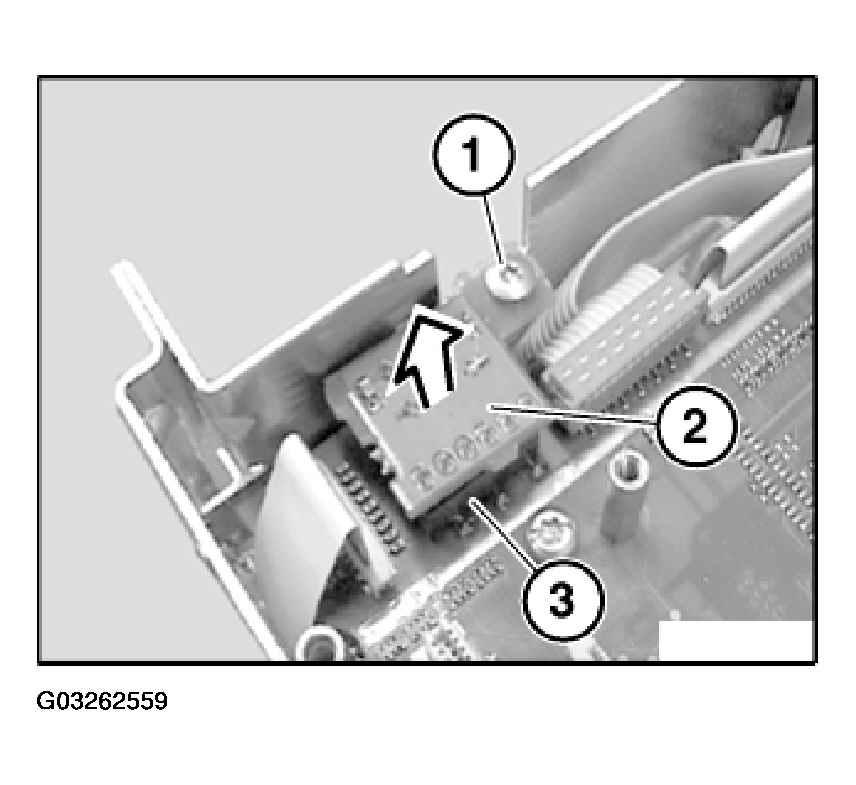

Release bolt (1).
Detach gyro sensor for Car Communication Computer (2) in direction of arrow from plug-in contact (3).
