65 83 550 Removing and installing/replacing fan for Car Communication Computer

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove CAR COMMUNICATION COMPUTER .

Raise retaining hook (1) and turn fan for Car Communication Computer (2) in direction of arrow.

Remove fan for Car Communication Computer (2) from Car Communication Computer (3).

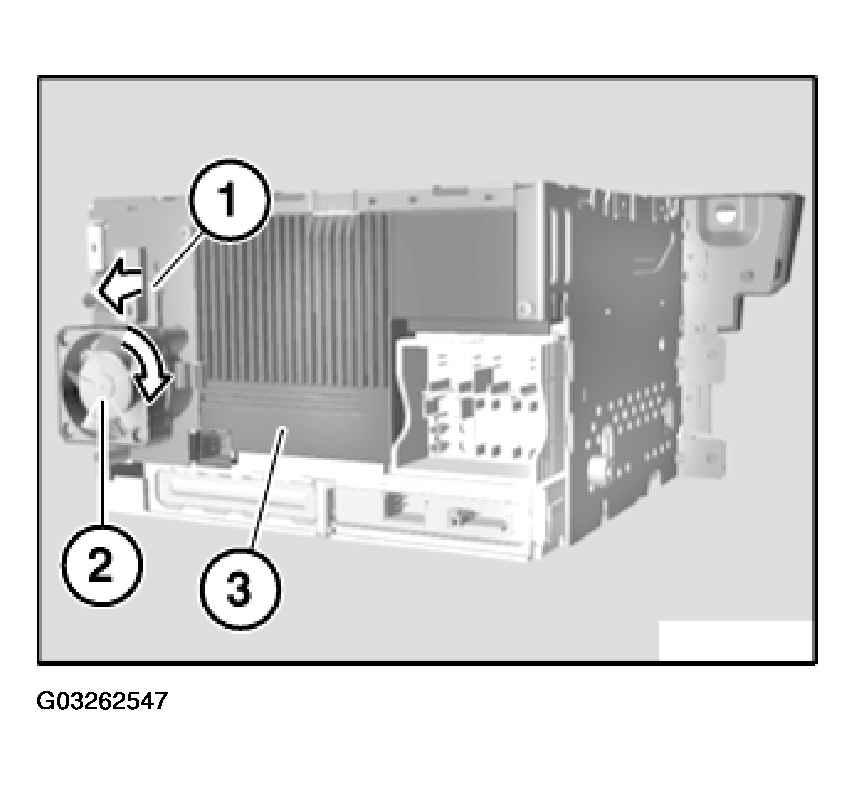

Fig 1: Removing Fan For Car Communication Computer From Car Communication Computer

Courtesy of BMW OF NORTH AMERICA, INC.
