65 77 541 Removing and installing/replacing front left or right acceleration sensor
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Acceleration sensor only fitted in US version!
Necessary preliminary tasks:
- Remove FRONT BUMPER TRIM .

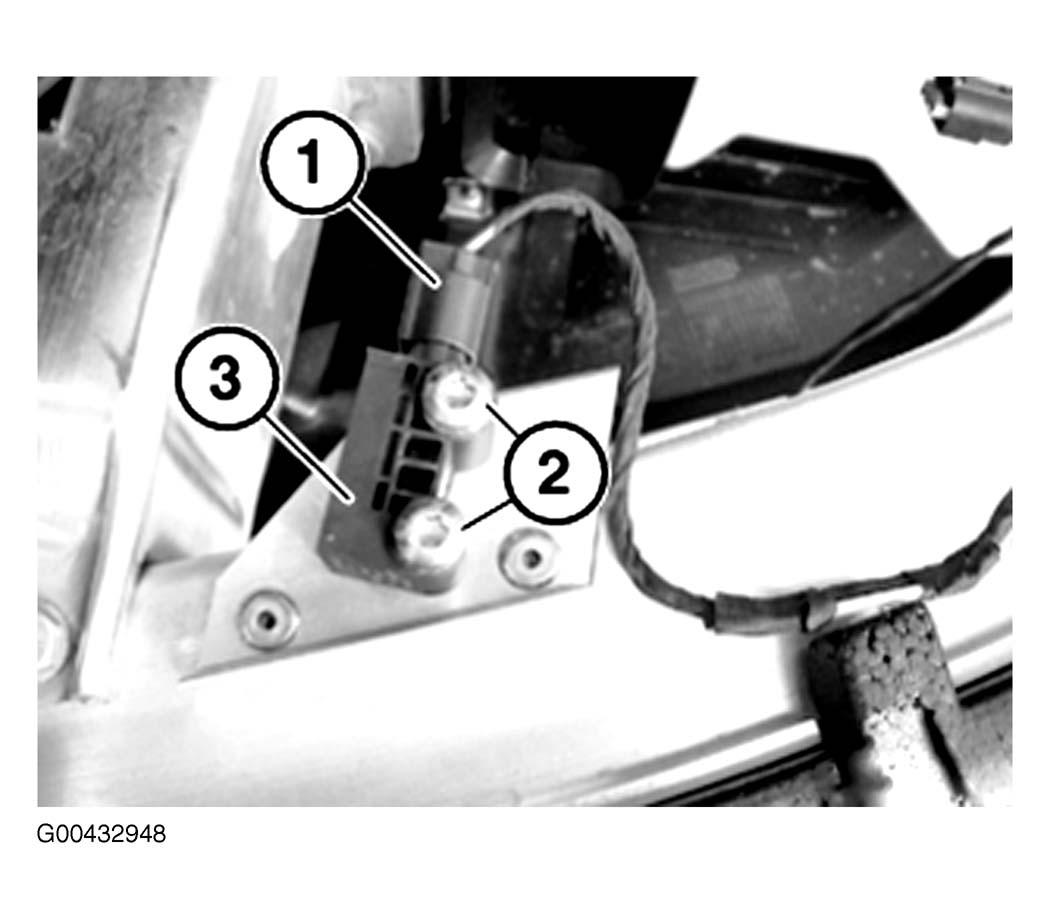

Disconnect plug connection (1).
Release screws (2) and remove acceleration sensor (3).
Installation:
Tightening torque: 7 Nm
Replace screws (2).
