63 12 950 Replacing a lower holder for headlight mounting

WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove headlight. See 63 12 010 Removing And Installing/Replacing Left Headlight (Xenon Headlight) .

Release screws (1).

Remove holder (2) in direction of arrow from headlight (3).

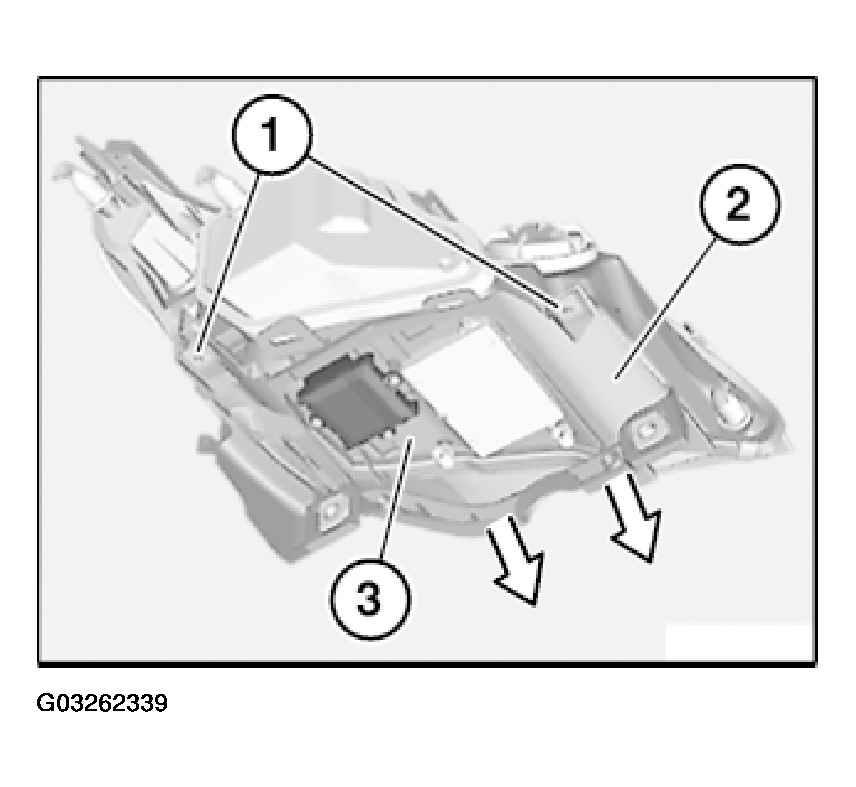

Fig 1: Removing Holder In Direction Of Arrow From Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Screws (1) are also used for gap adjustment.
