63 12 010 Removing and installing/replacing left headlight (xenon headlight)

WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

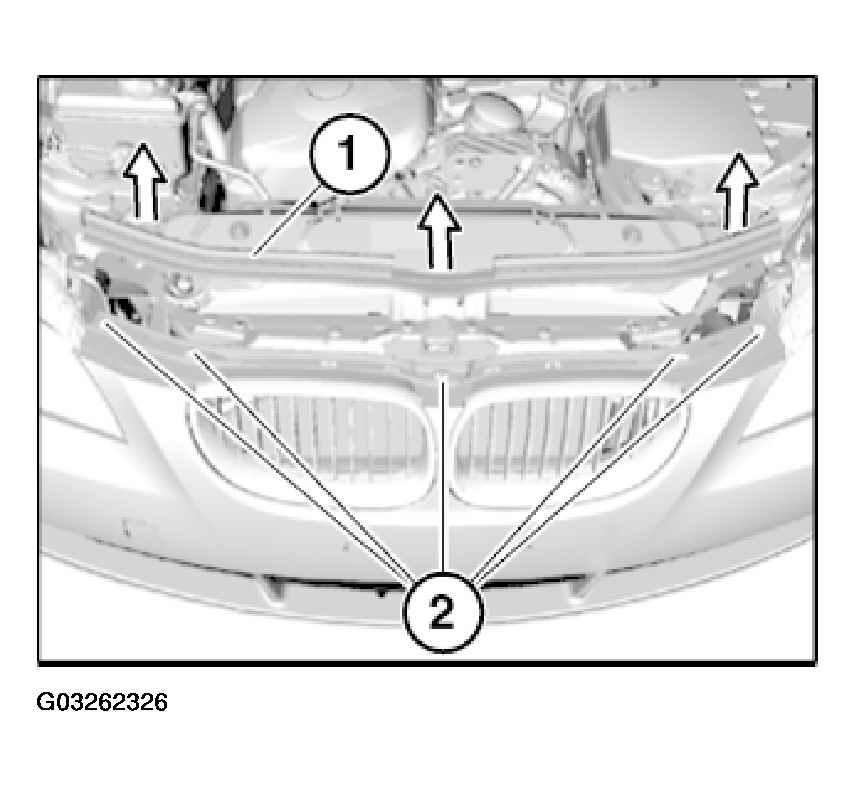

Unclip strip (1) in direction of arrow.

Release screws (2) underneath.

Fig 1: Uncliping Strip In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

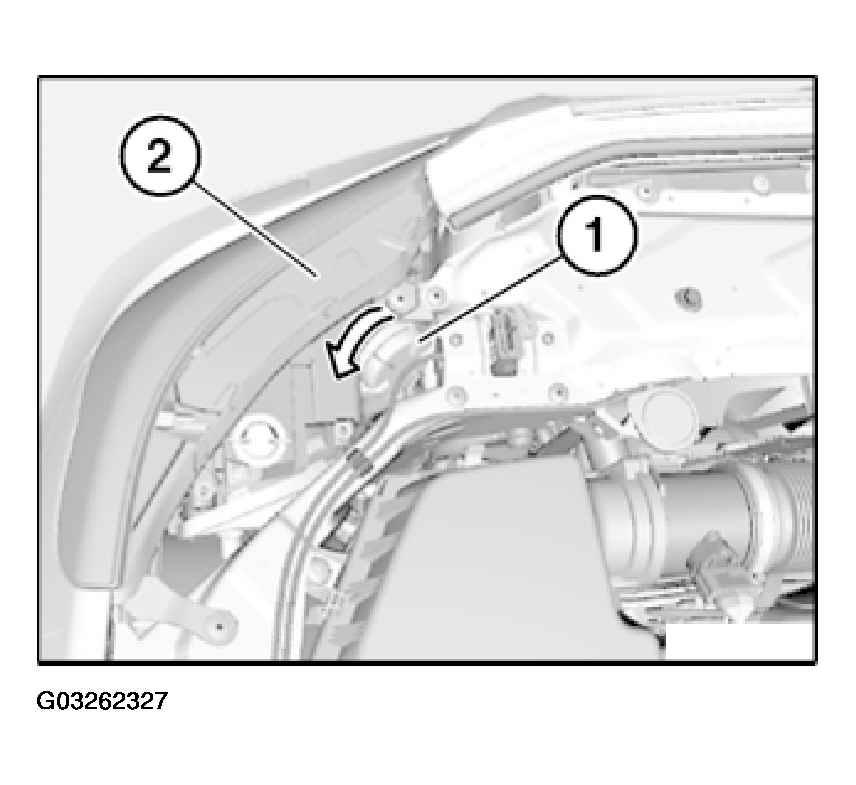

Turn cap (1) approx. 30° counterclockwise and remove from headlight (2).

Fig 2: Turning Cap Approx. 30° Counterclockwise And Removing From Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

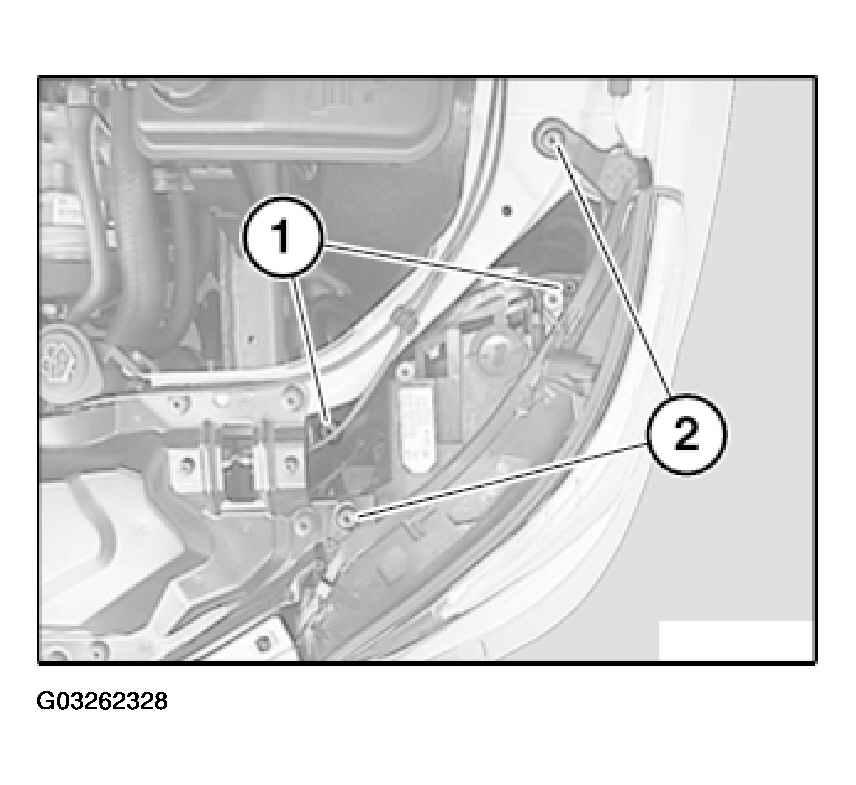

Loosen screws (1).

Release screws (2).

Installation:

Observe gap dimensions.
Adjust headlights.

Fig 3: Loosening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

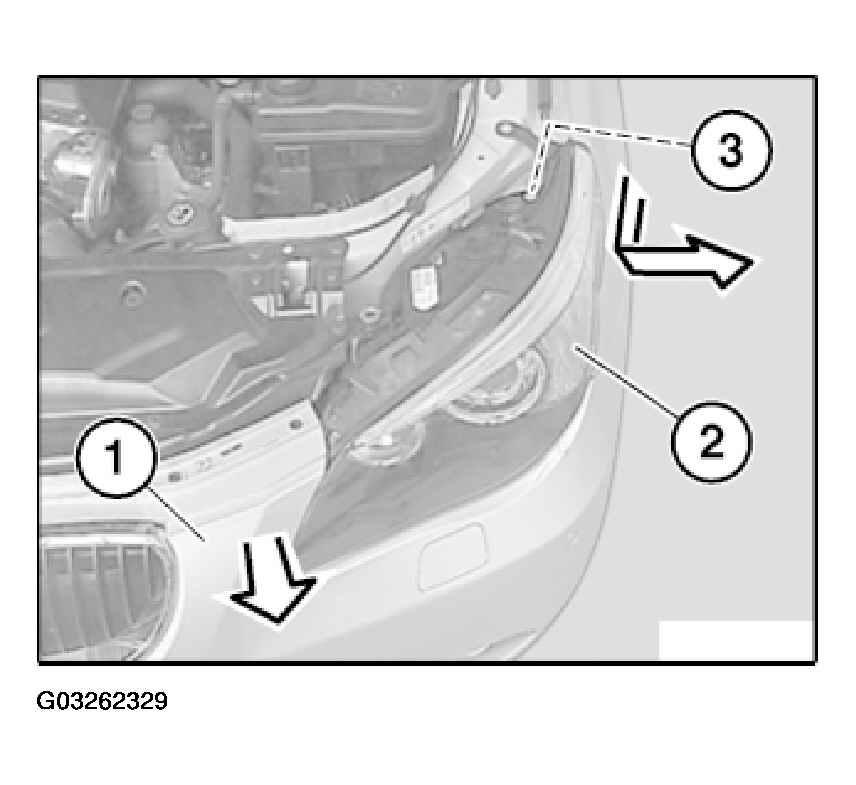

Pull bumper panel (1) forwards slightly and feed out headlight (2) in direction of arrow.

Installation:

Make sure headlight (2) is correctly seated in lower holder.

Unlock and disconnect associated plug connections (3).

Remove headlight (2).

Fig 4: Unlocking And Disconnecting Associated Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

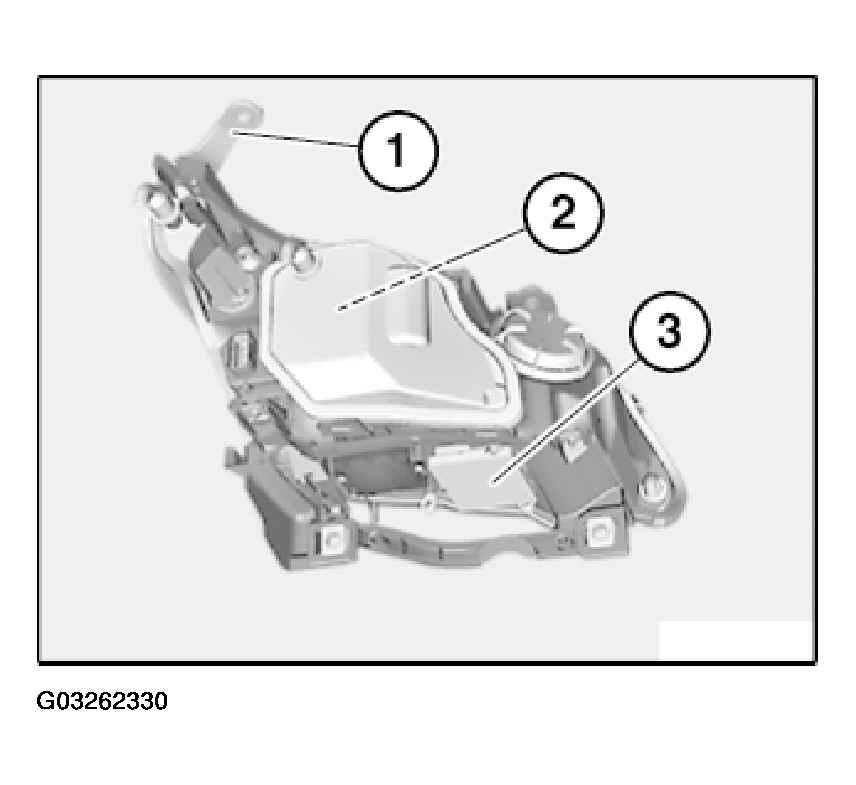

Unclip headlight holder (1) and remove.
Remove ignition unit and bulb for xenon headlight (2).
Remove control unit for xenon headlight (3).

Fig 5: Removing Ignition Unit And Bulb For Xenon Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

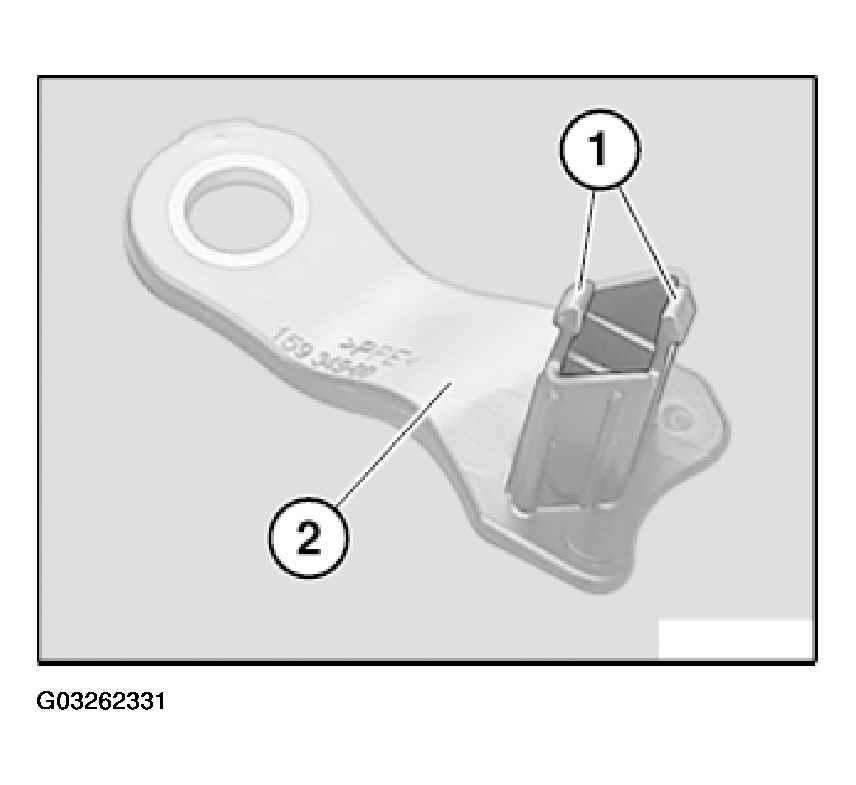

Retaining lugs (1) on headlight holder (2) must not be damaged.

Make sure headlight holder (2) is correctly engaged on headlight.

Fig 6: Identifying Retaining Lugs On Headlight Holder

Courtesy of BMW OF NORTH AMERICA, INC.
