63 12 895 Replacing drive for left adaptive headlight

WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). See 61 35... NOTES ON ESD PROTECTION .

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.

Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

Necessary preliminary tasks:

Remove left headlight. See 63 12 010 Removing And Installing/Replacing Left Headlight (Xenon Headlight) .

Release screws (1).

Remove drive for adaptive headlight (2) from headlight (3).

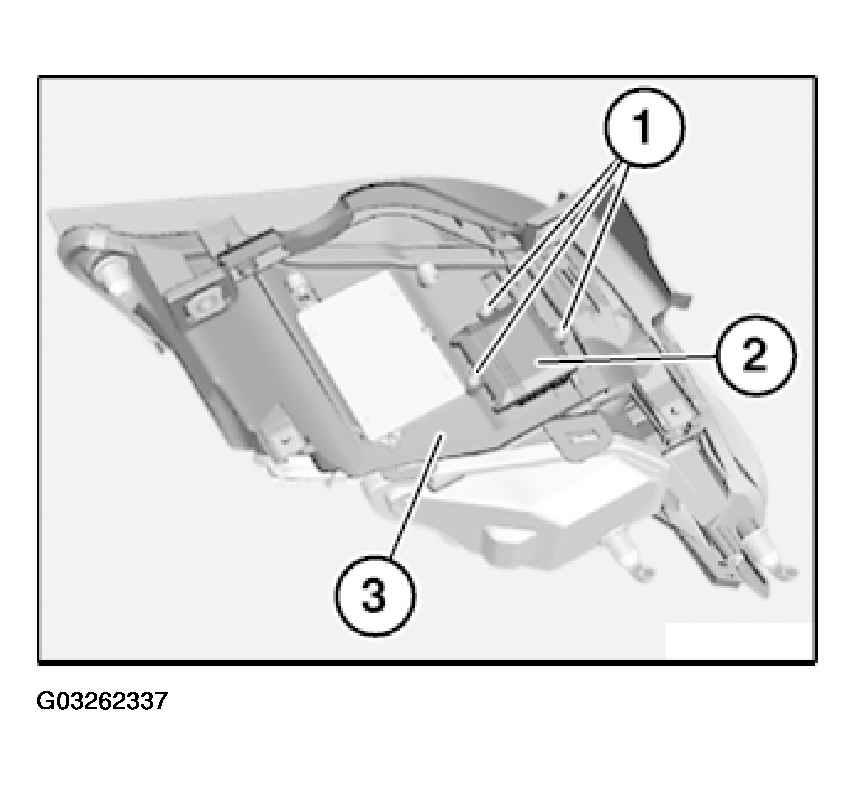

Fig 1: Removing Drive For Adaptive Headlight From Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit drive for adaptive headlight (1) exactly on headlight.

Make sure pin housing (2) is correctly seated in plug housing (3).

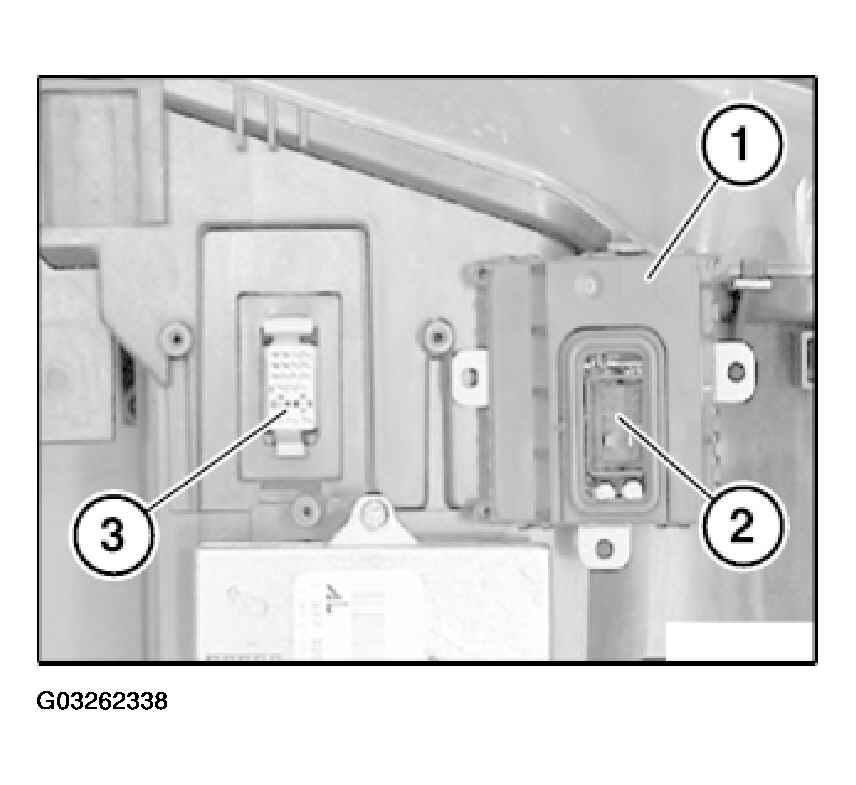

Fig 2: Fitting Drive For Adaptive Headlight Exactly On Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out coding/programming with BMW scan tool.
