61 61 270 Removing and installing console for windshield wiper system completely with motor
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove COWL PANEL COVER .
- Remove TENSION STRUT ON SPRING STRUT DOME .
- Remove FRESH AIR DUCT .
IMPORTANT:
Before fitting windshield wiper arms, allow wiper motor to run into rest position.

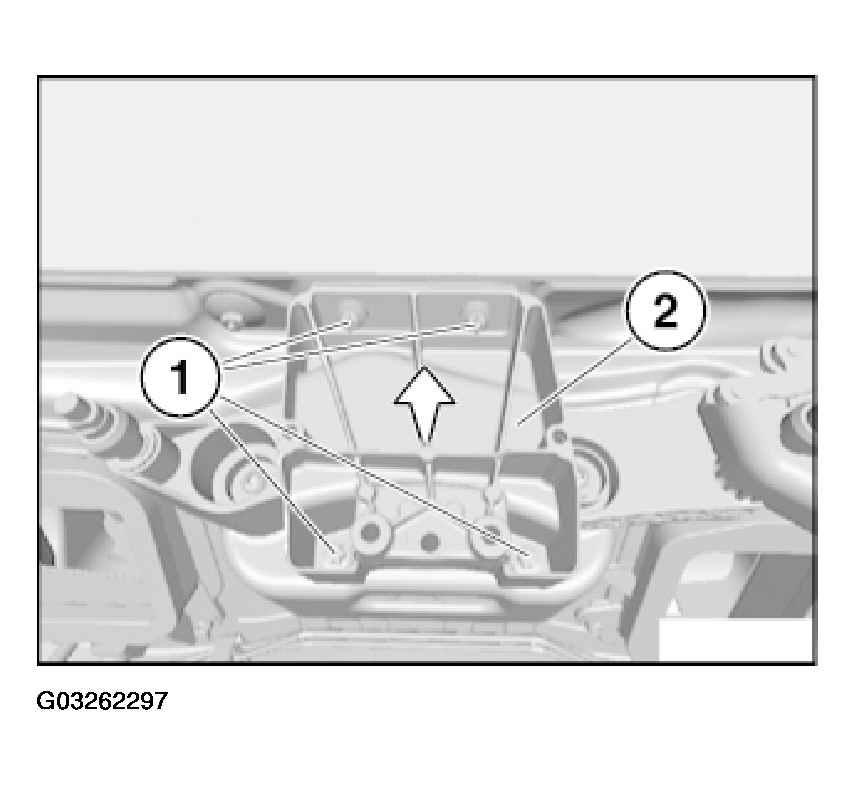

Release screws (1).
Installation:
Tightening torque: 24 Nm

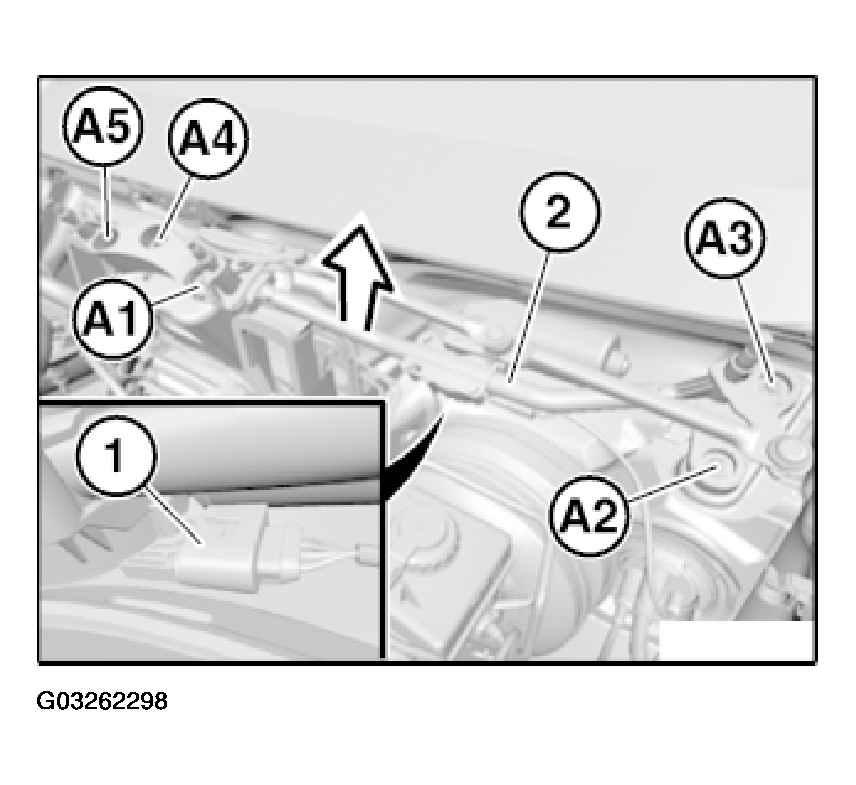

Remove cross-strut bearing block (2) in direction of arrow.
Unfasten plug connection (1) and disconnect.
Release screws (A5...A1).
Installation:
Insert screws (A1...A5) in specified sequence until hand-tight. To tighten down screw (A2), if necessary move complete wiper console linkage (2) into reversal position.
Tighten down screws (A1...A5) in specified sequence.
Tightening torque: 10 Nm
Lever out complete wiper console (2) in direction of arrow.
