51 13 115 Removing and installing/replacing cowl panel cover
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove BOTH WINDSHIELD WIPER ARMS .
- Remove LOWER MICROFILTER HOUSING SECTION on left and right.

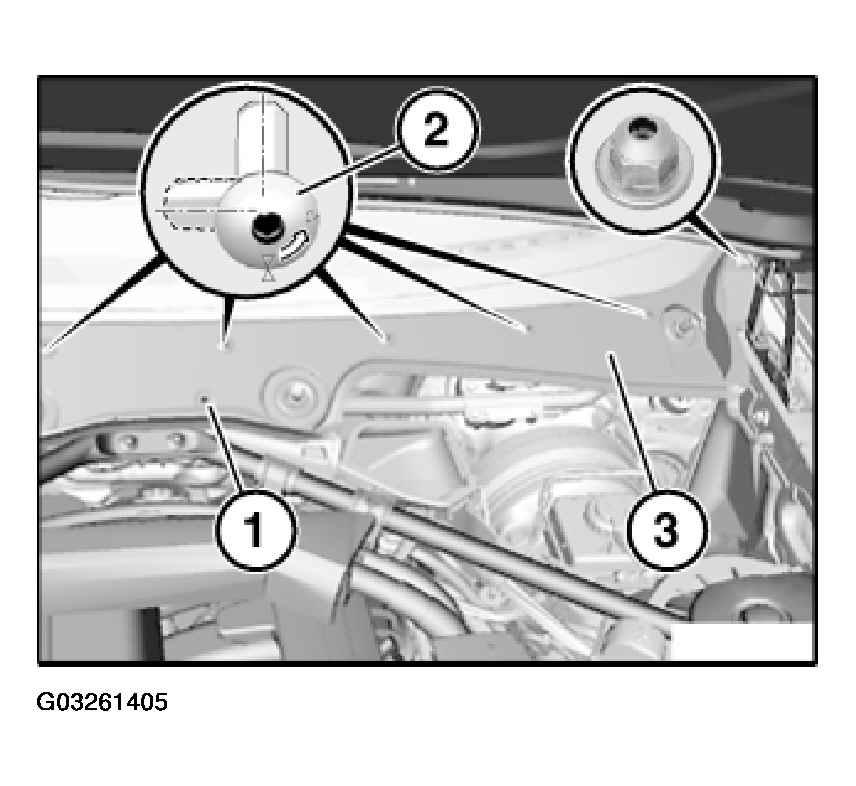

Release plastic nut on left/right.
Turn quick-release fasteners (2) approx. 90° counterclockwise.
NOTE:
The fastener is closed if the arrow tips point to each other.
Release screw (1).
Remove cowl panel cover towards top.
Installation:
Tighten down screw (1) to tightening torque: see 5AZ in 51 13 TRIM PARTS, COVERS, HANDLE TRIM .
Check cover (3) for correct seating.
Tighten quick-release fasteners (2) from the middle.
