61 31 310 Replacing brake light switch
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TRIM PANEL FOR PEDAL ASSEMBLY .

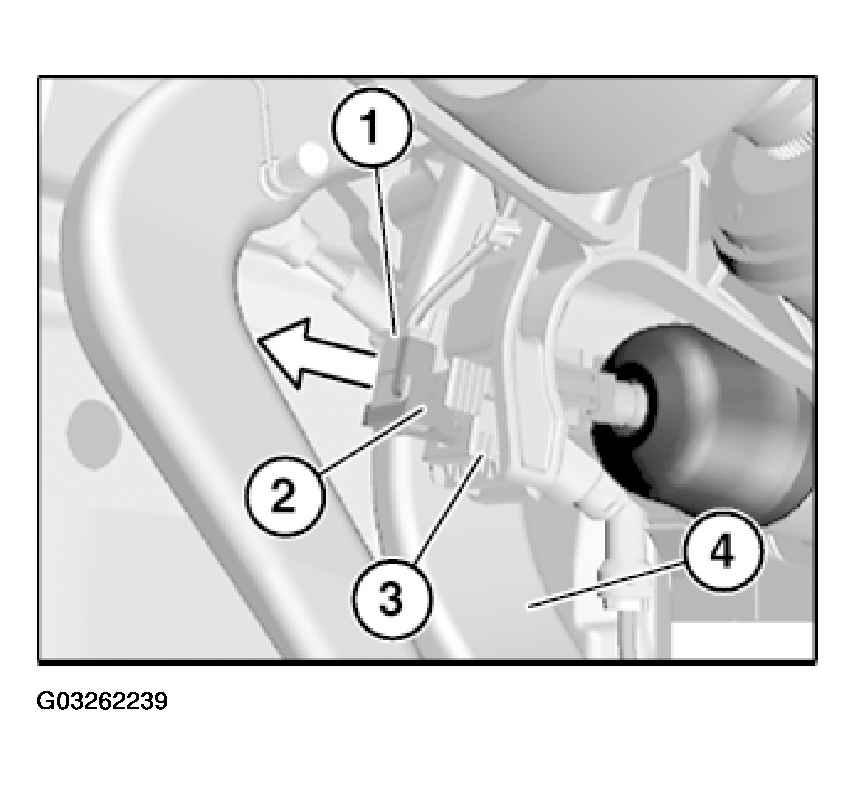

Unfasten plug connection (1) and disconnect.
Pull brake light switch (2) in direction of arrow out of brake light switch holder (3).
Installation:
- Press brake pedal (4) to floor.
- Slide brake light switch (2) as far as it will go into brake light switch holder (3).
- Grip brake light switch holder (3), slowly return brake pedal (4) to starting position and pull back to stop .
NOTE:

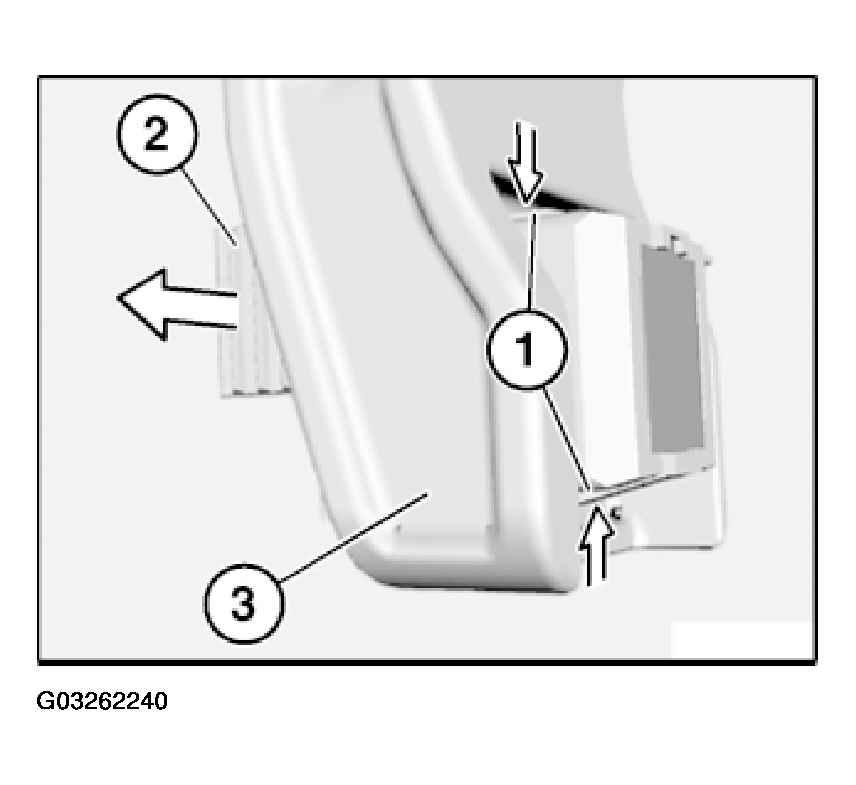

Removing brake light switch holder (2):
Press brake pedal.
Press catches (1) together and unclip brake light switch holder (2) from bearing block (3).
