61 31 204 Replacing seat adjustment switch combination (semi-electric front seat)

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove OUTER COVER ON FRONT SEAT .

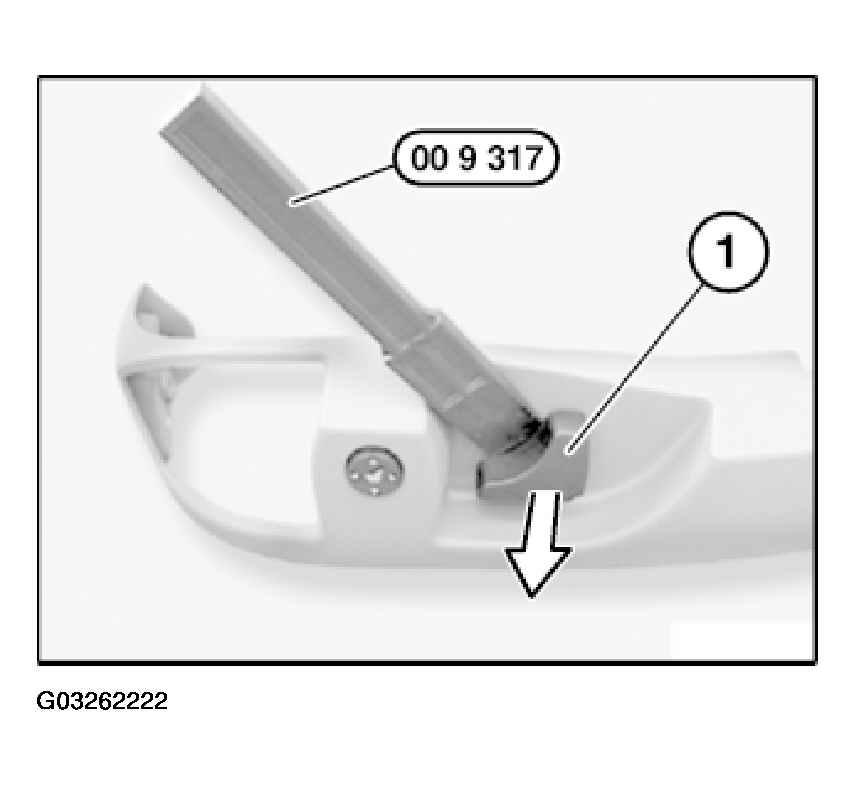

Lever out seat adjustment control button (1) with special tool 00 9 317 in direction of arrow.

Fig 1: Removing Seat Adjustment Control Button

Courtesy of BMW OF NORTH AMERICA, INC.

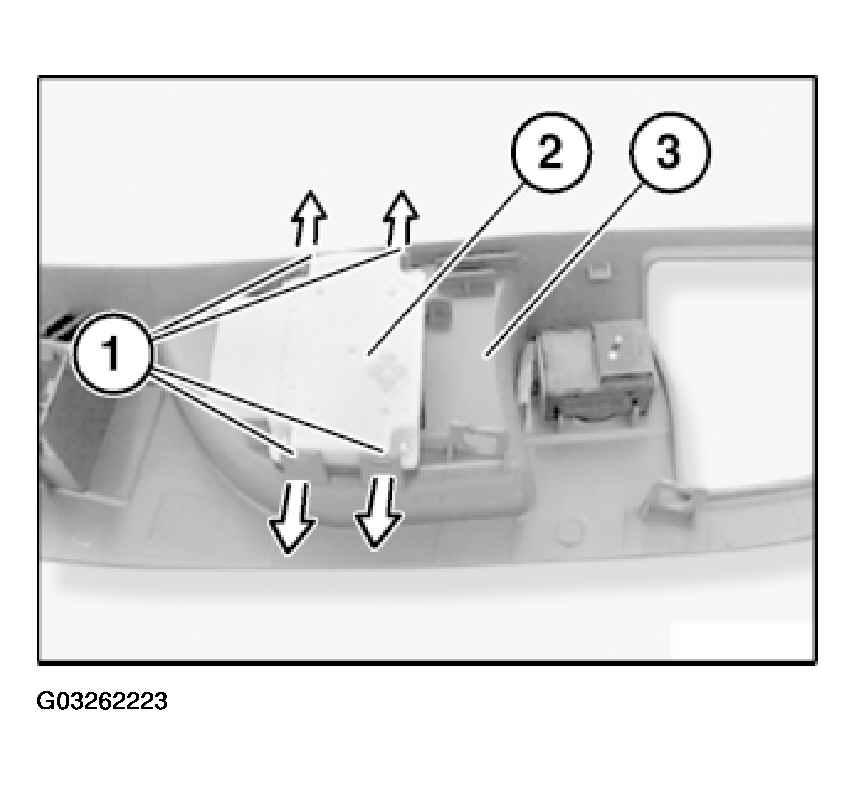

Unlock catches (1) in direction of arrow and remove seat adjustment switch combination (2) from cover (3).

Fig 2: Removing Seat Adjustment Switch Combination From Cover

Courtesy of BMW OF NORTH AMERICA, INC.
