52 14 040 Removing and installing/replacing outer cover on left or right front seat (basic/electric)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, move seat fully forwards and upwards.

Remove trim:

Unclip at rear towards top side
Pull on belt opening to one side
Bend trim open slightly at top and bottom on actuating unit
Bend open slightly at top and bottom and pull outwards a little

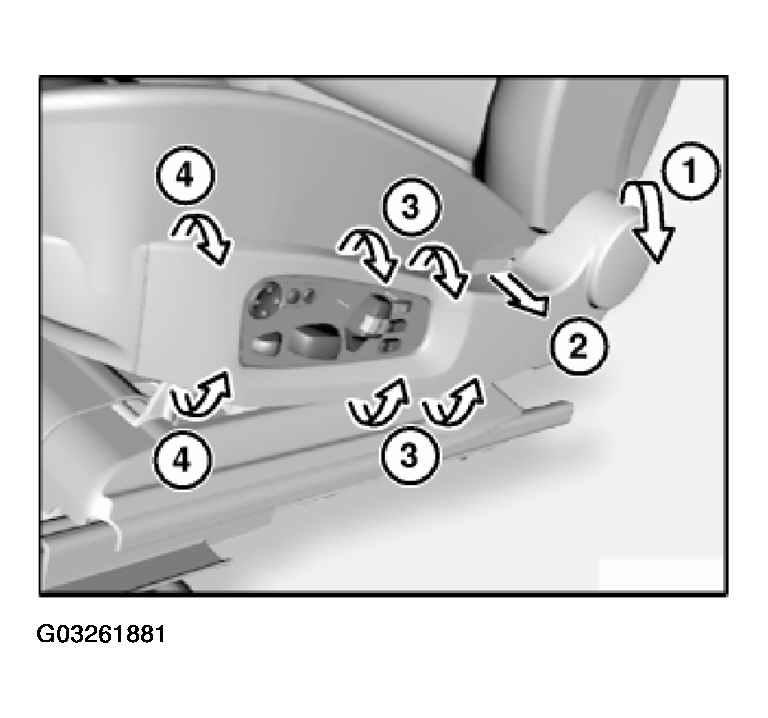

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining clips must not be damaged.

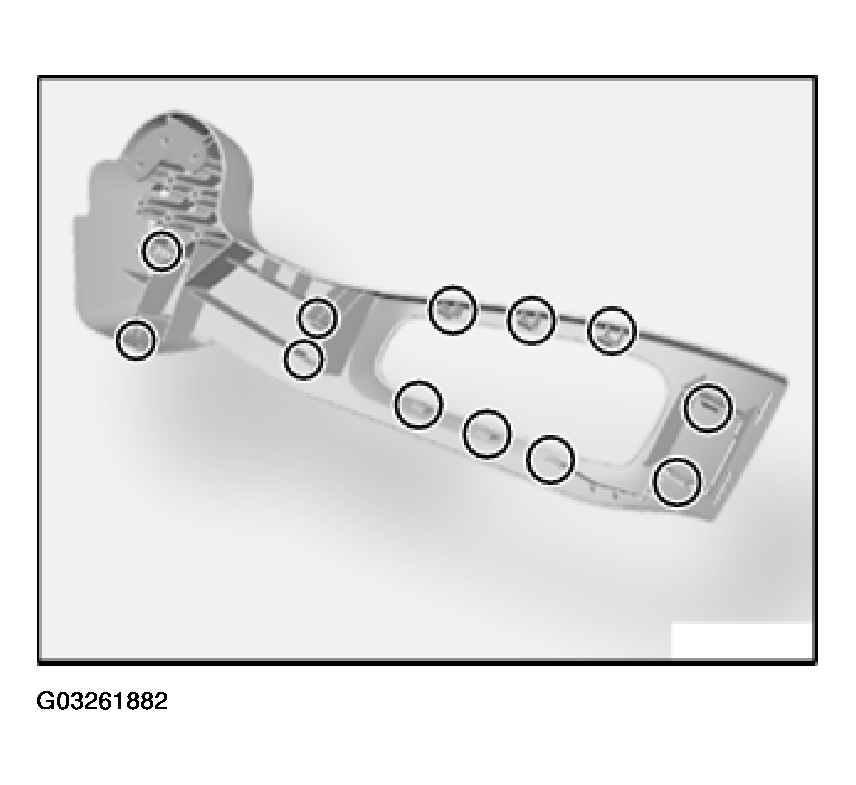

Fig 2: Checking Retaining Clips For Damage

Courtesy of BMW OF NORTH AMERICA, INC.
