61 31 203 Replacing seat adjustment switch combination (fully electric front seat)
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove OUTER COVER ON FRONT SEAT .

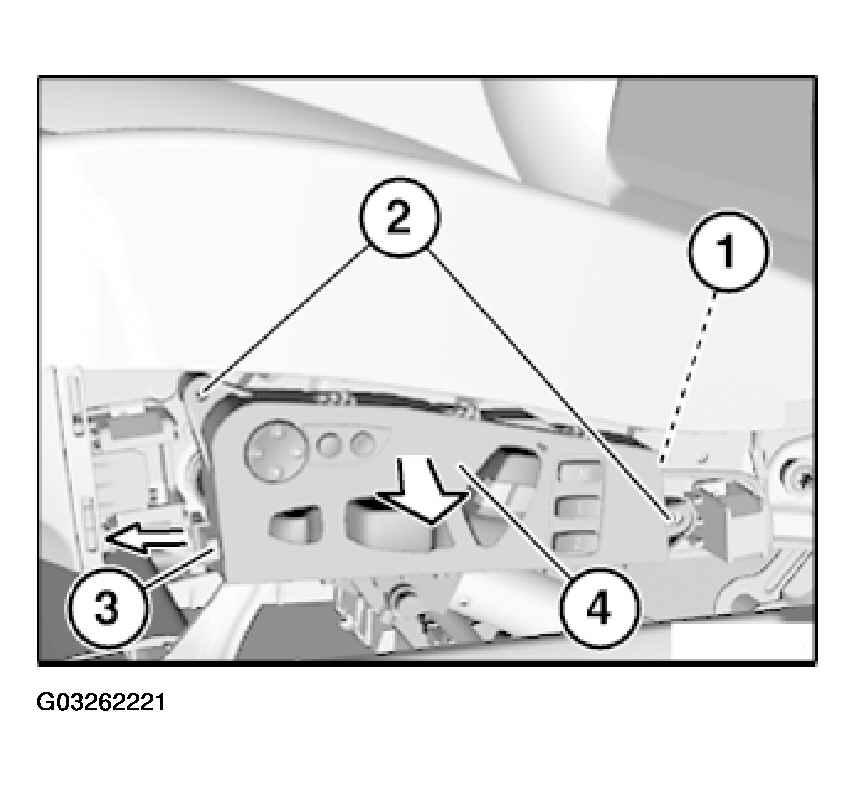

Unfasten plug connection (1) and disconnect.
Loosen screws (2).
Unlock catch (3) in direction of arrow and remove seat adjustment switch combination (4) towards front.
