61 31 135 Removing and installing/replacing headphones connection socket

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR INSERT (IN STORAGE COMPARTMENT) .

Press locks (1) together, feed headphones connection socket (2) out of rear insert (3) and remove.

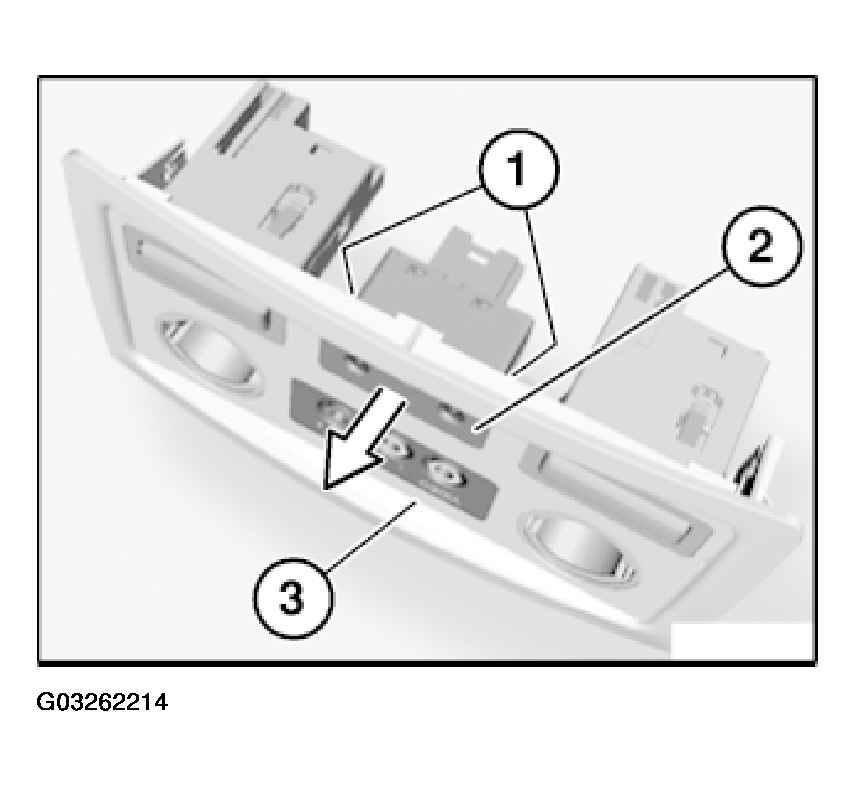

Fig 1: Feeding Headphones Connection Socket (2) Out Of Rear Insert (3)

Courtesy of BMW OF NORTH AMERICA, INC.
