51 16... Removing and installing/replacing rear insert (in storage compartment)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

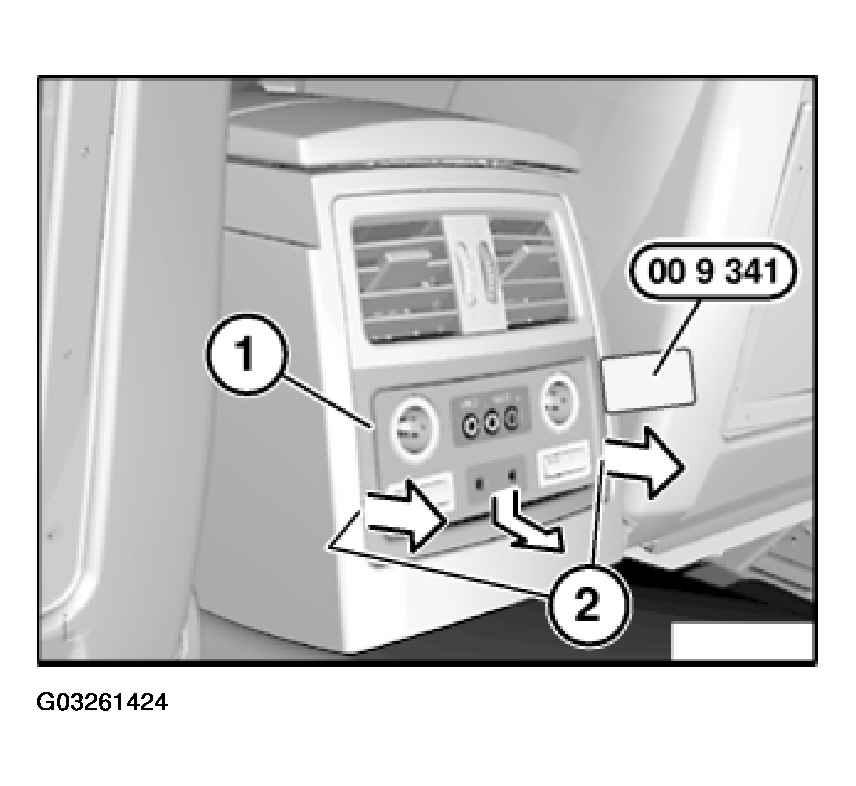

Unclip rear insert (1) with special tool 00 9 341 (removal aide) at retaining points (2) and pull back in direction of arrow.
Disconnect associated plug connections and remove rear insert (1).
