61 31 091 Removing and installing/replacing switch for left or right seat heating (rear)
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR INSERT (IN STORAGE COMPARTMENT) .
NOTE:

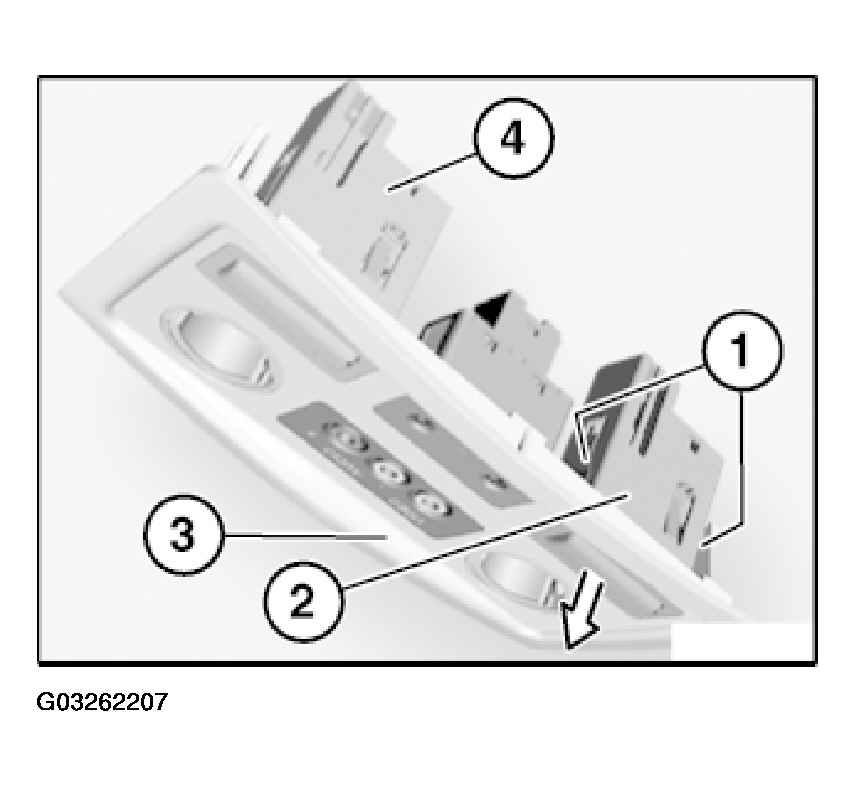

Removal of switch for left seat heating (2) is depicted.
Switch for right seat heating (4) is removed in the same way as switch for left seating (2). Press locks (1) together, feed switch for seat heating (2) out of rear insert (3) and remove.
Switch for right seat heating (4) is removed in the same way as switch for left seating (2). Press locks (1) together, feed switch for seat heating (2) out of rear insert (3) and remove.
