61 67 200 Removing and installing/replacing spray nozzle for night vision camera

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT BUMPER TRIM .

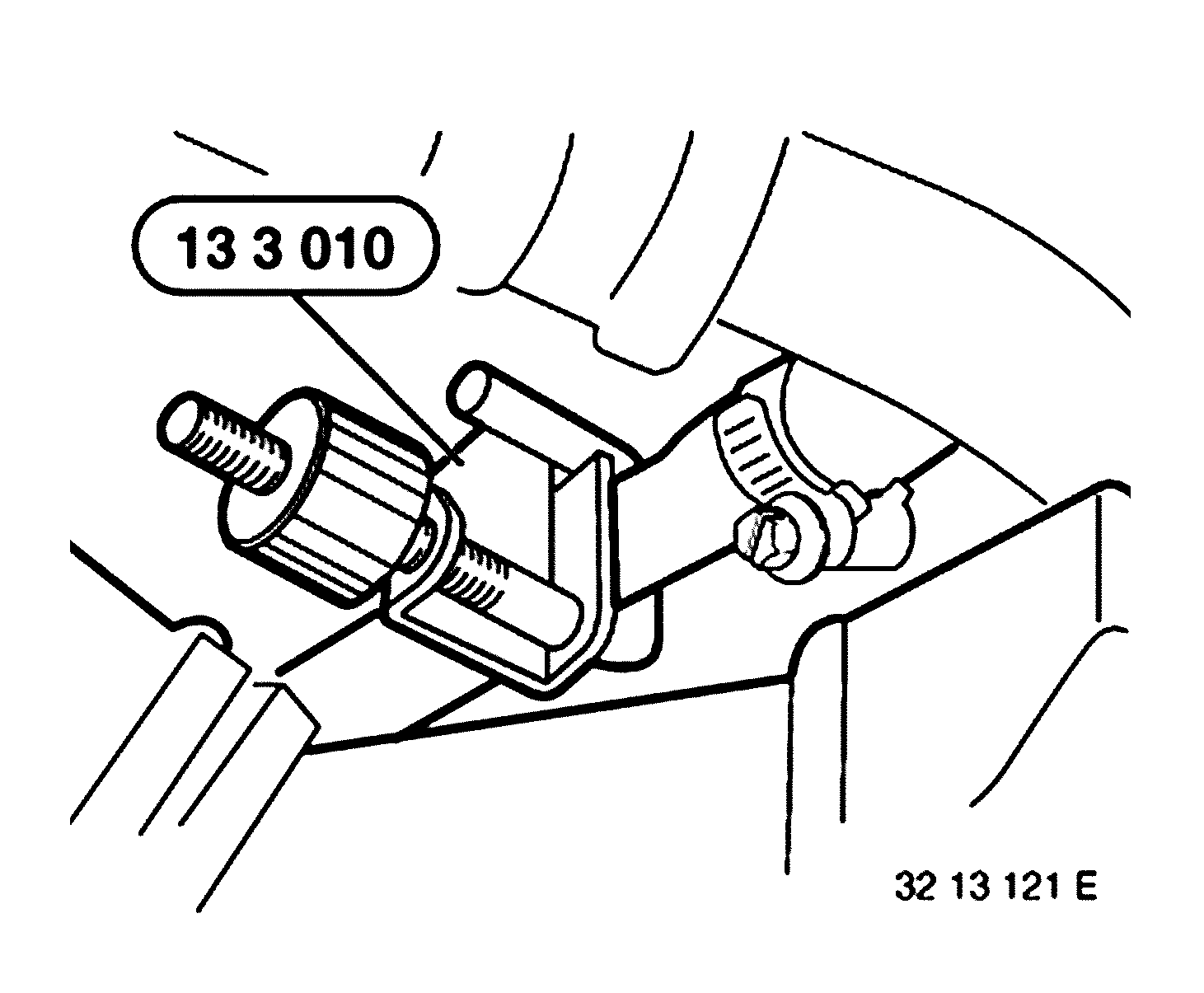

To prevent excess escape of washer fluid, seal off end of high-pressure line with special tool 13 3 010 .

Fig 1: Sealing High Pressure Line

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Night vision camera removed for purposes of clarity.

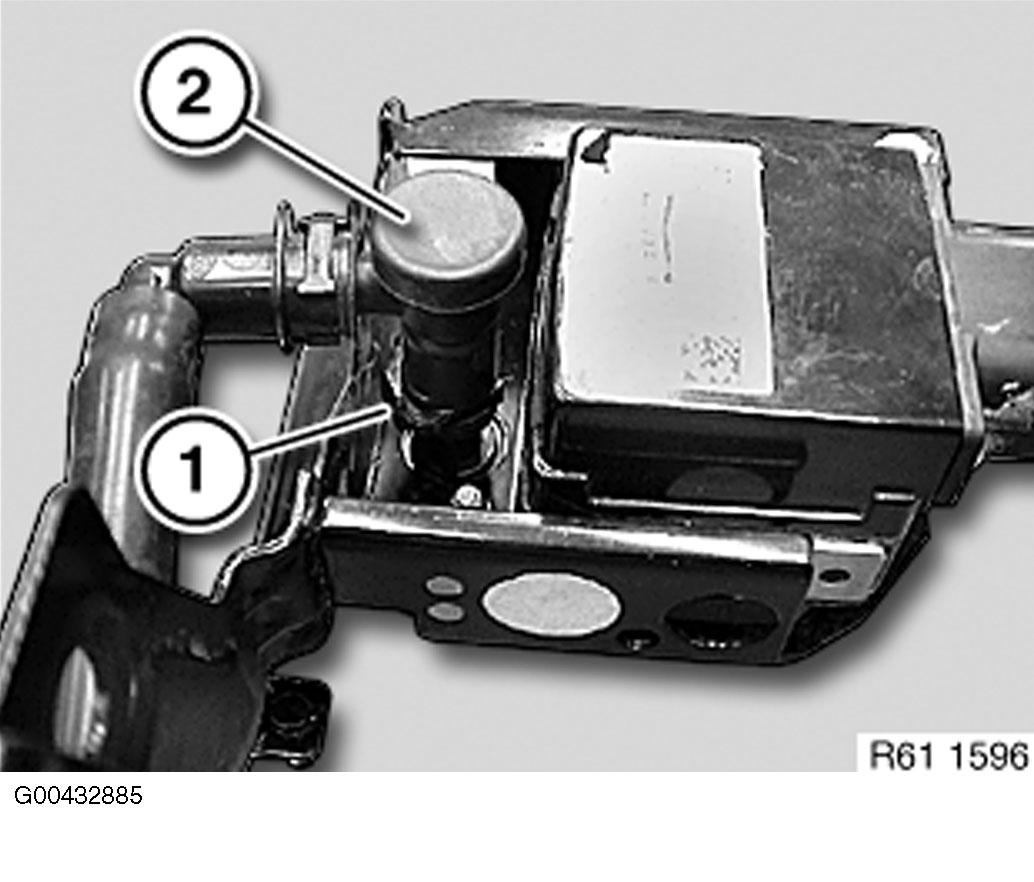

Press retainer (1) and detach high-pressure line (2) from high-pressure nozzle.

Fig 2: Detaching High-Pressure Line From High-Pressure Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

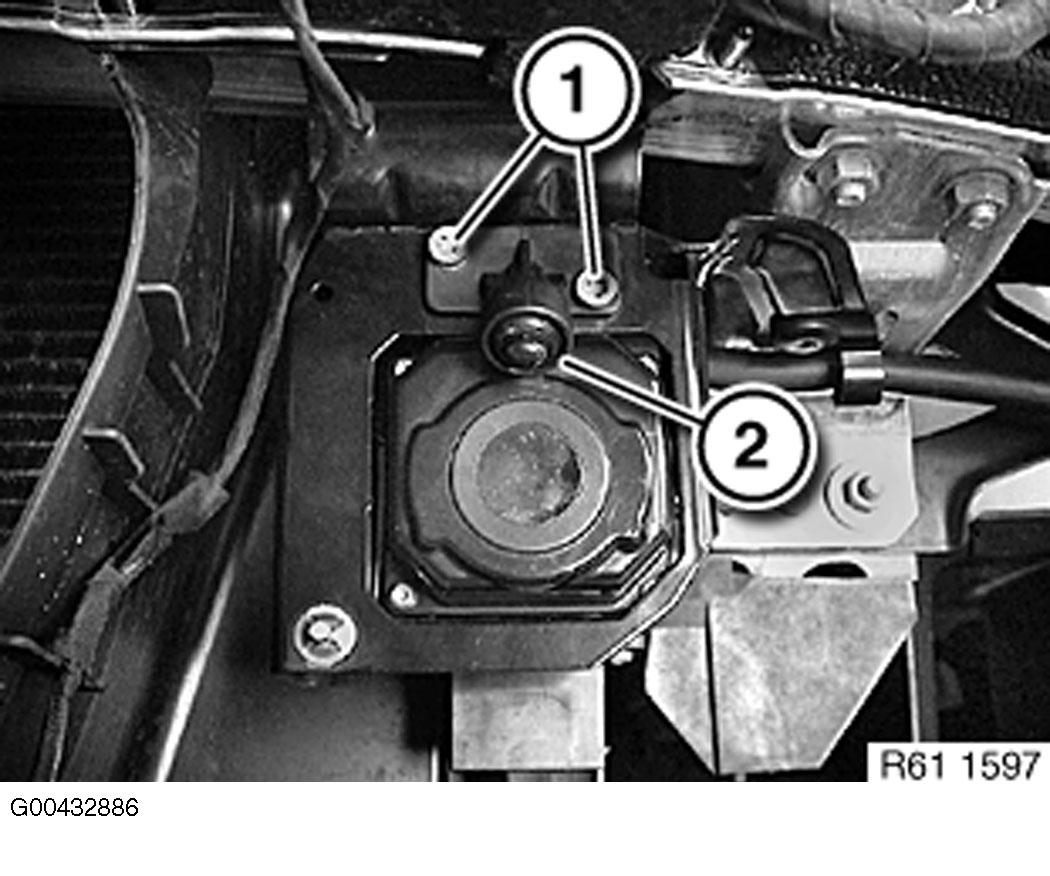

Release screws (1). Remove high-pressure nozzle (2). Installation: New spray nozzles are already preset. Check function.

Fig 3: Removing High-Pressure Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.
