61 67 083 Removing and installing/replacing left or right high-pressure nozzle of headlight cleaning system

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT BUMPER TRIM .

To prevent excessive escape of washer fluid, seal off end of high-pressure line with special tool 13 3 010 .

Fig 1: Identifying Seal Off End Of High-Pressure Line With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock high-pressure line (1) and detach from high-pressure nozzle (2).

Release screws (3).

Remove high-pressure nozzle (2).

Installation:

New spray nozzles are already preset.

Carry out a function test before fitting bumper trim.

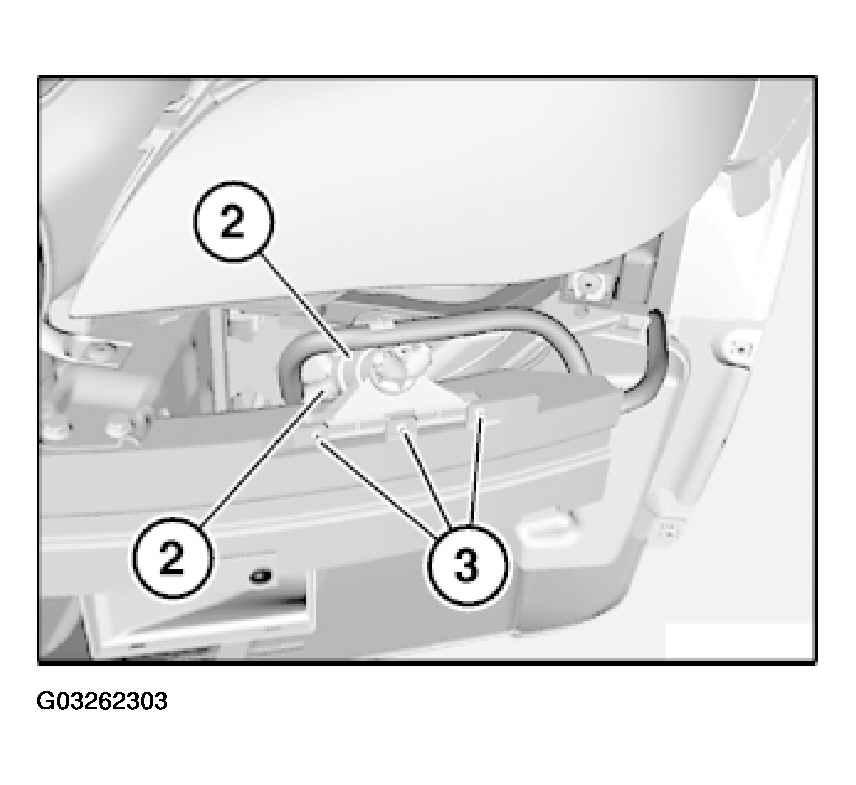

Fig 2: Removing High-Pressure Line And High-Pressure Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.
