61 35 953 Removing and installing/replacing interior antenna for comfort access system (front)

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove AUDIO SYSTEM CONTROLLER .
Remove STORAGE COMPARTMENT .

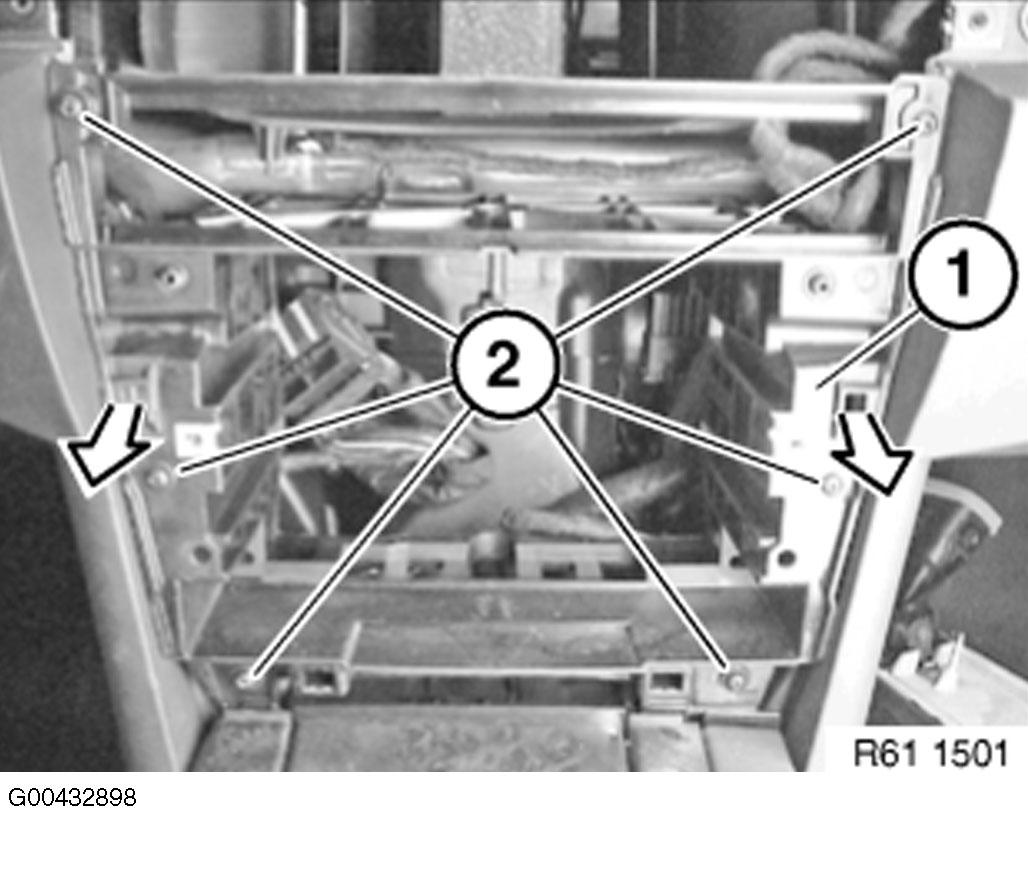

Unfasten screws (2). Remove middle function carrier (1) in direction of arrow.

Fig 1: Removing Middle Function Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

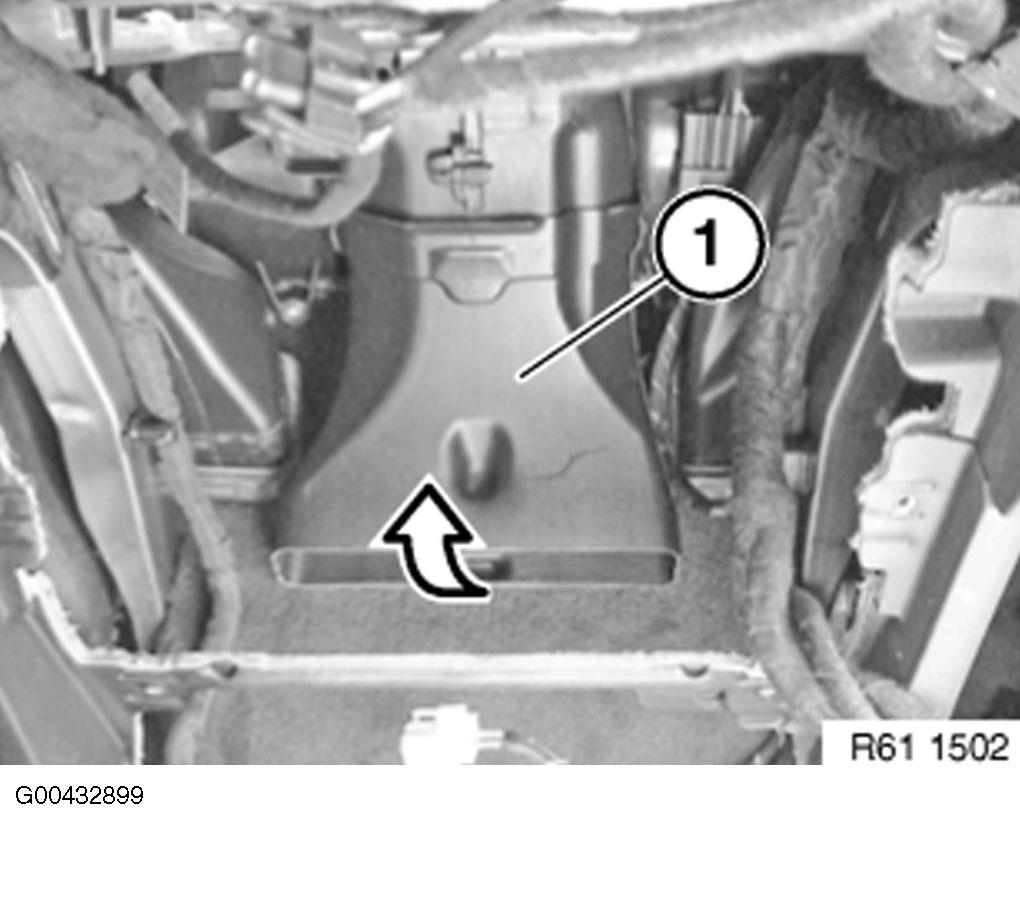

Remove middle air duct in direction of arrow.

Fig 2: Removing Middle Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

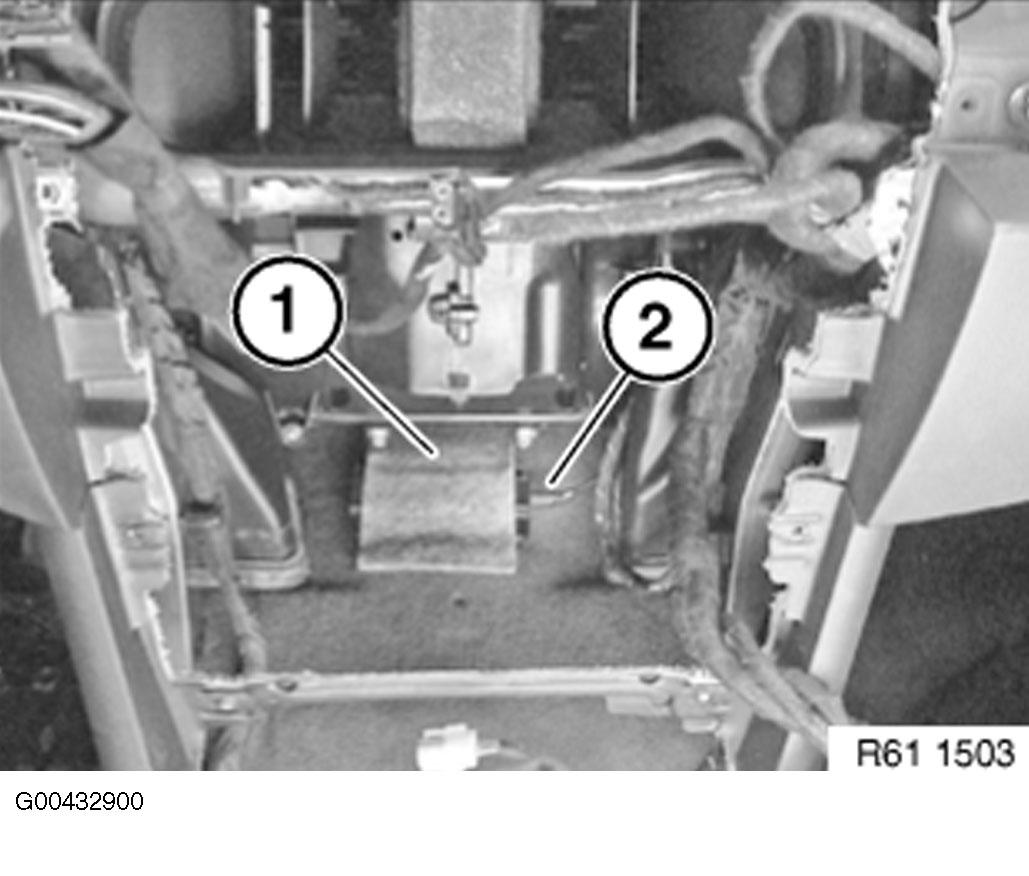

Detach felt (1) from interior antenna for comfort access system (2).

Fig 3: Detaching Felt From Interior Antenna

Courtesy of BMW OF NORTH AMERICA, INC.

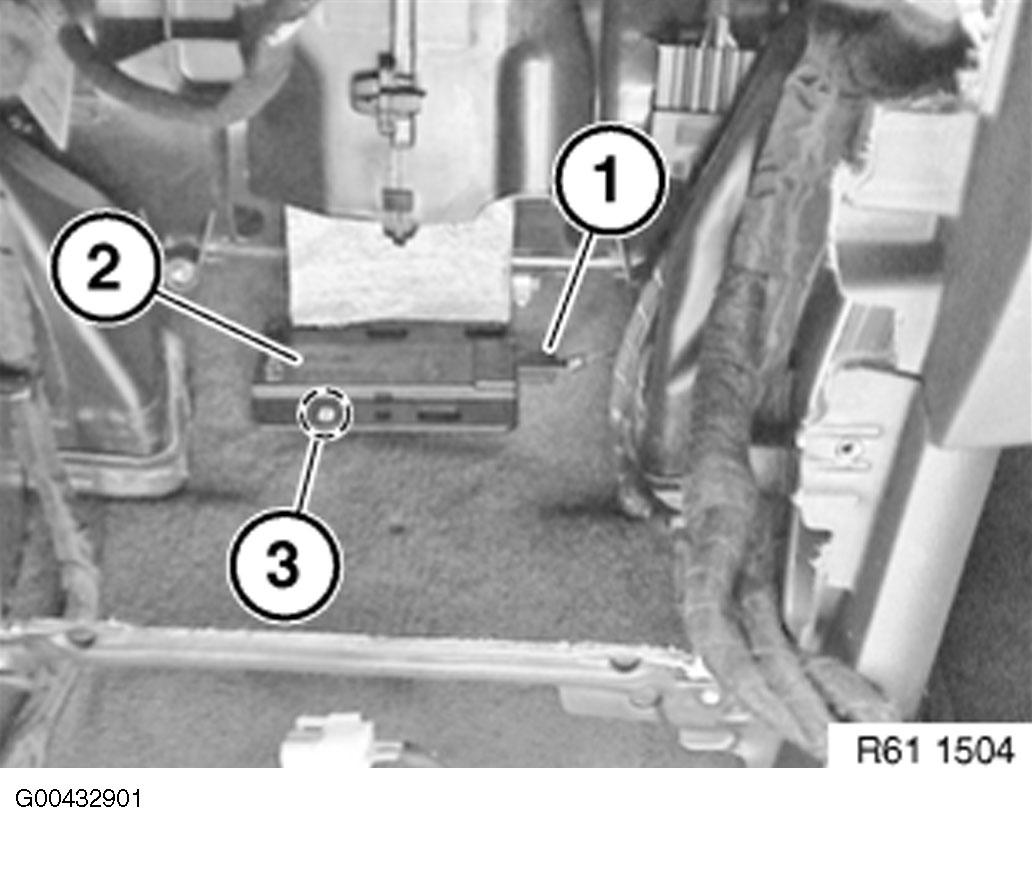

Disconnect plug connection (1). Unclip interior antenna for comfort access system (2) from clip (3).

Fig 4: Unclipping Interior Antenna For Comfort Access

Courtesy of BMW OF NORTH AMERICA, INC.
