61 35 795 Removing and installing (replacing) control unit for adaptive headlight

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove TRIM FOR INSTRUMENT PANEL, BOTTOM LEFT (same as right side)

Unlock catch (1) in direction of arrow.

Pull control unit for adaptive headlight (2) out of equipment carrier (3) slightly.

Unfasten plug connection (4) and disconnect.

Remove control unit for adaptive headlight (2).

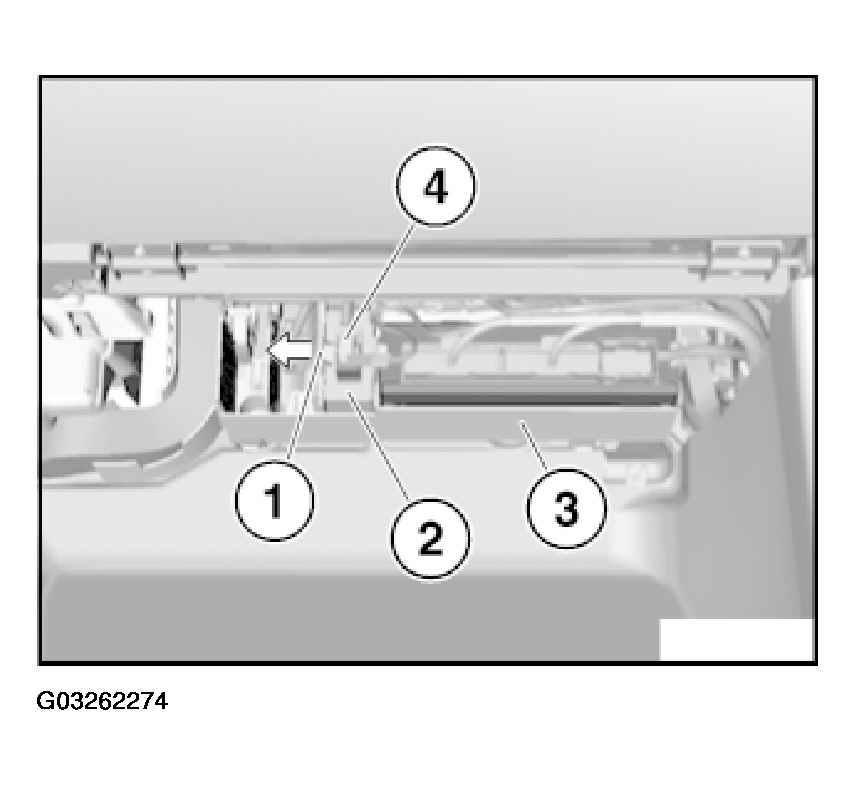

Fig 1: Removing Control Unit For Adaptive Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING .
