61 35 285 Removing and installing (replacing) light module

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove TRIM PANEL FOR PEDAL ASSEMBLY .

Unlock catch (1) and feed out/remove light module (2) in direction of arrow.

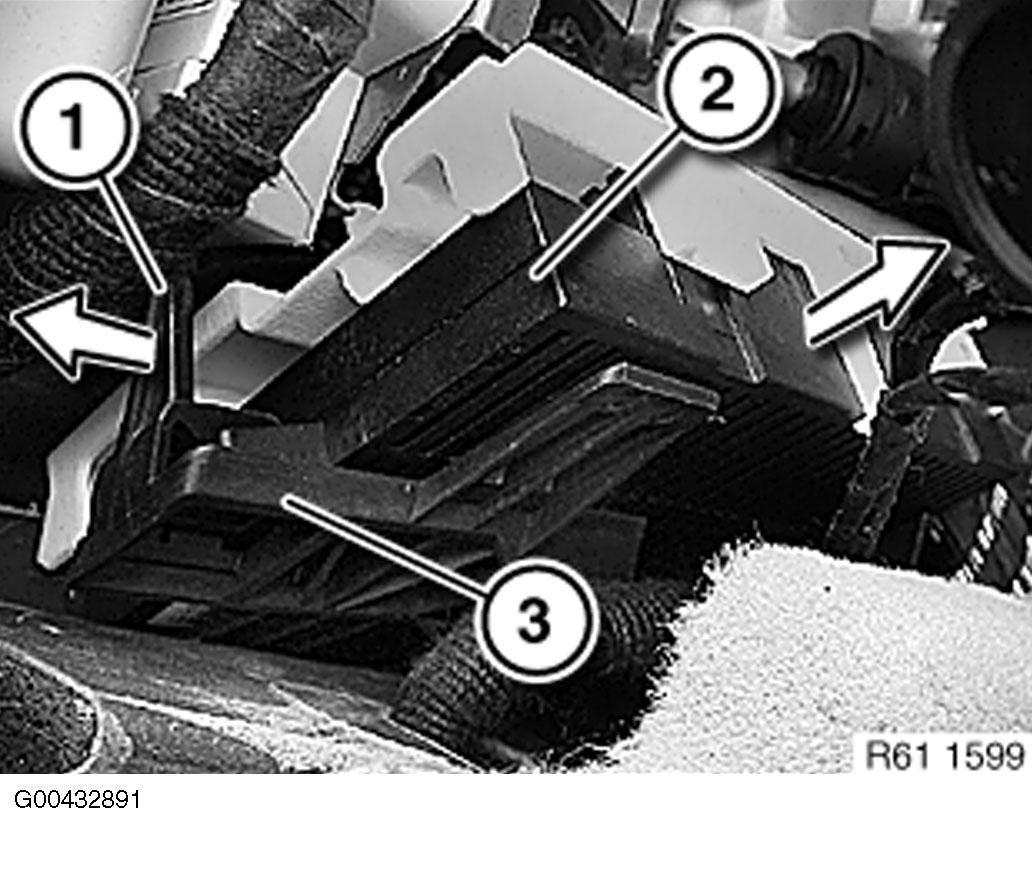

Fig 1: Removing Light Module

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure light module (2) is correctly seated in mounting (3) and catch (1).

If necessary, unlock catch (1) and remove cover (2) from light module (3).

Installation: Make sure cover (2) is correctly seated on light module (3). Disconnect plug connection.

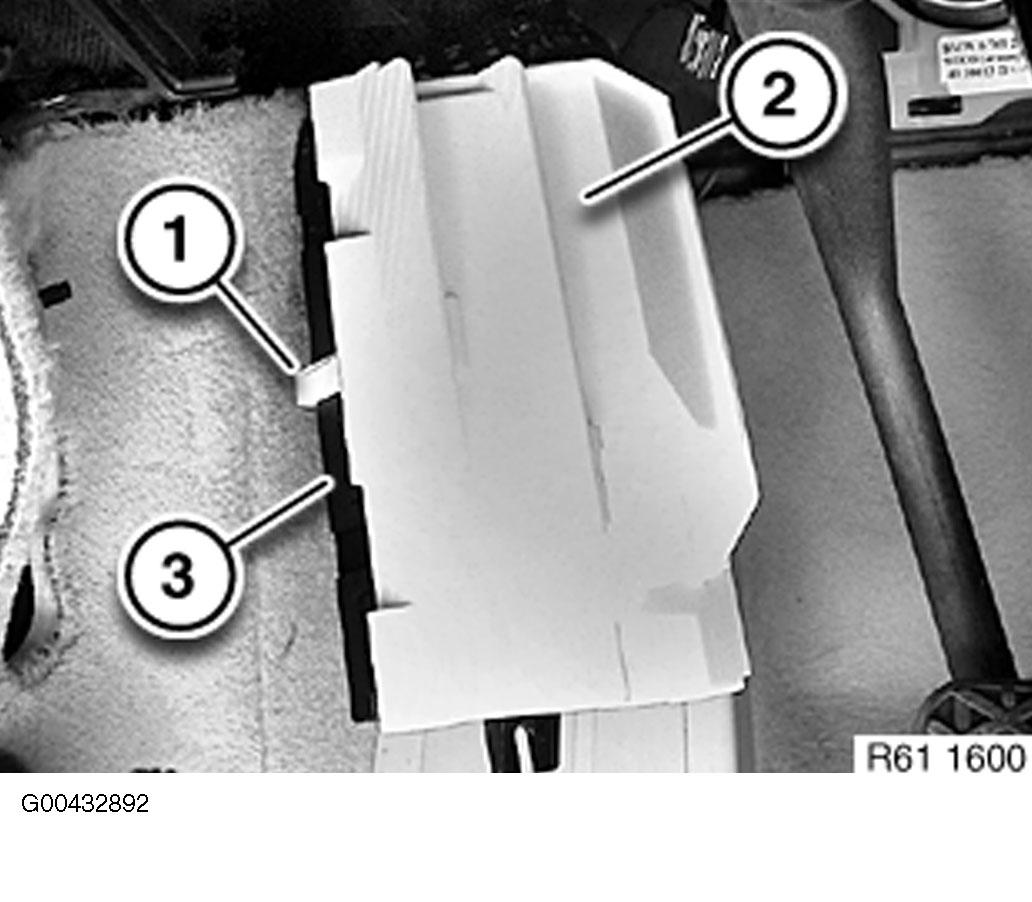

Fig 2: Ensuring Cover Is Correctly Seated On Module

Courtesy of BMW OF NORTH AMERICA, INC.

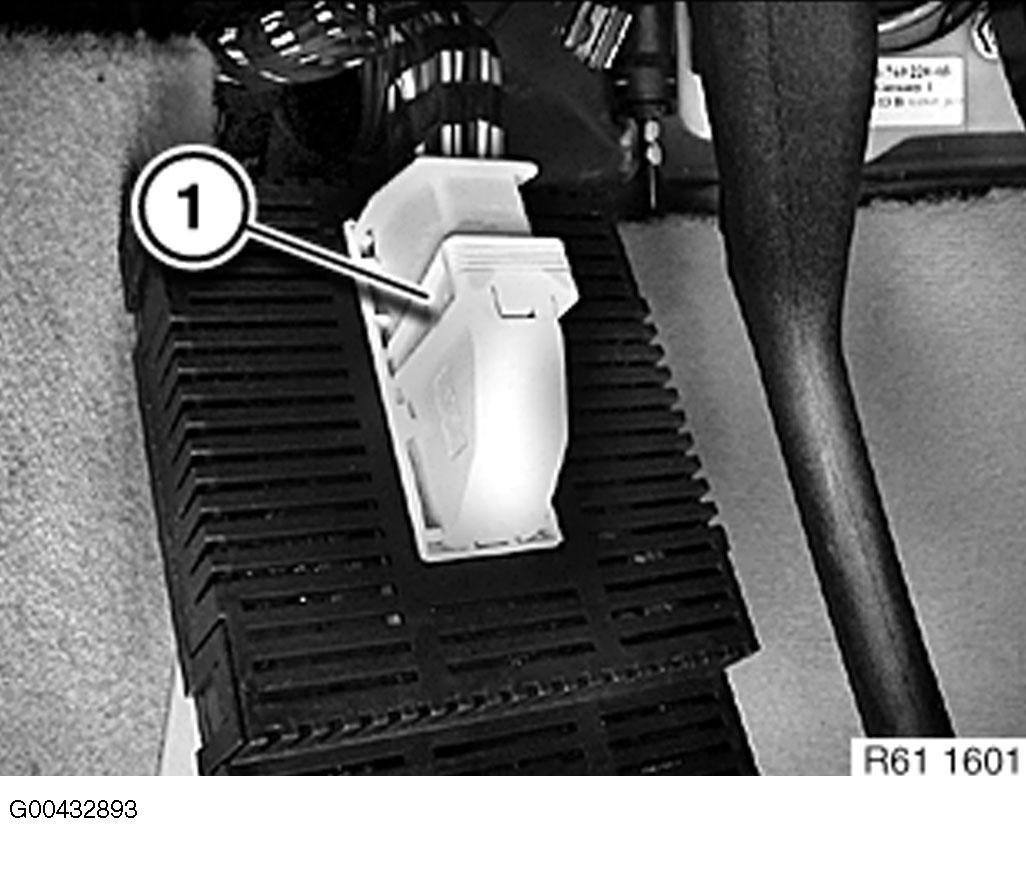

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING .
