61 35 015 Removing and installing (replacing) control unit for Car Access System

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove TRIM PANEL FOR PEDAL ASSEMBLY .

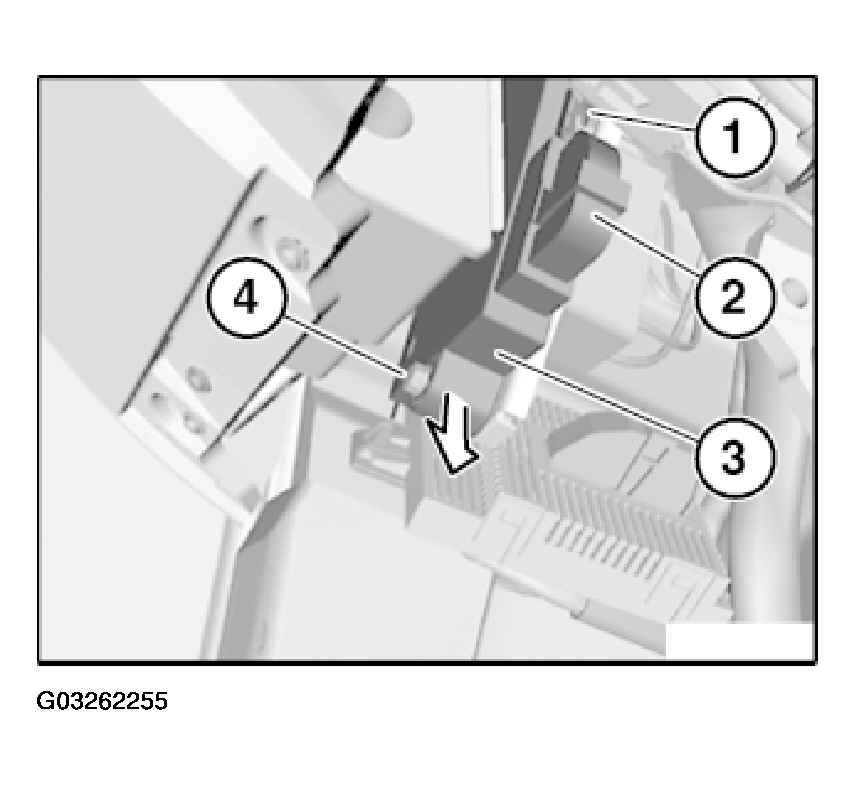

Unfasten plug connection (2) and disconnect.

IMPORTANT: Carefully unlock and disconnect associated plug connection for ribbon cable (1).

Replace ribbon cable (1) if:

Plug connection for ribbon cable (1) is damaged
Control unit for Car Access System (3) is replaced

The ribbon cable leads to the IGNITION STARTER SWITCH .

Release screw (4) and remove control unit for Car Access System (3) in direction of arrow.

Fig 1: Removing Control Unit For Car Access System

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

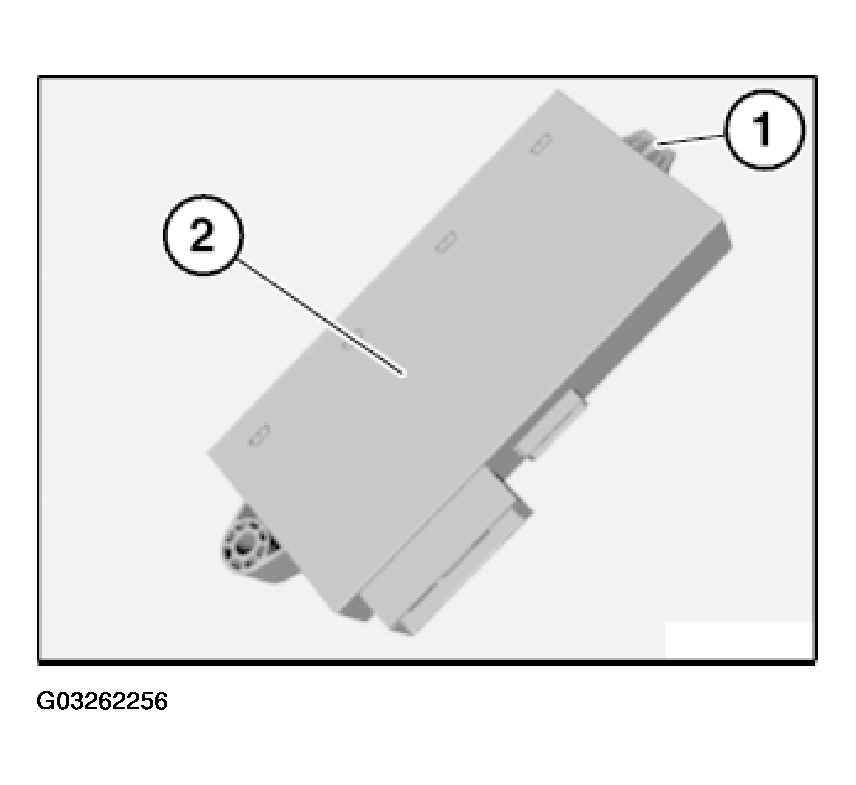

Feed guide (1) of control unit for Car Access System (2) correctly into associated mounting.

Fig 2: Installing Control Unit For Car Access System

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING .

Version with auxiliary heater:

Initialize all AUXILIARY HEATER REMOTE CONTROLS .
