32 43 010 Removing and installing / replacing control unit for active front steering
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Protect against electrostatic damage.
IMPORTANT:
Do not kink floor panelling under any circumstances!
After installation:
- Replacement only: Carry out CODING using BMW scan tool.
- Replacement/coding only: Carry out ACTIVE FRONT STEERING START-UP/ADJUSTMENT .
Necessary preliminary tasks:
- Remove RIGHT ENTRANCE STRIP .
- Remove RIGHT FRONT SEAT .
- Disconnect BATTERY NEGATIVE LEAD .
- If necessary, remove front right floor mat.
- Remove SIDE TRIM IN FRONT RIGHT FOOTWELL .
- Fold back front right floor trim.
- Remove kickplate in footwell in front of and next to control unit; if necessary, cut along specified lines with knife and secure later with adhesive tape.

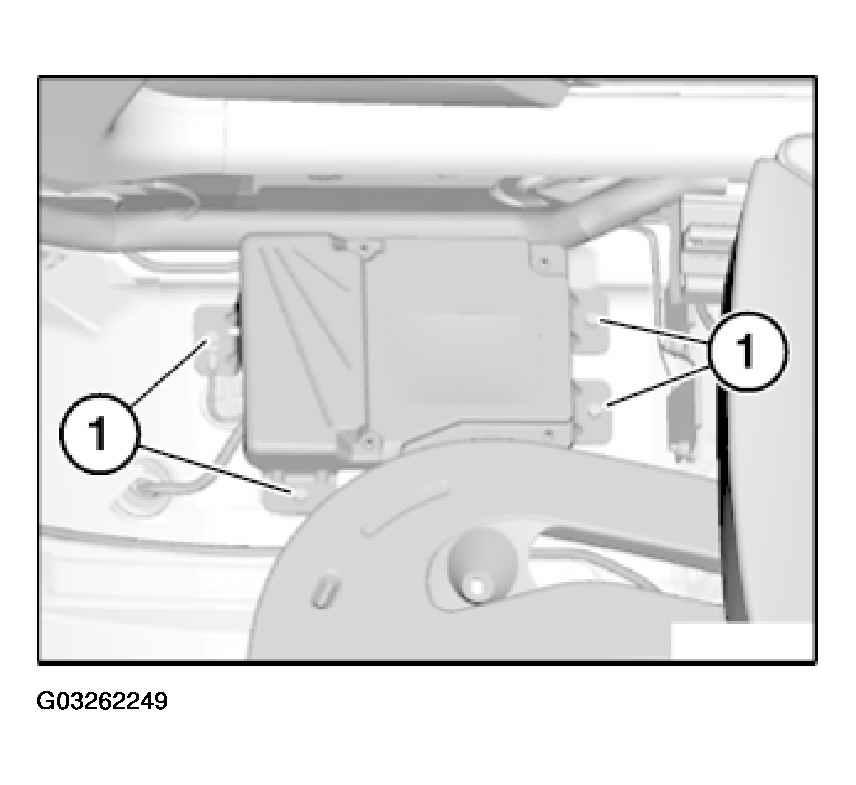

Release screws (1).
Lay grounding cable to one side.
Installation:
Secure grounding cable as illustrated to retaining plate.
Raise active front steering control unit and turn over.

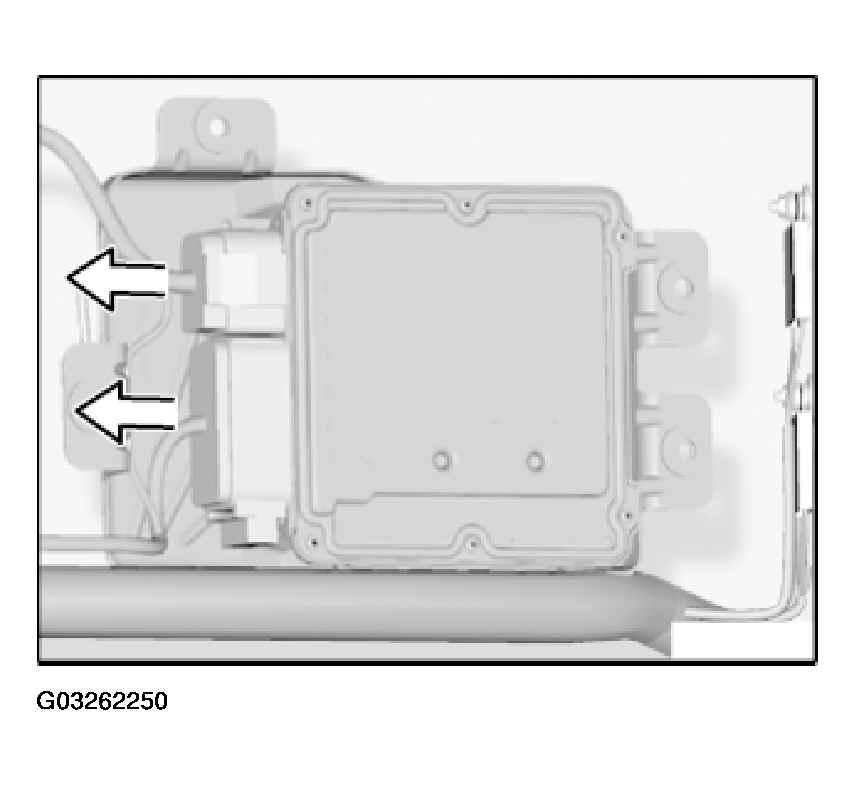

Unlock connector and remove.
Remove active front steering control unit.
